BU141R-TKMNS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,110,111,14#..RHD

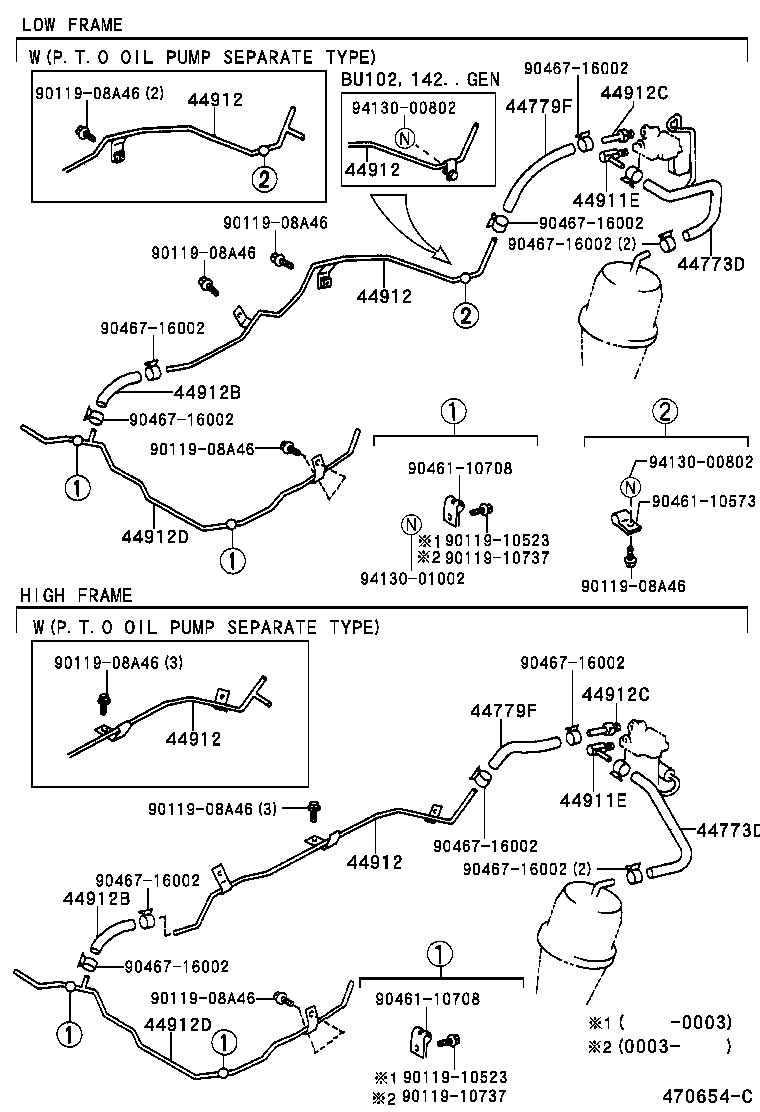

Click highlighted areas on diagram

diagram 44773D 44773D 44779F 44779F 44911E 44911E 44912 44912 44912 44912 44912 44912B 44912B 44912C 44912C 44912D 44912D 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011910523 9011910523 9011910737 9011910737 9046110573 9046110708 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9413000802 9413000802 9413001002
Part # Description Qty Price
44773D - HOSE, SOLENOIDO TO RETARDER
44773-37020

BU141..25T;BU101..CBU;BU101..ST..IV3;BU100,102,140,142;BU101..LHD..WT..IV3

 1
44773-37020

BU141..25T;BU10#,140,142..ARL,EUR,GEN

 1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-37020

BU141..25T;BU101..CBU;BU101..ST..IV3;BU100,102,140,142;BU101..LHD..WT..IV3

 1
44773-37020

BU141..25T;BU10#,140,142..ARL,EUR,GEN

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180

BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142

 1
95446-09180

BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180

BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142

 1
95446-09180

BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142

 1
90407-51002

BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142

 1
90407-51002

BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37050

BU101,140,141..RHD..WT..GEN

W(*EB)

 1
44765-37060

BU101,140,141..RHD..WT..(20T,25T)..GEN

W(*EB & P.T.O OIL PUMP SEPARATE TYPE)

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37050

BU101,140,141..RHD..WT..GEN

W(*EB)

 1
44765-37060

BU101,140,141..RHD..WT..(20T,25T)..GEN

W(*EB & P.T.O OIL PUMP SEPARATE TYPE)

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37050

BU101,140,141..RHD..WT..GEN

W(*EB)

 1
44765-37060

BU101,140,141..RHD..WT..(20T,25T)..GEN

W(*EB & P.T.O OIL PUMP SEPARATE TYPE)

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37050

BU101,140,141..RHD..WT..GEN

W(*EB)

 1
44765-37060

BU101,140,141..RHD..WT..(20T,25T)..GEN

W(*EB & P.T.O OIL PUMP SEPARATE TYPE)

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37050

BU101,140,141..RHD..WT..GEN

W(*EB)

 1
44765-37060

BU101,140,141..RHD..WT..(20T,25T)..GEN

W(*EB & P.T.O OIL PUMP SEPARATE TYPE)

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
95446-09230

BU141..RHD..25T;BU100,101,140,142..RHD..DSL..(ARL,GEN)

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
95446-09230

BU141..RHD..25T;BU100,101,140,142..RHD..DSL..(ARL,GEN)

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142

 1
90404-51319

BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU141..25T;BU101..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,102,11#,140,142

 1
90404-51319

BU141..25T;BU10#,11#,140,142..ARL,EUR,GEN

 1
44912D - TUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)
44912-37160

BU101..RHD..GEN;BU100,14#..RHD..DSL

W(EXHAUST BRAKE)

 1
44764-37080

BU101,140,141..RHD..(GEN,SA)

 1
44912D - TUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)
44912-37160

BU101..RHD..GEN;BU100,14#..RHD..DSL

W(EXHAUST BRAKE)

 1
44764-37080

BU101,140,141..RHD..(GEN,SA)

 1
Common parts
90119-08A46
90119-10523
90119-10737
90461-10573
90461-10708
90467-16002
94130-00802
94130-01002
