BU112L-TDMMSU3 (1995)

Toyota Dyna200

Production May 1995 - Mar 1997
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU100..175T..GEN ; (9505- )DM1,DM6,DM7,T1,T2,T3,T4

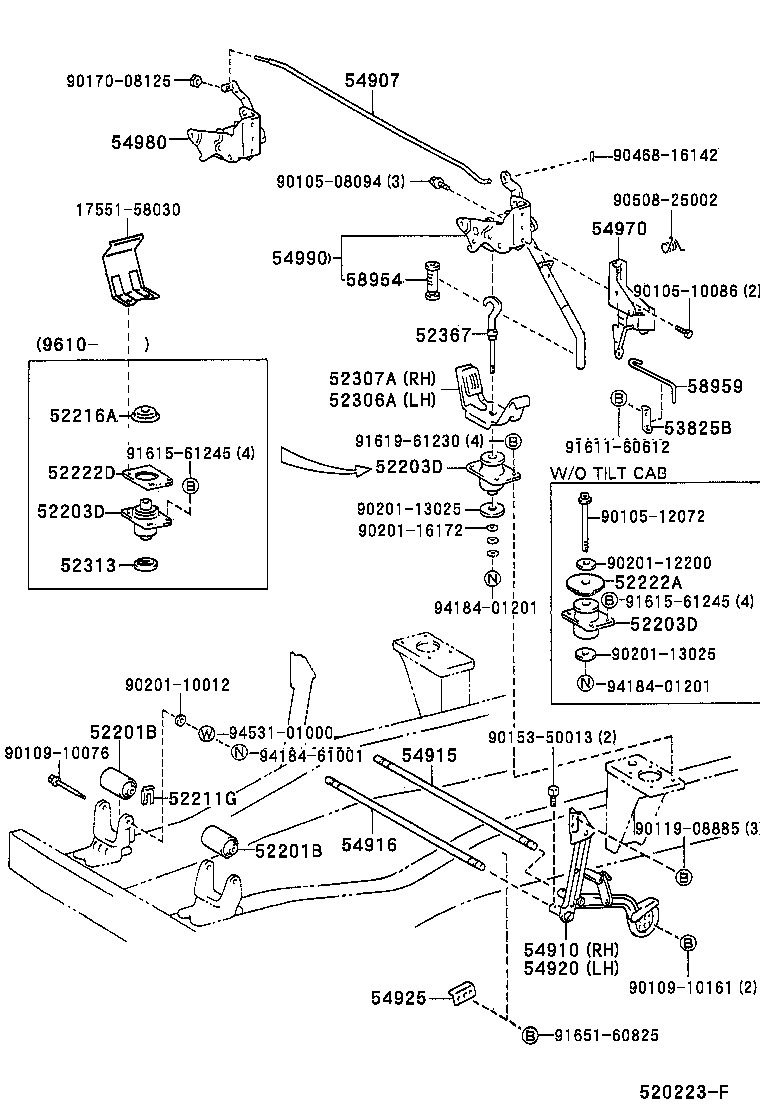

Click highlighted areas on diagram

diagram 1755158030 52201B 52201B 52203D 52203D 52203D 52211G 52216A 52222A 52222D 52306A 52307A 52313 52367 53825B 54907 54910 54915 54916 54920 54925 54970 54980 54990 58954 58959 9010508094 9010510086 9010512072 9010910076 9010910161 9011908885 9015350013 9017008125 9020110012 9020112200 9020113025 9020113025 9020116172 9046816142 9050825002 9161160612 9161561245 9161561245 9161961230 9165160825 9418401201 9418401201 9418461001 9453101000
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37020

BU10#,11#,14#,RZU100

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37020

BU10#,11#,14#,RZU100

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU212..ARL;BU10#,11#,14#,RZU100

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU212..ARL;BU10#,11#,14#,RZU100

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU212..ARL;BU10#,11#,14#,RZU100

 2
52211G - SPACER, CAB FRONT MOUNTING
52211-36020

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1
52306-36020

BU10#,11#,14#,21#,22#,YU210..DM1,DM6,T1,T2,T3

 1
52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2
52307-36020

BU10#,11#,14#,21#,22#,YU210..DM1,DM6,T1,T2,T3

 1
52367 - HOOK, CAB REAR MOUNTING
52367-36030

BU211,212,221,222,YU210..T3;BU10#,11#,14#,213,223,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4)..(ARL,EUR,GEN,TAIW)

 2
54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING
54907-95400

BU101..WT..CBU;BU101,111..LHD..IV3;BU140,141..RHD..25T;BU100,102,110,112,140,142..(DM1,T2,T3)..(ARL,EUR,TAIW)

 1
54910 - ARM ASSY, TILT CAB SPRING SUPPORT, RH
54910-37021

BU10#,111,112,140,142,RZU100..LHD..(DM1,DM6,DM7,T2,T3,T4)

 1
54910-37020

BU10#,111,112,140,142..LHD..(20T,25T,30T)

 1
54915 - SPRING, TILT CAB, NO.1
54915-37040

BU102,112,140,142..EUR,TAIW

 1
54915-37041

BU102,112..DSL;BU140,142..T3..EUR

 1
54916 - SPRING, TILT CAB, NO.2
54916-37031

BU102,112..DSL;BU140,142..T3..EUR

 1
54916-37030

BU102,112,140,142..EUR,TAIW

 1
54920 - ARM ASSY, TILT CAB SPRING SUPPORT, LH
54920-37030

BU10#,111,112,140,142..LHD..(20T,25T,30T)

 1
54920-37031

BU10#,111,112,140,142,RZU100..LHD..(DM1,DM6,DM7,T2,T3,T4)

 1
54925 - RETAINER, TILT CAB SPRING
54925-37020

BU10#,14#,21#,22#,RZU100,YU210

RH

 1
54926-37010

BU10#,14#,21#,22#,RZU100,YU210

LH

 1
54970 - LATCH ASSY, TILT CAB STOPPER
54970-95400

BU101..T3..CBU;BU101..ARL..IV3;BU101..LHD..IV3;BU141..RHD..25T..GEN;BU100,102,11#,140,142,RZU100..DM1,DM6,DM7,T2,T3,T4

 1
54980 - LOCK ASSY, TILT CAB MOUNTING, RH
54980-95401

BU212,222..LHD;BU100,102,110,112,140,142..(DM1,T2,T3)..(ARL,EUR,TAIW)

W(FRONT SEAT BELT=ELR & TILT CAB)

 1
54990 - LOCK ASSY, TILT CAB MOUNTING, LH
54990-95403

BU101..WT..CBU;BU101,111..LHD..IV3;BU140,141..RHD..25T;BU100,102,110,112,140,142..(DM1,T2,T3)..(ARL,EUR,TAIW)

 1
58954 - COVER, REAR LOCK HANDLE GRIP
58954-95400

BU140..EUR;BU101..WT..CBU;BU101,111..LHD..IV3;BU100,140,141..RHD..(20T,25T);BU102,110,112,142,21#,22#,YU210..DM1,T2,T3

 1
Common parts
17551-58030
90105-08094
90105-10086
90105-12072
90109-10076
90109-10161
90119-08885
90153-50013
90170-08125
90201-10012
90201-12200
90201-13025
90201-16172
90468-16142
90508-25002
91611-60612
91615-61245
91619-61230
91651-60825
94184-01201
94184-61001
94531-01000
