BU112L-TDMMSU3 (1995)
Toyota Dyna200
ILLUST NO. 1 OF 2(9505- )BU142..ARL,EUR ; (9505- )BU100..ST..IV3 ; (9505- )BU212..TD..IV3 ;

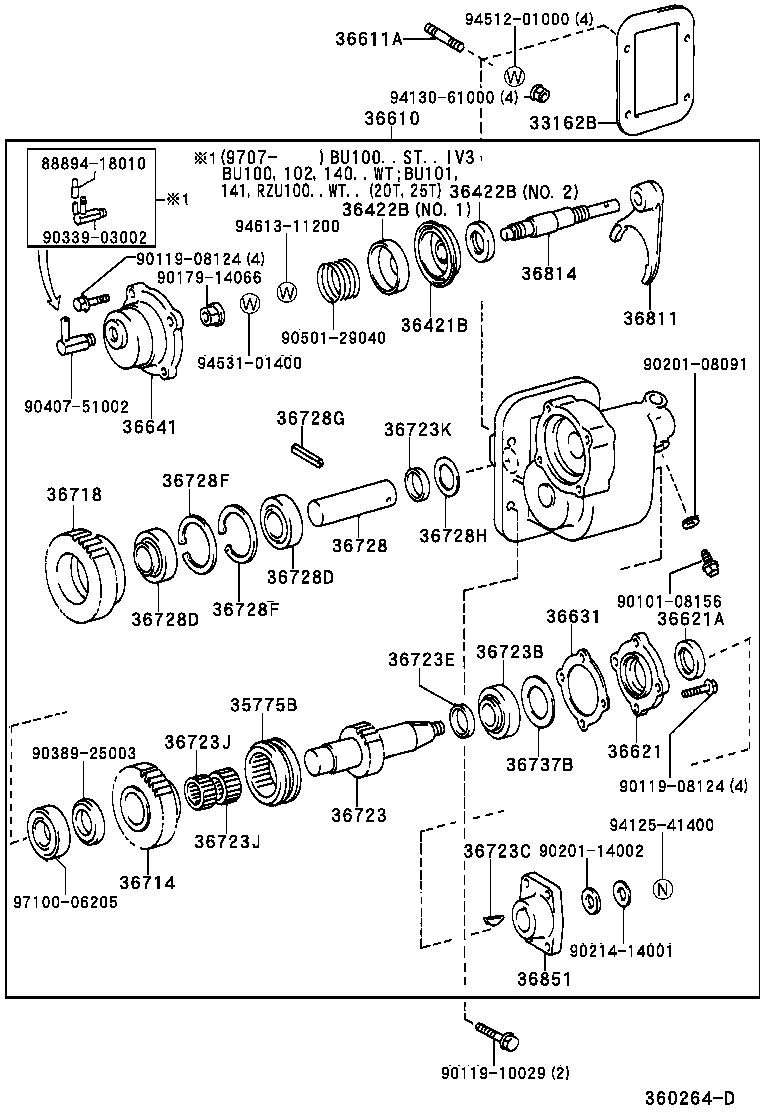

SEPARATE TYPE VACUUM P.T.O
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-96300 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,11#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 33162-96300 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,11#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 33162-96300 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,11#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-93100 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 35775-93100 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 35775-93100 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-93125 |
BU111,112..20T..IV3 |
1 | ||
| 36610-93125 |
BU111,112..20T..IV3 |
1 | ||
| 36610-93125 |
BU111,112..20T..IV3 |
1 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10103 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
4 | ||
| 90116-10103 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
4 | ||
| 90116-10103 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
4 | ||
| 90116-10103 |
BU111,112..IV3 |
3 | ||
| 90116-10103 |
BU111,112..IV3 |
3 | ||
| 90116-10103 |
BU111,112..IV3 |
3 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36621-93200 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36621-93200 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 90311-25110 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 90311-25110 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93200 |
BU111,112..IV3 |
1 | ||
| 36632-93200 |
BU111,112..IV3 |
1 | ||
| 36632-93200 |
BU111,112..IV3 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93101 |
BU111,112..IV3 |
1 | ||
| 36714-93101 |
BU111,112..IV3 |
1 | ||
| 36714-93101 |
BU111,112..IV3 |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93107 |
BU111,112..20T..IV3 |
1 | ||
| 36718-93107 |
BU111,112..20T..IV3 |
1 | ||
| 36718-93107 |
BU111,112..20T..IV3 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93101 |
BU111,112..IV3 |
1 | ||
| 36723-93101 |
BU111,112..IV3 |
1 | ||
| 36723-93101 |
BU111,112..IV3 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06205 |
BU111,112..IV3 |
1 | ||
| 97100-06205 |
BU111,112..IV3 |
1 | ||
| 97100-06205 |
BU111,112..IV3 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 90280-07011 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 90280-07011 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 90560-25001 |
BU111,112..IV3 FR |
1 | ||
| 90560-25001 |
BU111,112..IV3 FR |
1 | ||
| 90560-25001 |
BU111,112..IV3 FR |
1 | ||
| 90560-25002 |
BU111,112..IV3 RR |
1 | ||
| 90560-25002 |
BU111,112..IV3 RR |
1 | ||
| 90560-25002 |
BU111,112..IV3 RR |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90364-28020 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90364-28020 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90364-28020 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90364-28020 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90387-25009 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90387-25009 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90387-25009 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93101 |
BU111,112..IV3 |
1 | ||
| 36728-93101 |
BU111,112..IV3 |
1 | ||
| 36728-93101 |
BU111,112..IV3 |
1 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90521-56108 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90521-56108 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90521-56108 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90521-56108 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90254-04002 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90254-04002 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93101 |
BU111,112..IV3 |
1 | ||
| 36811-93101 |
BU111,112..IV3 |
1 | ||
| 36811-93101 |
BU111,112..IV3 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93110 |
BU111,112..IV3 |
1 | ||
| 36814-93110 |
BU111,112..IV3 |
1 | ||
| 36814-93110 |
BU111,112..IV3 |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-93200 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36851-93200 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36851-93200 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| Common parts | ||||
| 88894-18010 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10029 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 90339-03002 | ||||
| 90389-25003 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 94125-41400 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| 94613-11200 | ||||
| 97100-06205 | ||||
(9505- )BU101,141..WT..20T,25T..GEN ; (9505-)BU100,111,112,140..WT..GEN,TAIW

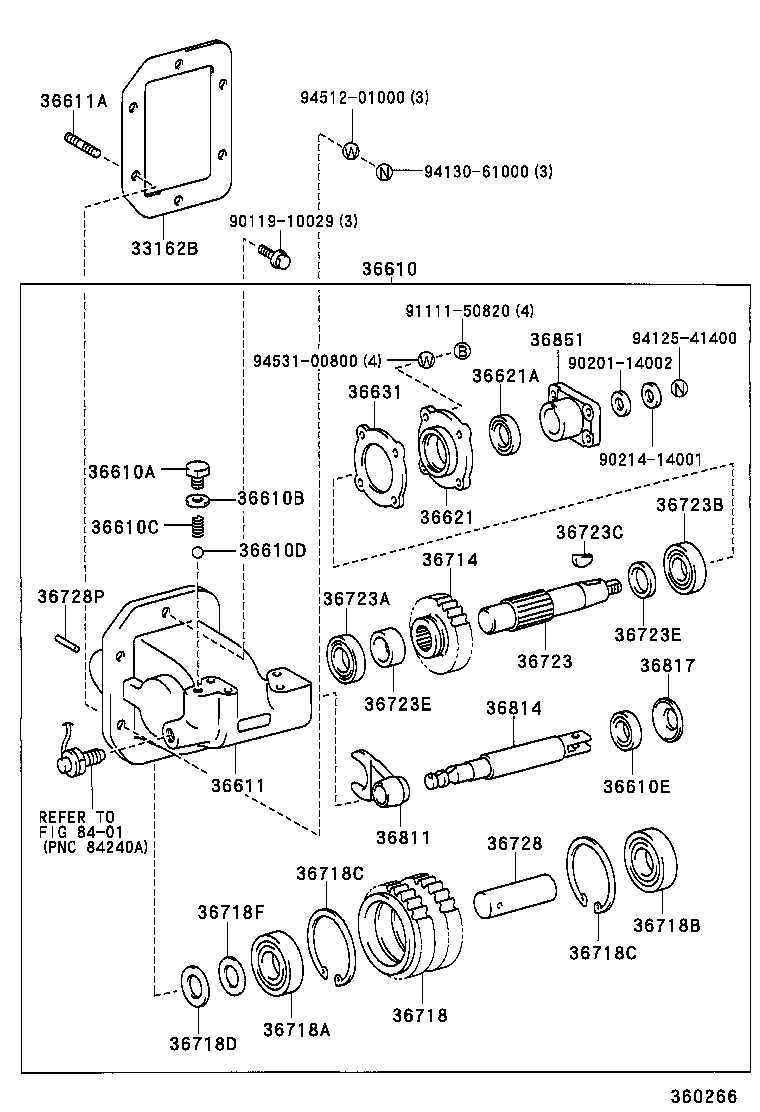

SEPARATE TYPE MANUAL LEVER P.T.O
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-96300 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,11#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-93125 |
BU111,112..20T..IV3 |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90103-12002 |
BU111,112..IV3 |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
BU111,112..IV3 T=0.5 |
1 | ||
| 90430-12006 |
BU111,112..IV3 T=1.0 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90501-14056 |
BU111,112..IV3 |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
BU111,112..IV3 |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-22004 |
BU111,112..IV3 |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-93106 |
BU111,112..20T..IV3 |
1 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10103 |
BU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
4 | ||
| 90116-10103 |
BU111,112..IV3 |
3 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93200 |
BU111,112..IV3 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93101 |
BU111,112..IV3 |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93107 |
BU111,112..20T..IV3 |
1 | ||
| 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) | ||||
| 90366-22001 |
BU141..LHD;BU111,112..IV3;BU100,101,140..WT..(20T,25T)..GEN |
1 | ||
| 36718B - BEARING(FOR POWER TAKE-OFF IDLER GEAR REAR) | ||||
| 90366-22001 |
BU111,112..IV3 |
1 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90521-56108 |
BU111,112..IV3 |
2 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90521-56108 |
BU111,112..IV3 |
2 | ||
| 36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90387-25002 |
BU111,112..IV3 |
1 | ||
| 36718F - SPACER, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-93101 |
BU141..LHD;BU111,112..IV3;BU100,101,140..WT..(20T,25T)..GEN |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93101 |
BU111,112..IV3 |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90363-25001 |
BU111,112..IV3 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06205 |
BU111,112..IV3 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 90560-25001 |
BU111,112..IV3 FR |
1 | ||
| 90560-25002 |
BU111,112..IV3 RR |
1 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 90560-25001 |
BU111,112..IV3 FR |
1 | ||
| 90560-25002 |
BU111,112..IV3 RR |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93101 |
BU111,112..IV3 |
1 | ||
| 36728P - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
BU141..LHD;BU111,112..IV3;BU100,101,140..WT..(20T,25T)..GEN |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93101 |
BU111,112..IV3 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93110 |
BU111,112..IV3 |
1 | ||
| 36817 - COVER, POWER TAKE-OFF SHAFT | ||||
| 36817-93101 |
BU141..LHD;BU111,112..IV3;BU100,101,140..WT..(20T,25T)..GEN |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-93200 |
RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN |
1 | ||
| Common parts | ||||
| 90119-10029 | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 91111-50820 | ||||
| 94125-41400 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

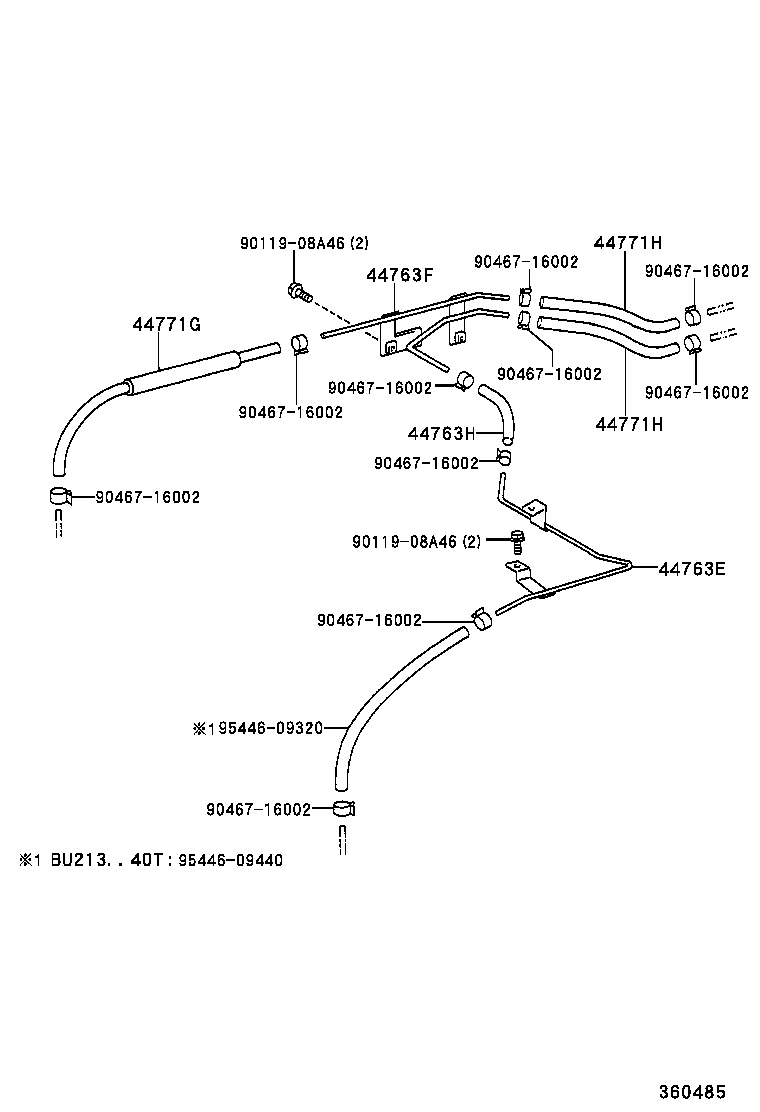

ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU222..ARL ; (9505- )BU212..TD..IV3 ; (9505-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37051 |
BU212..ARL,GEN;BU100..ST..IV3;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37070 |
BU10#,14#..WT;BU100..ST..IV3 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90467-16002 | ||||
| 95446-09320 | ||||
| 95446-09440 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
