BU111R-TDMMS (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU110,111

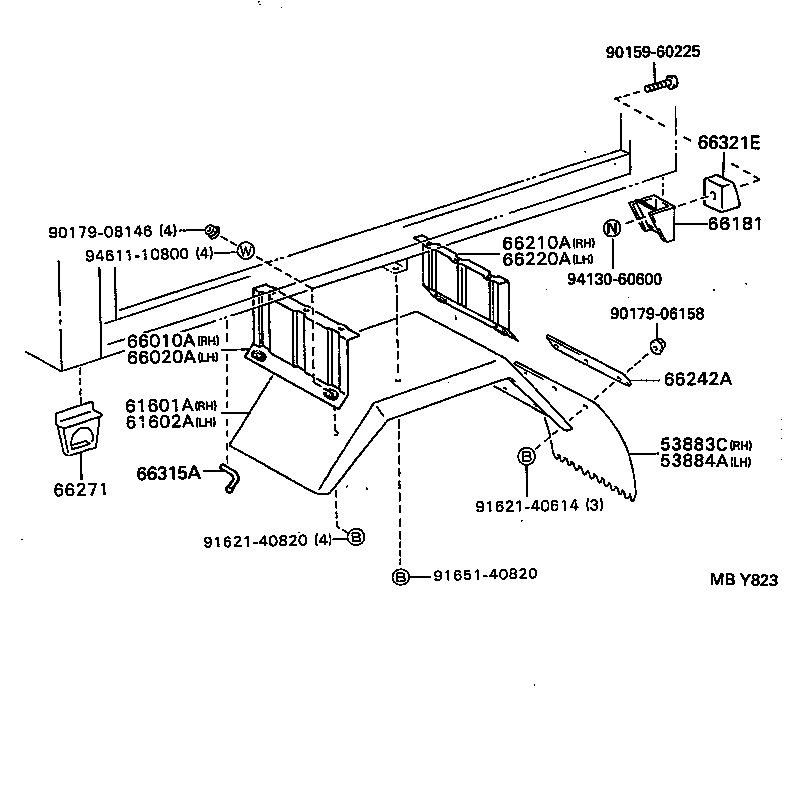

Click highlighted areas on diagram

diagram 53883C 53884A 61601A 61602A 66010A 66020A 66181 66210A 66220A 66242A 66271 66315A 66321E 9015960225 9017906158 9017908146 9162140614 9162140820 9165140820 9413060600 9461110800
Part # Description Qty Price
53883C - MUDGUARD, FENDER, RH
53884-93106

BU110,111..CBU

 1
53884-93103

BU110,111..CBU

 1
53884A - MUDGUARD, FENDER, LH
53884-93103

BU110,111..CBU

 1
53884-93106

BU110,111..CBU

 1
61601A - FENDER SUB-ASSY, REAR, RH
61601-93100

BU110,111..CBU

 1
61602A - FENDER SUB-ASSY, REAR, LH
61602-93100

BU110,111..CBU

 1
66010A - FENDER ASSY, REAR NO.2 RH
66237-93103

BU110,111..CBU

 1
66020A - FENDER ASSY, REAR NO.2 LH
66237-93103

BU110,111..CBU

 1
66181 - BRACKET, TAIL GATE STOPPER
66181-93101

BU110,111..CBU

 2
66210A - FENDER ASSY, REAR NO.1 RH
66237-93103

BU110,111..CBU

 1
66220A - FENDER ASSY, REAR NO.1 LH
66237-93103

BU110,111..CBU

 1
66242A - PLATE, BAFFLE RUBBER
66332-93103

BU110,111..CBU

 2
66271 - STEP, REAR BODY
66271-93100

BU110,111..CBU

 1
66315A - HOOK, ROPE
66311-93105

BU110,111..CBU

 8
66321E - BUMPER, GATE RUBBER
66321-93103

BU110,111..CBU

 4
Common parts
90159-60225
90179-06158
90179-08146
91621-40614
91621-40820
91651-40820
94130-60600
94611-10800
