BU111L-TYMMS3 (1995)
Toyota Dyna200

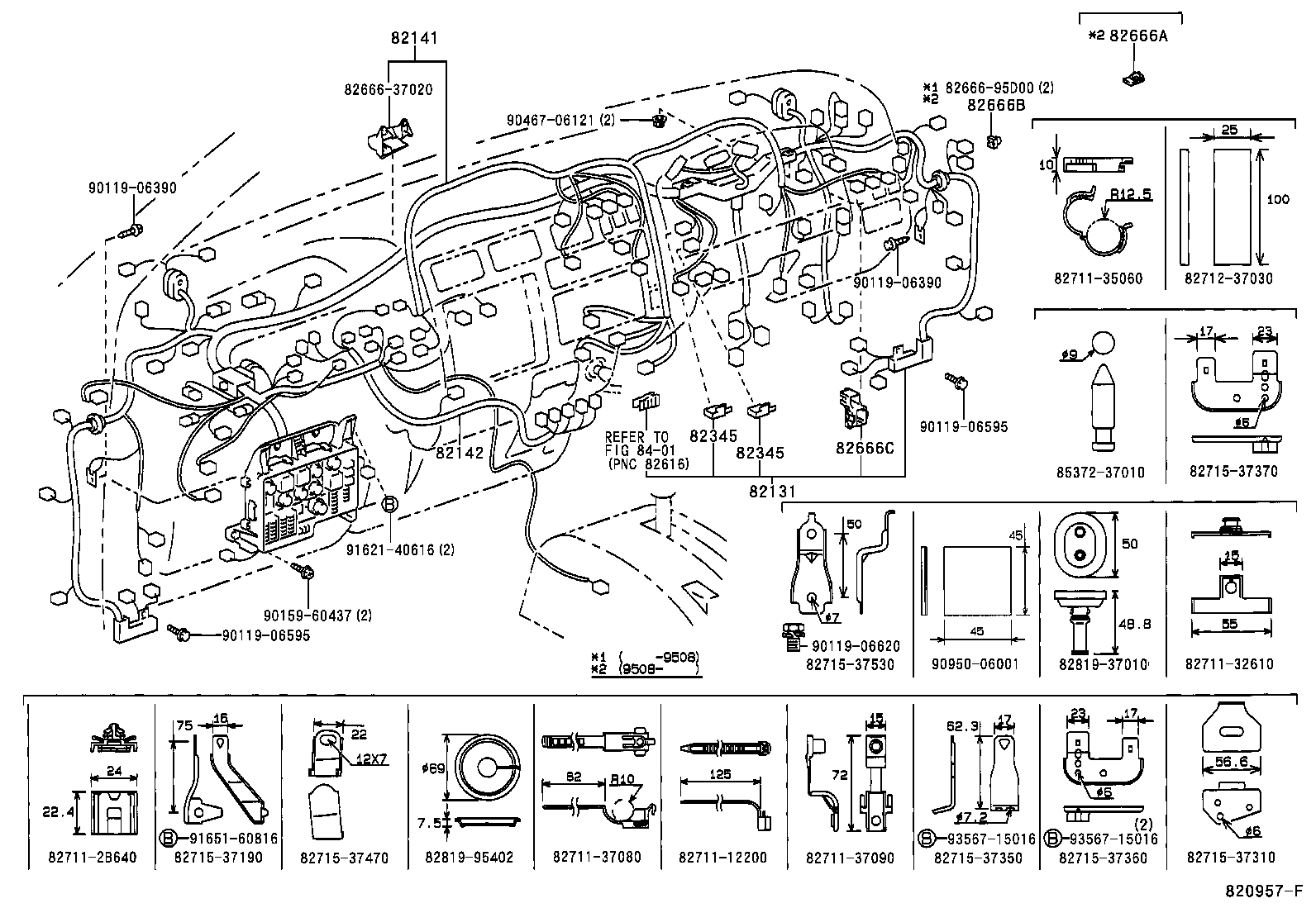

ILLUST NO. 3 OF 6(9505- )
COWL, INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-37742 |
BU111..IV3 |
1 | ||
| 82135-37743 |
BU111..IV3 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-37080 |
BU111..IV3 |
1 | ||
| 82141-37081 |
BU111..IV3 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-37050 |
BU100..ST..IV3;BU10#,14#..LHD..WT |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
RZU100..15T;BU10#,111,112,140,141..DSL..(GEN,SA,TAIW) |
2 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
RZU100..15T;BU10#,111,112,140,141..DSL..(GEN,SA,TAIW) |
2 | ||
| Common parts | ||||
| 82666-37020 | ||||
| 82666-95D00 | ||||
| 82711-12200 | ||||
| 82711-2B640 | ||||
| 82711-32610 | ||||
| 82711-35060 | ||||
| 82711-37080 | ||||
| 82711-37090 | ||||
| 82712-37030 | ||||
| 82715-37190 | ||||
| 82715-37310 | ||||
| 82715-37350 | ||||
| 82715-37360 | ||||
| 82715-37370 | ||||
| 82715-37470 | ||||
| 82715-37530 | ||||
| 82819-37010 | ||||
| 82819-95402 | ||||
| 85372-37010 | ||||
| 90119-06390 | ||||
| 90119-06595 | ||||
| 90119-06620 | ||||
| 90159-60437 | ||||
| 90467-06121 | ||||
| 90950-06001 | ||||
| 91621-40616 | ||||
| 91651-60816 | ||||
| 93567-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

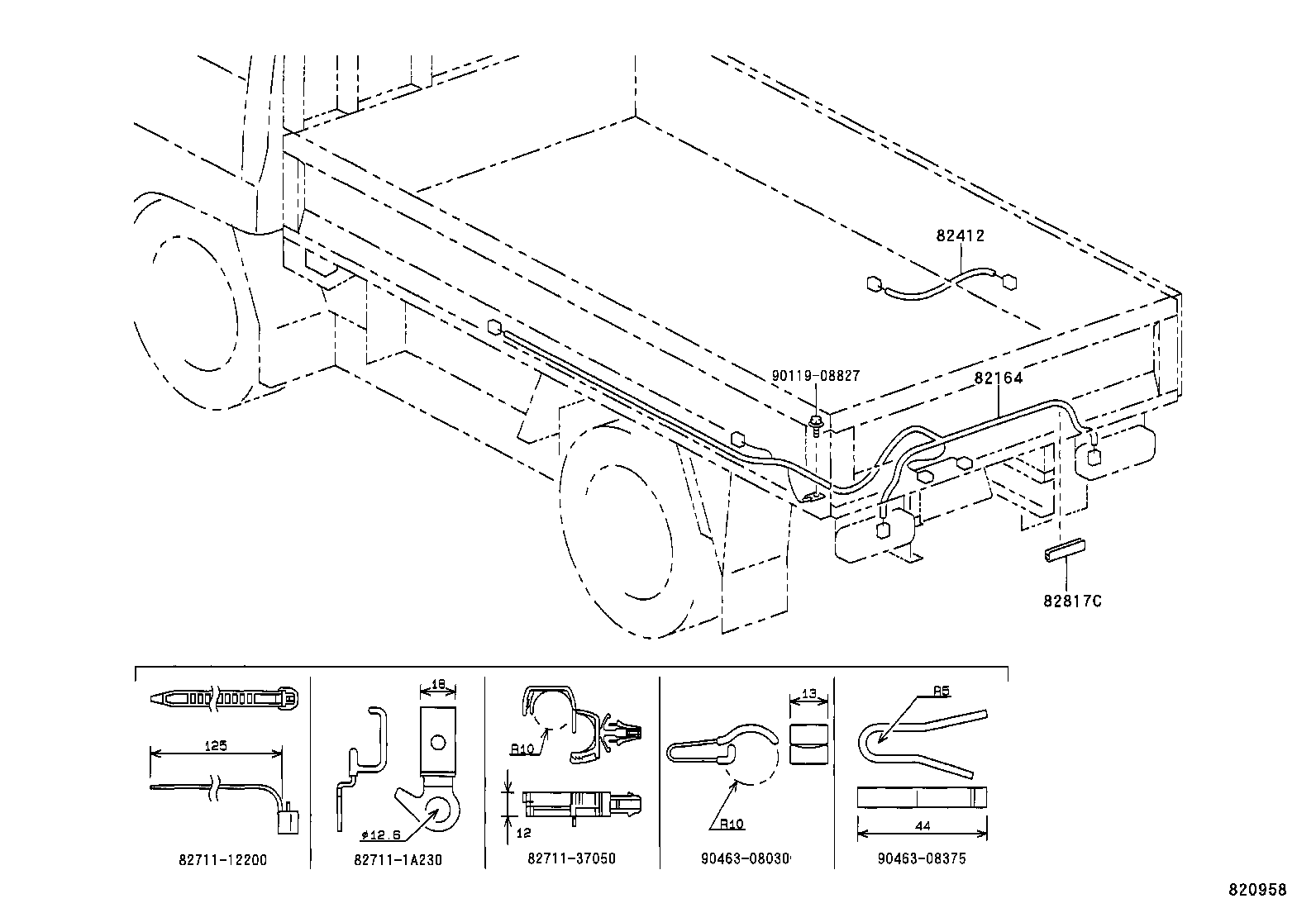

ILLUST NO. 4 OF 6(9505- )
BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-37240 |
BU111..IV3 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-1A230 | ||||
| 82711-37050 | ||||
| 90119-08827 | ||||
| 90463-08030 | ||||
| 90463-08375 | ||||

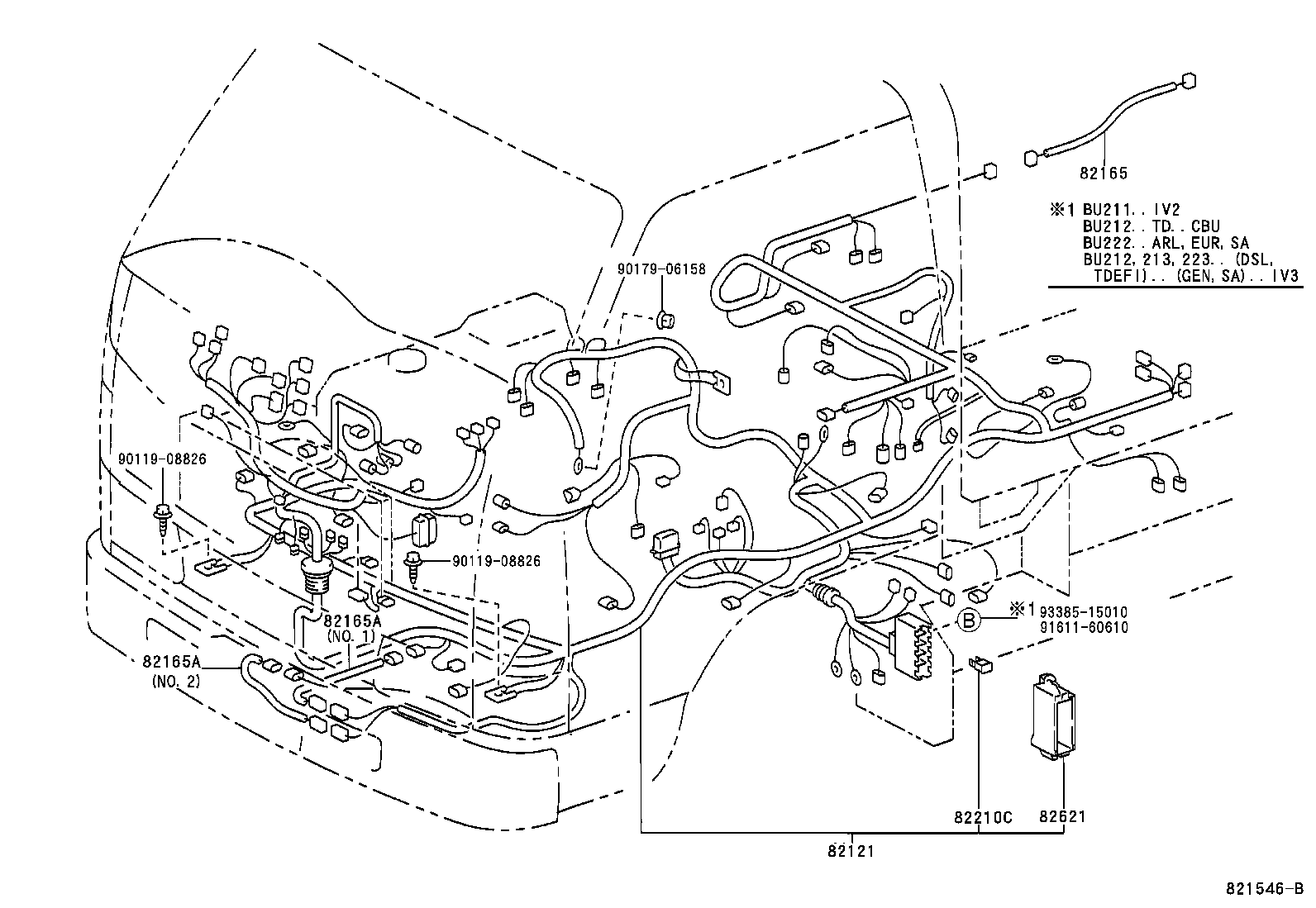

ILLUST NO. 1 OF 6(9505- )BU101,102,111,112,141,142,21#,22#,YU210
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82126-37622 |
BU111..IV3 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
BU10#,11#,14#,21#,22#,YU210 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08188 |
BU100,222..WT..GEN;BU212..RHD..GEN..IV3;BU100,212..LHD..(175T,30T);BU102,111,112,140,141,211..LHD..(DM1,DM6,DM7,T2,T3) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08228 |
BU100..175T..GEN;BU211..RHD..40T..GEN..(IV2,IV3);BU100,111,140,141..LHD..(DM6,T3)..WT 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
BU100..175T..GEN;BU100,111,140,141..LHD..(DM6,T3)..WT 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
BU100..175T..GEN;BU102,142,212..RHD..GEN..IV3;BU211..RHD..40T..GEN..(IV2,IV3);BU100,111,140,141..LHD..(DM6,T3)..WT 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
BU111..RHD;BU100..175T..GEN;BU100,111,140,141..LHD..(DM6,T3)..WT..GEN;BU101,211,221..RHD..WT..(20T,40T)..GEN..IV3 50A,TERM.:MALE,RED |
1 | ||
| 90982-08202 |
BU10#,11#,14#,211,212,221,222,YU210..(ARL,EUR,GEN,SA)..(CBU,IV3) 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08188 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111,222..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08188 |
BU211..LHD..T3..30T;BU211..LHD..40T..CBU;BU212..RHD..GEN..IV3;BU211..40T..(IV2,IV3);BU101..LHD..WT..IV3..TS;BU101,141,221..LHD..(175T,25T,40T);BU102,111,142,213,223..(20T,30T,40T)..GEN..IV3 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08188 |
BU212..30T..TD..IV3;BU212..RHD..GEN..IV3;BU212..DSL..GEN..IV3;BU211..40T..GEN..(IV2,IV3);BU100,101,211..LHD..(175T,40T)..CBU;BU100,140,141,211..LHD..T3..WT..(20T,25T,30T);BU102,111,112,142,213,222,223..(15T,20T,30T,40T)..GEN..IV3 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
BU212..DSL;BU212..LHD;BU212..TD..CBU;BU10#,111,14#,211,221,222,YU210..CBU,IV3 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08188 |
BU211..LHD..T3..30T;BU211..LHD..40T..CBU;BU211..40T..(IV2,IV3);BU101..LHD..WT..IV3..TS;BU101,141,221..LHD..(175T,25T,40T);BU102,111,142,213,223..(20T,30T,40T)..GEN..IV3 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08228 |
BU141..LHD;BU101..LHD..WT..IV3..TS;BU102,111,142..(20T,30T)..GEN..IV3;BU211,212..RHD..40T..GEN..(IV2,IV3) 50A,TERM.:MALE,RED |
1 | ||
| Common parts | ||||
| 90119-08826 | ||||
| 90179-06158 | ||||
| 91611-60610 | ||||
| 93385-15010 | ||||

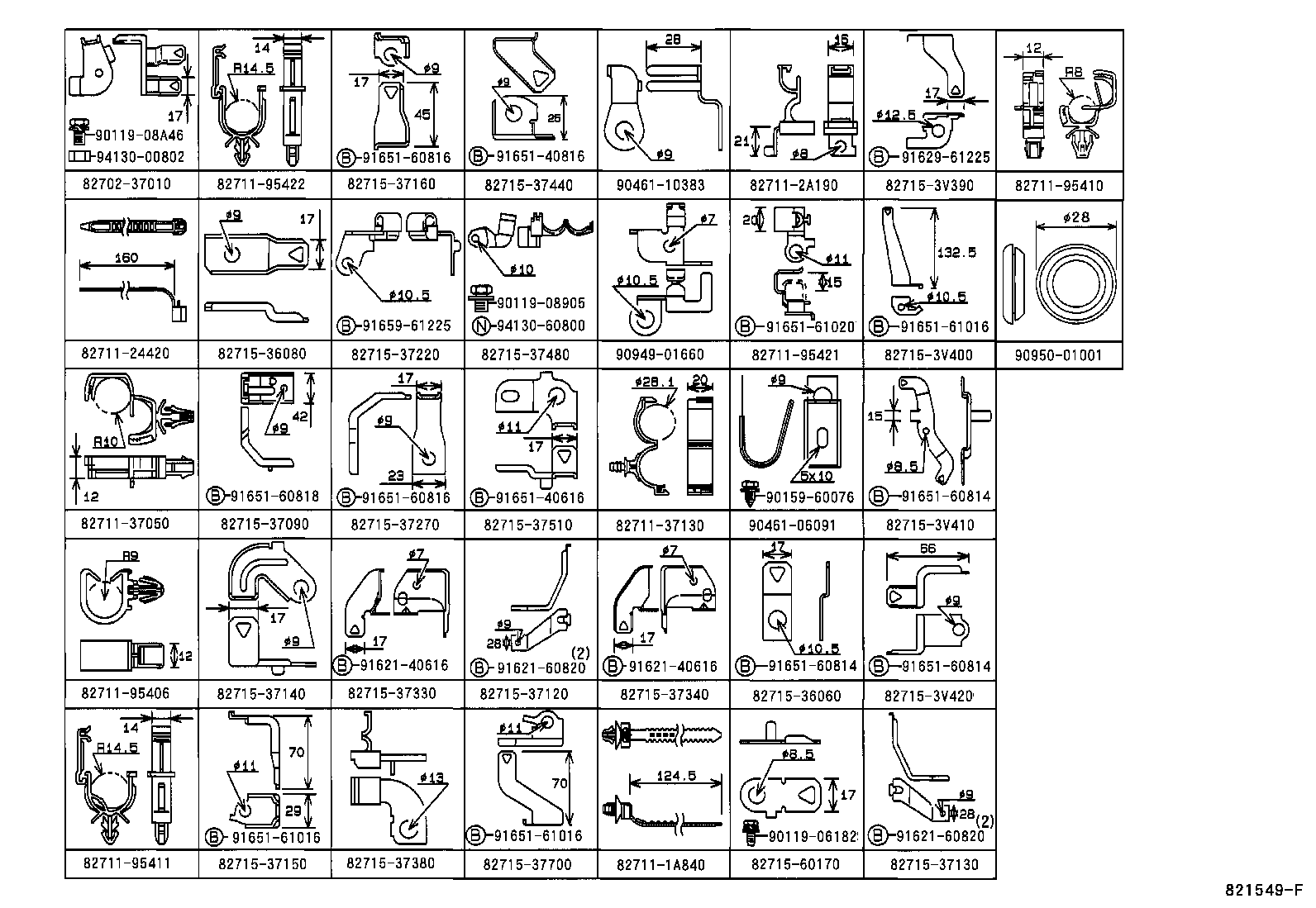

ILLUST NO. 5 OF 6(9505- )BU101,102,111,112,141,142,21#,22#,YU210
ENGINE ROOM WIRE CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37010 | ||||
| 82711-1A840 | ||||
| 82711-24420 | ||||
| 82711-2A190 | ||||
| 82711-37050 | ||||
| 82711-37130 | ||||
| 82711-95406 | ||||
| 82711-95410 | ||||
| 82711-95411 | ||||
| 82711-95421 | ||||
| 82711-95422 | ||||
| 82715-36060 | ||||
| 82715-36080 | ||||
| 82715-37090 | ||||
| 82715-37120 | ||||
| 82715-37130 | ||||
| 82715-37140 | ||||
| 82715-37150 | ||||
| 82715-37160 | ||||
| 82715-37220 | ||||
| 82715-37270 | ||||
| 82715-37330 | ||||
| 82715-37340 | ||||
| 82715-37380 | ||||
| 82715-37440 | ||||
| 82715-37480 | ||||
| 82715-37510 | ||||
| 82715-37700 | ||||
| 82715-3V390 | ||||
| 82715-3V400 | ||||
| 82715-3V410 | ||||
| 82715-3V420 | ||||
| 82715-60170 | ||||
| 90119-06182 | ||||
| 90119-08905 | ||||
| 90119-08A46 | ||||
| 90159-60076 | ||||
| 90461-06091 | ||||
| 90461-10383 | ||||
| 90949-01660 | ||||
| 90950-01001 | ||||
| 91621-40616 | ||||
| 91621-60820 | ||||
| 91629-61225 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 91651-60816 | ||||
| 91651-60818 | ||||
| 91651-61016 | ||||
| 91651-61020 | ||||
| 91659-61225 | ||||
| 94130-00802 | ||||
| 94130-60800 | ||||

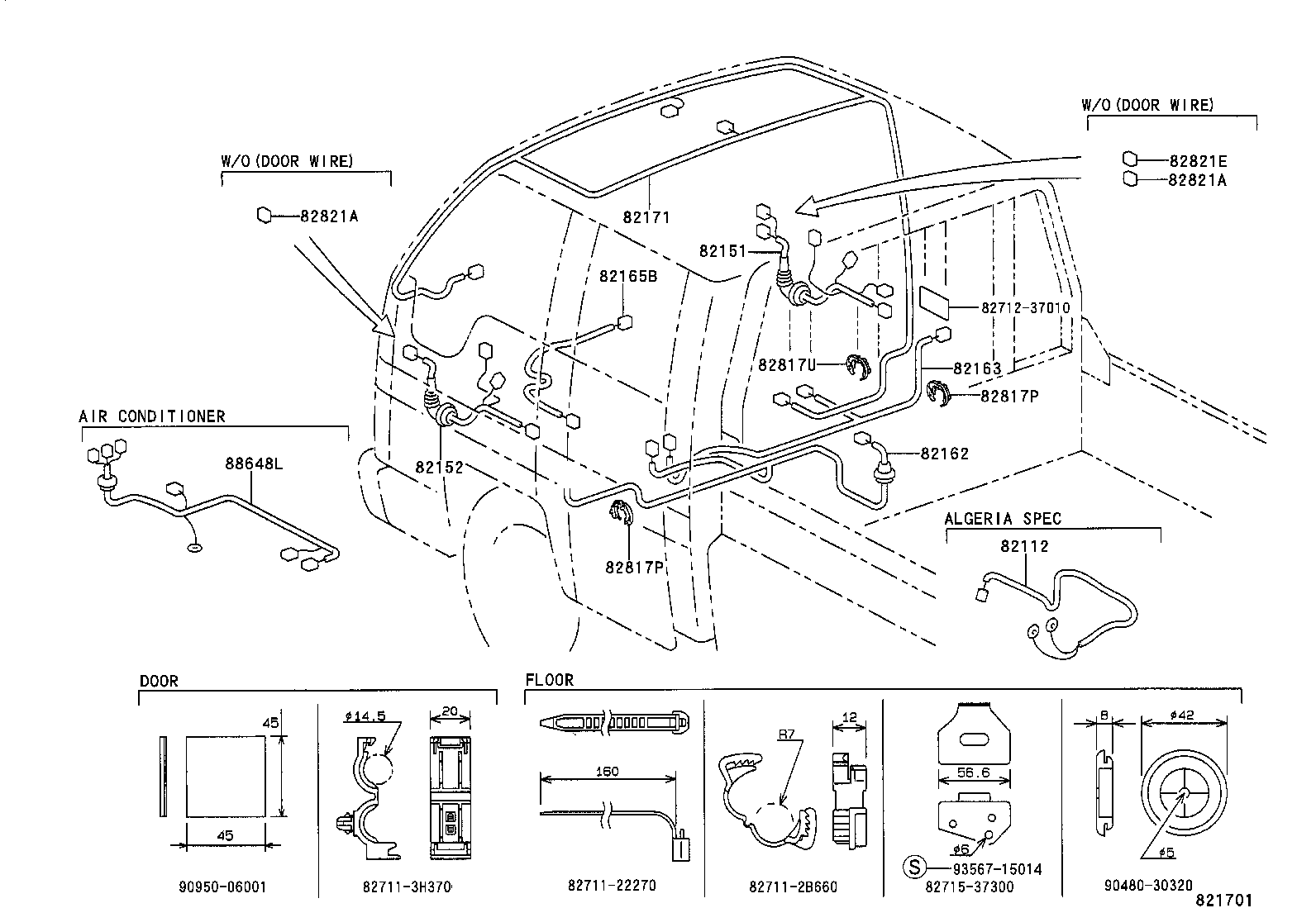

ILLUST NO. 2 OF 6(9505- )
DOOR, ROOF & FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-37040 |
BU101..LHD..WT..IV3..TS;BU111,141..LHD..(DM6,T3) |
1 | ||
| 82112-37040 |
BU111,141..LHD..(DM6,T3) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37130 |
BU111..IV3 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 82711-2B660 | ||||
| 82711-3H370 | ||||
| 82712-37010 | ||||
| 82715-37300 | ||||
| 90480-30320 | ||||
| 90950-06001 | ||||
| 93567-15014 | ||||

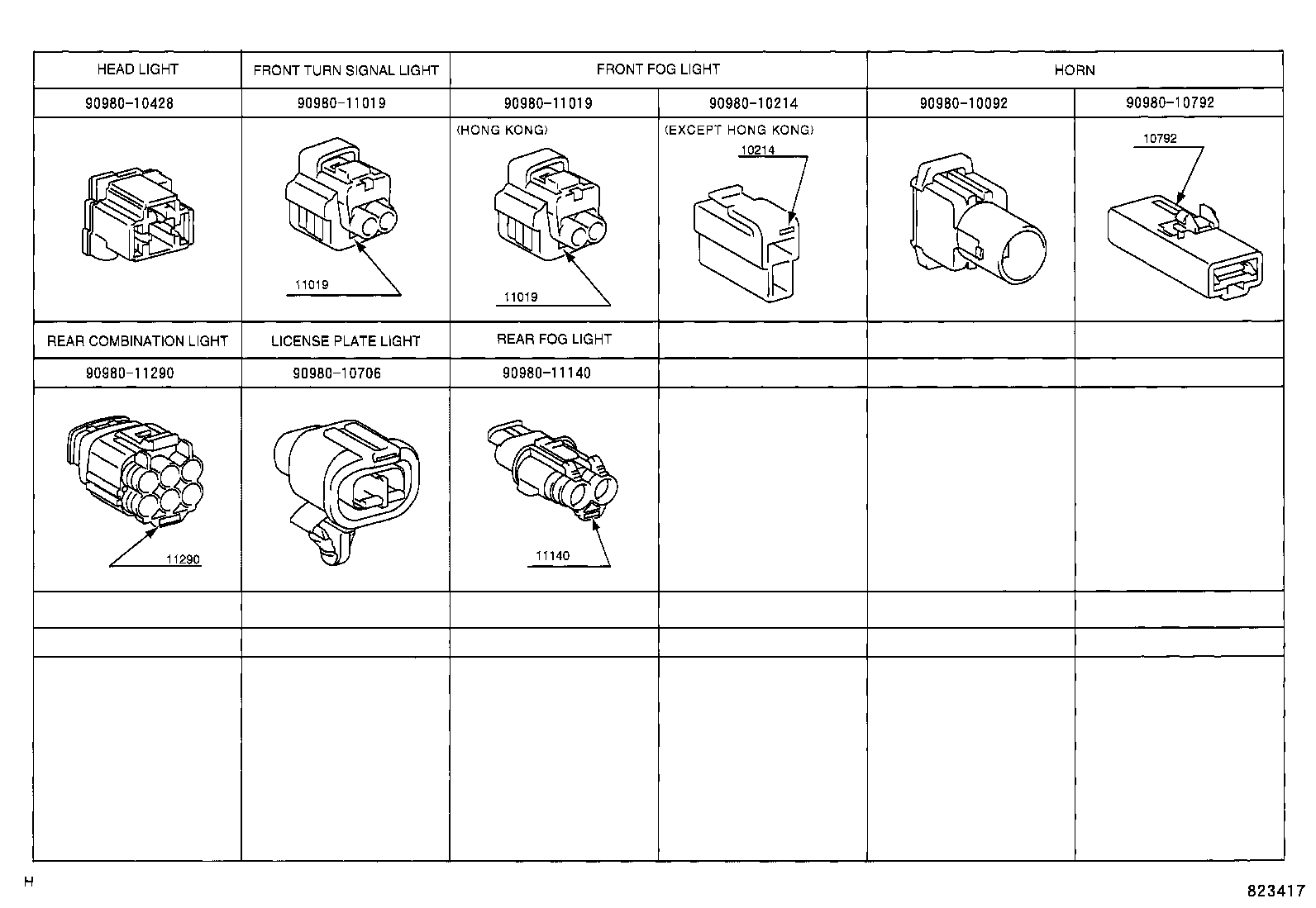

ILLUST NO. 6 OF 6(9505- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10092 | ||||
| 90980-10214 | ||||
| 90980-10428 | ||||
| 90980-10706 | ||||
| 90980-10792 | ||||
| 90980-11019 | ||||
| 90980-11140 | ||||
| 90980-11290 | ||||
