BU111L-TYMMS3 (1995)
Toyota Dyna200

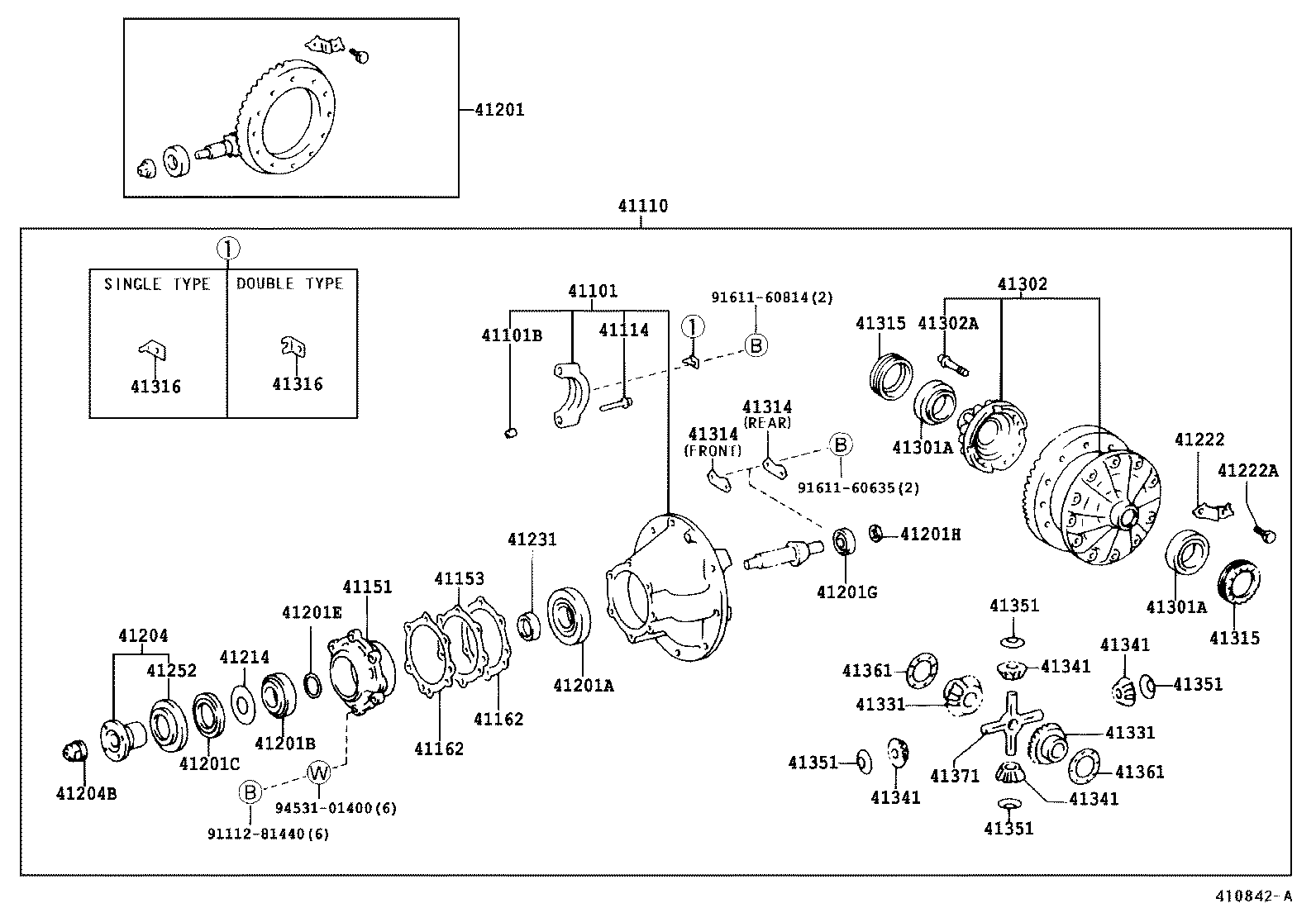

ILLUST NO. 1 OF 2(9505- )
10.5 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41101-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41101-36030 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-22002 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 90253-22002 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-36490 |
BU212..30T..TD;BU212..LHD..DSL;BU222..LHD..GEN;BU212,222..40T..ARL;BU102,140..T3..WT..(EUR,TAIW)..TB;BU11#,141,211..(20T,30T)..(ARL,GEN,TAIW) *FGR=37:6=6.167 |
1 | ||
| 41110-36490 |
BU212..40T..ARL;BU140,212..EUR,TAIW;BU11#,141,211..(20T,30T)..(ARL,GEN,TAIW) *FGR=37:6=6.167 |
1 | ||
| 41110-36490 |
BU212..40T..ARL;BU140,212..EUR,TAIW;BU11#,141,211..20T,30T *FGR=37:6=6.167 |
1 | ||
| 41110-36490 |
BU212,222..40T..DSL;BU212..30T..GEN..IV3;BU212,222..LHD..40T..TD..GEN;BU11#,141,211..(20T,30T)..(ARL,GEN) *FGR=37:6=6.167 |
1 | ||
| 41110-37250 |
BU211..30T..GEN;BU212..30T..GEN..IV3;BU212..40T..DSL..(ARL,GEN);BU212,222..LHD..40T..TD..GEN;BU11#,141,213,222,223..(DSL,TDEFI)..(ARL,GEN) *FGR=37:6=6.167 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16009 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 90105-16009 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39485 |
BU212..40T..ARL;BU140,212..EUR,TAIW;BU11#,141,211..(20T,30T)..(ARL,GEN,TAIW) *FGR=37:6=6.167 |
1 | ||
| 41201-39485 |
BU212..40T..ARL;BU140,212..EUR,TAIW;BU11#,141,211..20T,30T *FGR=37:6=6.167 |
1 | ||
| 41201-39485 |
BU212..30T..TD;BU212..LHD..DSL;BU222..LHD..GEN;BU212,222..40T..ARL;BU102,140..T3..WT..(EUR,TAIW)..TB;BU11#,141,211..(20T,30T)..(ARL,GEN,TAIW) *FGR=37:6=6.167 |
1 | ||
| 41201-39485 |
BU212,222..40T..DSL;BU212..30T..GEN..IV3;BU212,222..LHD..40T..TD..GEN;BU11#,141,211..(20T,30T)..(ARL,GEN) *FGR=37:6=6.167 |
1 | ||
| 41201-80154 |
BU211..30T..GEN;BU212..30T..GEN..IV3;BU212..40T..DSL..(ARL,GEN);BU212,222..LHD..40T..TD..GEN;BU11#,141,213,222,223..(DSL,TDEFI)..(ARL,GEN) *FGR=37:6=6.167 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40001 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 90366-49001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 90366-49001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-45001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 90366-35023 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 90366-45001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-48135 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 90311-58002 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T |
1 | ||
| 90311-58010 |
BU212;BU102..TD;BU111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,102,112,141,211,213,22#,YU210..30T,40T |
1 | ||
| 90311-58010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45023 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.86 |
1 | ||
| 90564-45021 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.82 |
1 | ||
| 90564-45022 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.84 |
1 | ||
| 90564-45024 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.88 |
1 | ||
| 90564-45026 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.00 |
1 | ||
| 90564-45027 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.10 |
1 | ||
| 90564-45020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.80 |
1 | ||
| 90564-45029 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.30 |
1 | ||
| 90564-45031 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.50 |
1 | ||
| 90564-45034 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.80 |
1 | ||
| 90564-45035 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.90 |
1 | ||
| 90564-45032 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.60 |
1 | ||
| 90564-45033 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.70 |
1 | ||
| 90564-45046 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.81 |
1 | ||
| 90564-45036 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=3.00 |
1 | ||
| 90564-45028 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.20 |
1 | ||
| 90564-45025 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.90 |
1 | ||
| 90564-45039 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=3.30 |
1 | ||
| 90564-45047 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.83 |
1 | ||
| 90564-45048 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.85 |
1 | ||
| 90564-45049 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.87 |
1 | ||
| 90564-45030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.40 |
1 | ||
| 90564-45038 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=3.20 |
1 | ||
| 90564-45050 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.89 |
1 | ||
| 90564-45037 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=3.10 |
1 | ||
| 90564-45021 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.82 |
1 | ||
| 90564-45024 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.88 |
1 | ||
| 90564-45022 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.84 |
1 | ||
| 90564-45020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.80 |
1 | ||
| 90564-45027 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.10 |
1 | ||
| 90564-45023 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.86 |
1 | ||
| 90564-45028 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.20 |
1 | ||
| 90564-45025 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.90 |
1 | ||
| 90564-45026 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.00 |
1 | ||
| 90564-45029 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.30 |
1 | ||
| 90564-45031 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.50 |
1 | ||
| 90564-45032 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.60 |
1 | ||
| 90564-45034 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.80 |
1 | ||
| 90564-45033 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.70 |
1 | ||
| 90564-45030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.40 |
1 | ||
| 90564-45036 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=3.00 |
1 | ||
| 90564-45035 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.90 |
1 | ||
| 90564-45039 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=3.30 |
1 | ||
| 90564-45050 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.89 |
1 | ||
| 90564-45038 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=3.20 |
1 | ||
| 90564-45037 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=3.10 |
1 | ||
| 90564-45048 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.85 |
1 | ||
| 90564-45046 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.81 |
1 | ||
| 90564-45049 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.87 |
1 | ||
| 90564-45047 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.83 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90201-40556 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.30 |
1 | ||
| 90201-40552 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.10 |
1 | ||
| 90201-40557 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.35 |
1 | ||
| 90201-40555 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.25 |
1 | ||
| 90201-40553 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.15 |
1 | ||
| 90201-40554 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.20 |
1 | ||
| 90201-40561 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.55 |
1 | ||
| 90201-40559 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.45 |
1 | ||
| 90201-40558 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.40 |
1 | ||
| 90201-40560 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.50 |
1 | ||
| 90201-40551 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.05 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-36060 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T |
1 | ||
| 41204-36050 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-24001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 90179-24001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36030 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 41214-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41214-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
6 | ||
| 41222-36030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-16015 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
12 | ||
| 90101-16015 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36050 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41231-36050 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-36020 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T |
1 | ||
| 41252-36010 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
2 | ||
| 90366-60001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 90366-60001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
2 | ||
| 90366-60001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 90366-60001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41301-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12047 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
12 | ||
| 90105-12047 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
12 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41315-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41315-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36020 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) DOUBLE TYPE |
2 | ||
| 41316-36020 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) SINGLE TYPE |
2 | ||
| 41317-36020 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) DOUBLE TYPE |
2 | ||
| 41316-36020 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36020 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) DOUBLE TYPE |
2 | ||
| 41316-36020 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) SINGLE TYPE |
2 | ||
| 41317-36020 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) DOUBLE TYPE |
2 | ||
| 41316-36020 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41331-36031 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41331-36031 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) |
4 | ||
| 41341-36011 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41341-36011 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) |
4 | ||
| 41341-36011 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41341-36011 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) |
4 | ||
| 41341-36011 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41341-36011 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) |
4 | ||
| 41341-36011 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41341-36011 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41351-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41351-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41351-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41351-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.60 |
2 | ||
| 41361-60030 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.90 |
2 | ||
| 41361-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.4 |
2 | ||
| 41361-60020 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.75 |
2 | ||
| 41361-36030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.6 |
2 | ||
| 41361-60040 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=2.05 |
2 | ||
| 41361-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.5 |
2 | ||
| 41361-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.7 |
2 | ||
| 41361-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.4 |
2 | ||
| 41361-36030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.6 |
2 | ||
| 41361-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.7 |
2 | ||
| 41361-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.5 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.60 |
2 | ||
| 41361-60030 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.90 |
2 | ||
| 41361-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.4 |
2 | ||
| 41361-60020 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.75 |
2 | ||
| 41361-36030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.6 |
2 | ||
| 41361-60040 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=2.05 |
2 | ||
| 41361-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.5 |
2 | ||
| 41361-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.7 |
2 | ||
| 41361-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.4 |
2 | ||
| 41361-36030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.6 |
2 | ||
| 41361-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.7 |
2 | ||
| 41361-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.5 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41371-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||

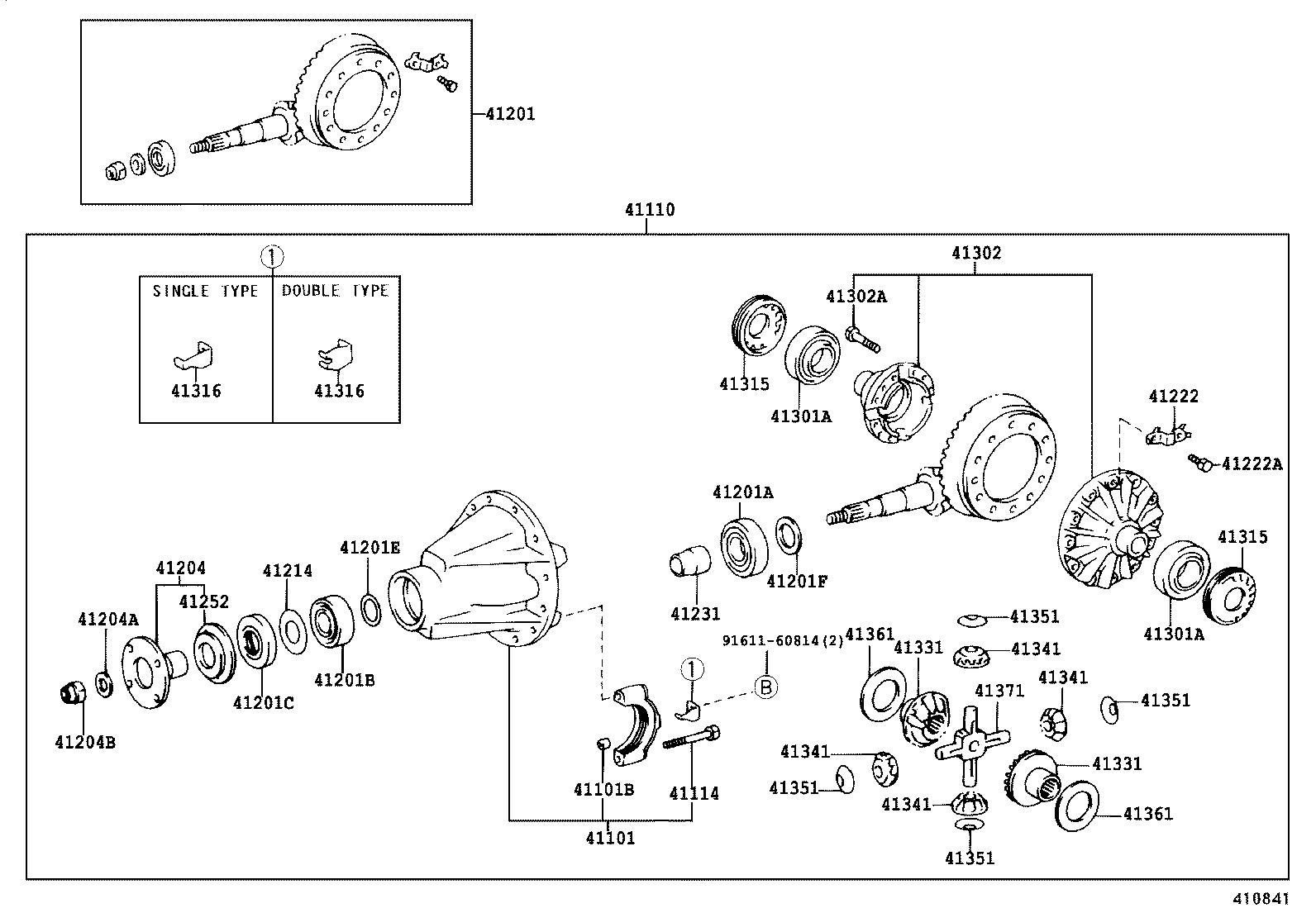

ILLUST NO. 1 OF 2(9505- )
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41101-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41101-36030 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-22002 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 90253-22002 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-36490 |
BU212..30T..TD;BU212..LHD..DSL;BU222..LHD..GEN;BU212,222..40T..ARL;BU102,140..T3..WT..(EUR,TAIW)..TB;BU11#,141,211..(20T,30T)..(ARL,GEN,TAIW) *FGR=37:6=6.167 |
1 | ||
| 41110-36490 |
BU212..40T..ARL;BU140,212..EUR,TAIW;BU11#,141,211..(20T,30T)..(ARL,GEN,TAIW) *FGR=37:6=6.167 |
1 | ||
| 41110-36490 |
BU212..40T..ARL;BU140,212..EUR,TAIW;BU11#,141,211..20T,30T *FGR=37:6=6.167 |
1 | ||
| 41110-36490 |
BU212,222..40T..DSL;BU212..30T..GEN..IV3;BU212,222..LHD..40T..TD..GEN;BU11#,141,211..(20T,30T)..(ARL,GEN) *FGR=37:6=6.167 |
1 | ||
| 41110-37250 |
BU211..30T..GEN;BU212..30T..GEN..IV3;BU212..40T..DSL..(ARL,GEN);BU212,222..LHD..40T..TD..GEN;BU11#,141,213,222,223..(DSL,TDEFI)..(ARL,GEN) *FGR=37:6=6.167 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16009 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 90105-16009 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41151-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=0.45 |
1 | ||
| 41153-36030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=0.25 |
1 | ||
| 41153-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=0.10 |
1 | ||
| 41153-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=0.10 |
1 | ||
| 41153-36030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=0.25 |
1 | ||
| 41153-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=0.15 |
1 | ||
| 41153-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=0.15 |
1 | ||
| 41153-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=0.45 |
1 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41162-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41162-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39485 |
BU212..40T..ARL;BU140,212..EUR,TAIW;BU11#,141,211..(20T,30T)..(ARL,GEN,TAIW) *FGR=37:6=6.167 |
1 | ||
| 41201-39485 |
BU212..40T..ARL;BU140,212..EUR,TAIW;BU11#,141,211..20T,30T *FGR=37:6=6.167 |
1 | ||
| 41201-39485 |
BU212..30T..TD;BU212..LHD..DSL;BU222..LHD..GEN;BU212,222..40T..ARL;BU102,140..T3..WT..(EUR,TAIW)..TB;BU11#,141,211..(20T,30T)..(ARL,GEN,TAIW) *FGR=37:6=6.167 |
1 | ||
| 41201-39485 |
BU212,222..40T..DSL;BU212..30T..GEN..IV3;BU212,222..LHD..40T..TD..GEN;BU11#,141,211..(20T,30T)..(ARL,GEN) *FGR=37:6=6.167 |
1 | ||
| 41201-80154 |
BU211..30T..GEN;BU212..30T..GEN..IV3;BU212..40T..DSL..(ARL,GEN);BU212,222..LHD..40T..TD..GEN;BU11#,141,213,222,223..(DSL,TDEFI)..(ARL,GEN) *FGR=37:6=6.167 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40001 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 90366-49001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 90366-49001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-45001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 90366-35023 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 90366-45001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-48135 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 90311-58002 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T |
1 | ||
| 90311-58010 |
BU212;BU102..TD;BU111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,102,112,141,211,213,22#,YU210..30T,40T |
1 | ||
| 90311-58010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45023 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.86 |
1 | ||
| 90564-45021 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.82 |
1 | ||
| 90564-45022 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.84 |
1 | ||
| 90564-45024 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.88 |
1 | ||
| 90564-45026 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.00 |
1 | ||
| 90564-45027 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.10 |
1 | ||
| 90564-45020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.80 |
1 | ||
| 90564-45029 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.30 |
1 | ||
| 90564-45031 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.50 |
1 | ||
| 90564-45034 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.80 |
1 | ||
| 90564-45035 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.90 |
1 | ||
| 90564-45032 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.60 |
1 | ||
| 90564-45033 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.70 |
1 | ||
| 90564-45046 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.81 |
1 | ||
| 90564-45036 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=3.00 |
1 | ||
| 90564-45028 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.20 |
1 | ||
| 90564-45025 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.90 |
1 | ||
| 90564-45039 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=3.30 |
1 | ||
| 90564-45047 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.83 |
1 | ||
| 90564-45048 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.85 |
1 | ||
| 90564-45049 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.87 |
1 | ||
| 90564-45030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=2.40 |
1 | ||
| 90564-45038 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=3.20 |
1 | ||
| 90564-45050 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.89 |
1 | ||
| 90564-45037 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=3.10 |
1 | ||
| 90564-45021 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.82 |
1 | ||
| 90564-45024 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.88 |
1 | ||
| 90564-45022 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.84 |
1 | ||
| 90564-45020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.80 |
1 | ||
| 90564-45027 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.10 |
1 | ||
| 90564-45023 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.86 |
1 | ||
| 90564-45028 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.20 |
1 | ||
| 90564-45025 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.90 |
1 | ||
| 90564-45026 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.00 |
1 | ||
| 90564-45029 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.30 |
1 | ||
| 90564-45031 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.50 |
1 | ||
| 90564-45032 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.60 |
1 | ||
| 90564-45034 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.80 |
1 | ||
| 90564-45033 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.70 |
1 | ||
| 90564-45030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.40 |
1 | ||
| 90564-45036 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=3.00 |
1 | ||
| 90564-45035 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=2.90 |
1 | ||
| 90564-45039 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=3.30 |
1 | ||
| 90564-45050 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.89 |
1 | ||
| 90564-45038 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=3.20 |
1 | ||
| 90564-45037 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=3.10 |
1 | ||
| 90564-45048 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.85 |
1 | ||
| 90564-45046 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.81 |
1 | ||
| 90564-45049 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.87 |
1 | ||
| 90564-45047 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.83 |
1 | ||
| 41201G - BEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER | ||||
| 90365-25015 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T |
1 | ||
| 90365-25030 |
BU212;BU102..TD;BU111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,102,112,141,211,213,22#,YU210..30T,40T |
1 | ||
| 90365-25030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90520-23034 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 90520-23034 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-36060 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T |
1 | ||
| 41204-36050 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-24001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 90179-24001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36030 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 41214-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41214-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
6 | ||
| 41222-36030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-16015 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
12 | ||
| 90101-16015 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36050 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41231-36050 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-36020 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T |
1 | ||
| 41252-36010 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
2 | ||
| 90366-60001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 90366-60001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
2 | ||
| 90366-60001 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 90366-60001 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41301-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12047 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
12 | ||
| 90105-12047 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
12 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41304-36010 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) FRONT |
1 | ||
| 41314-36010 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) REAR |
1 | ||
| 41304-36010 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) FRONT |
1 | ||
| 41314-36010 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) REAR |
1 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41304-36010 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) FRONT |
1 | ||
| 41314-36010 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) REAR |
1 | ||
| 41304-36010 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) FRONT |
1 | ||
| 41314-36010 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) REAR |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41315-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41315-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36020 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) DOUBLE TYPE |
2 | ||
| 41316-36020 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) SINGLE TYPE |
2 | ||
| 41317-36020 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) DOUBLE TYPE |
2 | ||
| 41316-36020 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36020 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) DOUBLE TYPE |
2 | ||
| 41316-36020 |
BU212..RHD..GEN;BU212..LHD..40T;BU11#,RZU100..20T,30T;BU140,212..ARL,EUR,SA,TAIW;BU102,142,212..(20T,25T,30T)..TD..IV3;BU101,102,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA,TAIW)..(CBU,IV3) SINGLE TYPE |
2 | ||
| 41317-36020 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) DOUBLE TYPE |
2 | ||
| 41316-36020 |
BU212;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN);BU101,141,211,213,22#,YU210..(30T,40T)..(EUR,GEN,SA)..(CBU,IV3) SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41331-36031 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
2 | ||
| 41331-36031 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) |
4 | ||
| 41341-36011 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41341-36011 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) |
4 | ||
| 41341-36011 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41341-36011 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) |
4 | ||
| 41341-36011 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41341-36011 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) |
4 | ||
| 41341-36011 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41341-36011 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41351-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41351-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41351-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
4 | ||
| 41351-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.60 |
2 | ||
| 41361-60030 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.90 |
2 | ||
| 41361-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.4 |
2 | ||
| 41361-60020 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.75 |
2 | ||
| 41361-36030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.6 |
2 | ||
| 41361-60040 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=2.05 |
2 | ||
| 41361-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.5 |
2 | ||
| 41361-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.7 |
2 | ||
| 41361-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.4 |
2 | ||
| 41361-36030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.6 |
2 | ||
| 41361-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.7 |
2 | ||
| 41361-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.5 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.60 |
2 | ||
| 41361-60030 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.90 |
2 | ||
| 41361-36010 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.4 |
2 | ||
| 41361-60020 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=1.75 |
2 | ||
| 41361-36030 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.6 |
2 | ||
| 41361-60040 |
BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW) T=2.05 |
2 | ||
| 41361-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.5 |
2 | ||
| 41361-36040 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T T=1.7 |
2 | ||
| 41361-36010 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.4 |
2 | ||
| 41361-36030 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.6 |
2 | ||
| 41361-36040 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.7 |
2 | ||
| 41361-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) T=1.5 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36020 |
BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T,40T;BU101,102,141,211,213,22#,YU210..30T,40T |
1 | ||
| 41371-36020 |
BU212;BU101,141,211,213,22#,YU210..30T,40T;BU102,111,142,RZU100..(20T,25T,30T)..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 91112-81440 | ||||
| 91611-60635 | ||||
| 91611-60814 | ||||
| 94531-01400 | ||||

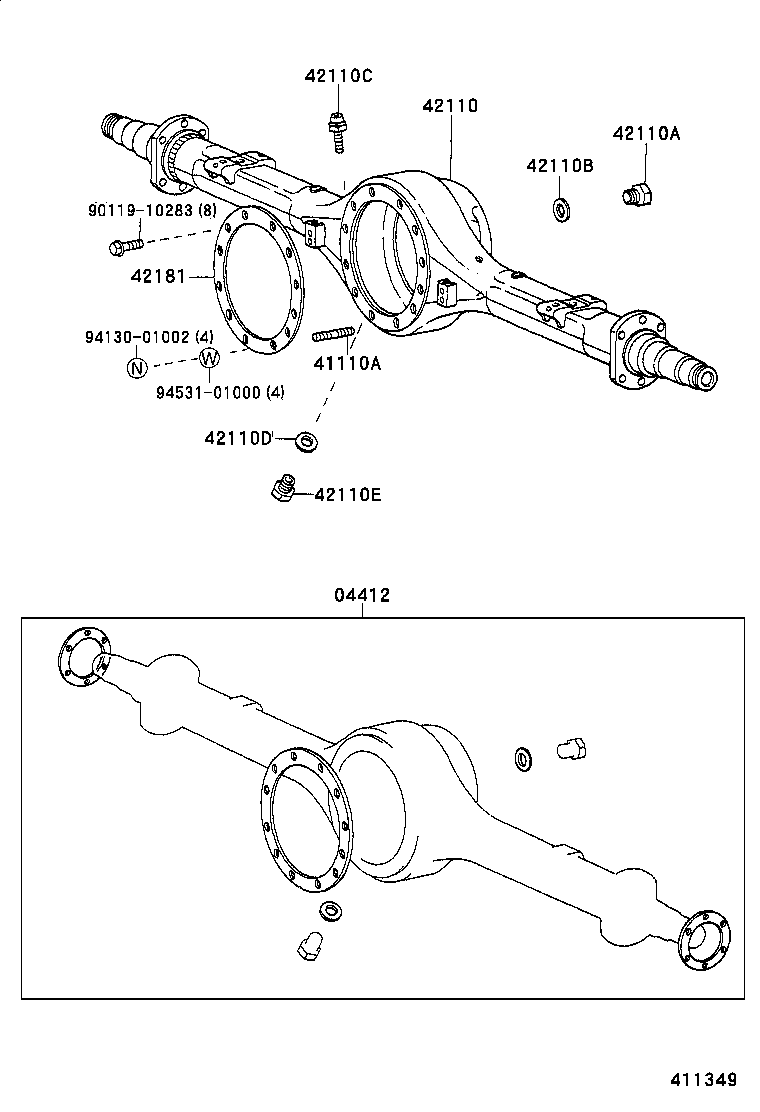

ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-36080 |
BU142..TD;BU140..EUR;BU101,102,141,211,YU210..30T;BU11#,212,RZU100..20T,25T,30T |
1 | ||
| 04412-36070 |
BU102..WT..15T;BU10#,14#..(175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 04412-36080 |
BU111,212..20T,25T,30T;BU101,112,141,211,213,223,YU210..30T;BU102,142,RZU100..(20T,25T,30T)..(EFI,TD) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10060 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T S=19 & 12,L=46 |
2 | ||
| 90116-10082 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) S=19 & 12.5,L=43.5 |
4 | ||
| 90116-10211 |
BU10#,14#..(15T,175T,20T,25T)..DSL S=17 & 12.5,L=41.5 |
4 | ||
| 90116-10059 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T S=19 & 12,L=57 |
2 | ||
| 90119-10283 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T S=26.8,L=36.7 |
8 | ||
| 90116-10211 |
RZU100..15T;BU10#,111,14#..(15T,175T,20T,25T)..DSL S=17 & 12.5,L=41.5 |
4 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-3B010 |
BU11#,RZU100..20T,30T |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90341-18006 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 12157-10010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90930-03138 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 12157-10010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
BU141..SA;BU141..30T;BU141..LHD;BU10#,111,142,21#,22#,RZU100,YU210 |
1 | ||
| 90341-18057 |
BU141..SA;BU141..30T;BU141..LHD;BU10#,111,142,21#,22#,RZU100,YU210 |
1 | ||
| 90341-18057 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36060 |
BU10#,111,14#..(15T,175T,20T,25T)..DSL |
1 | ||
| 42181-36060 |
BU10#,14#..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 42181-36070 |
BU142..TD;BU140..EUR;BU11#,212,RZU100;BU101,102,141,211,22#,YU210..30T,40T |
1 | ||
| 42181-36060 |
BU141..SA;RZU100..15T;BU101,111,142..175T,20T |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
