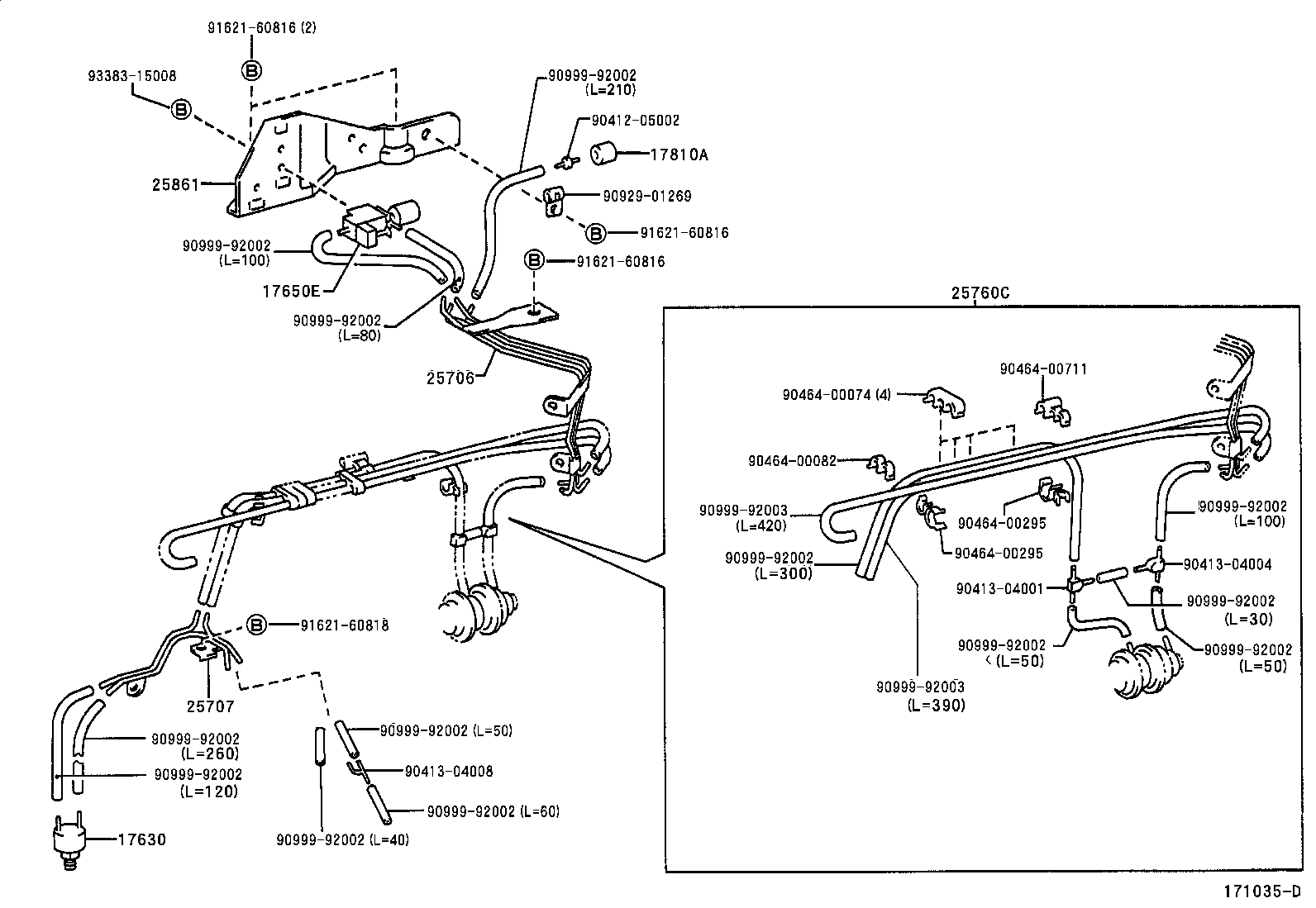

BU102L-TKMLS3 (1997)
Toyota Dyna200
(9703- )15BF..BU102,112
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12162 |
15BFT..BU212,222..RHD..GEN..IV3;15BF,15BFT..BU102,142..(15T,20T,30T)..GEN |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-58080 |
15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU;15BF,15BFT..BU102,142..EUR,GEN |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-58070 |
15BF..BU102 |
1 | ||
| 25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3 | ||||
| 25760-58350 |
15BF..BU102 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-58020 |
15BFT..BU212..RHD;15BFT..BU212..30T;15B#..BU102,112,142,222..EUR,GEN |
1 | ||
| 25861-58020 |
15BFT..BU212,222;15BF,15BFT..BU102,112,142..EUR,GEN |
1 | ||
| Common parts | ||||
| 90412-05002 | ||||
| 90413-04001 | ||||
| 90413-04004 | ||||
| 90413-04008 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00295 | ||||
| 90464-00711 | ||||
| 90929-01269 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-60816 | ||||
| 91621-60818 | ||||
| 93383-15008 | ||||
(9703- )15BFT..BU212,222..RHD..GEN ; (9808-)15BFT..BU212..LHD..40T ; (9902-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12162 |
15BFT..BU212,222..RHD..GEN..IV3;15BF,15BFT..BU102,142..(15T,20T,30T)..GEN |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-58080 |
15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU;15BF,15BFT..BU102,142..EUR,GEN |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-58020 |
15BFT..BU212..RHD;15BFT..BU212..30T;15B#..BU102,112,142,222..EUR,GEN |
1 | ||
| 25861-58020 |
15BFT..BU212,222;15BF,15BFT..BU102,112,142..EUR,GEN |
1 | ||
| Common parts | ||||
| 90412-05003 | ||||
| 90413-04008 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00220 | ||||
| 90464-00295 | ||||
| 90464-00411 | ||||
| 90464-00498 | ||||
| 90464-00667 | ||||
| 90464-00711 | ||||
| 90467-06115 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-60816 | ||||
| 93383-15008 | ||||
