BU101R-TSMLS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU211..30T..SA ; (9505- )BU101,111,141..RHD ; (9505- )BU211,221..R

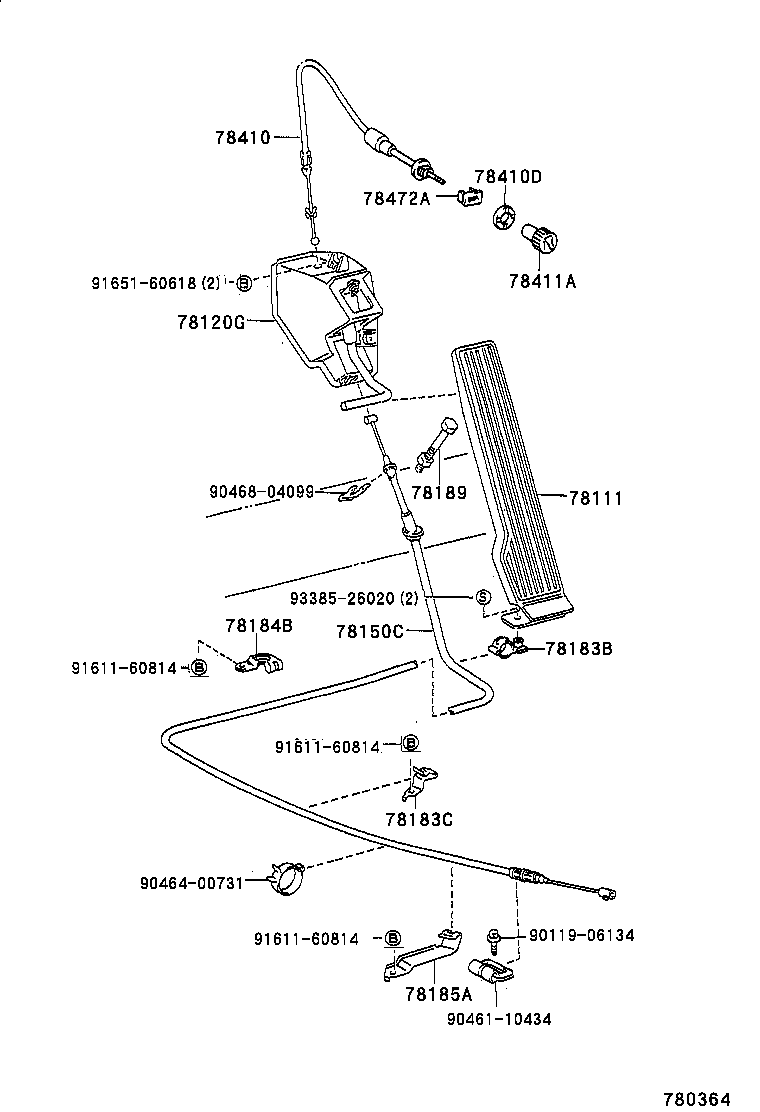

Click highlighted areas on diagram

diagram 78111 78120G 78150C 78183B 78183C 78184B 78185A 78189 78410 78410D 78411A 78472A 9011906134 9046110434 9046400731 9046804099 9161160814 9161160814 9161160814 9165160618 9338526020
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78110-95410

BU10#,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
78110-95410

BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
78110-95410

BU10#,111,14#,211,212,221,222,YU210..RHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95400

BU100,101,110,111,14#..RHD..DSL

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37161

BU101,111,141..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95406

BU10#,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
78183-95406

BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
78183-95406

BU10#,111,14#,211,212,221,222,YU210..RHD

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-37010

BU211,221..GEN;BU211..30T..SA;BU10#,11#,14#,212,222,RZU100..DSL,EFI

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78183-37030

BU10#,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
78183-37030

BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD

 1
78183-37030

BU10#,111,14#,211,212,221,222,YU210..RHD

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78183-37140

BU211,221..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU101,111,112,141..DM1,DM6,T1,T2,T3,TW2

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95404

BU10#,110,111,14#,RZU100..RHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78404-37020

BU100,101,110,111,14#,21#,221..RHD

 1
78404-37050

BU222..ARL,SA;BU101,111,14#,211,212,221..RHD..DSL

 1
78404-37050

BU222..ARL,SA;BU100,101,110,111,14#,211,212,221..RHD..DSL

 1
78410D - NUT, THROTTLE
78314-95010

BU10#,111,14#,211,212,221,222..ARL,GEN,SA

 1
78314-95010

BU10#,111,14#,211,212,221,222

 1
78314-95010

BU10#,11#,14#,211,212,221,222

 1
78314-95010

BU10#,111,14#,211,212,221,222

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-95J01

BU10#,111,14#,211,212,221,222..ARL,GEN,SA

 1
78411-95J01

BU10#,111,14#,211,212,221,222

 1
78411-95J01

BU10#,111,14#,211,212,221,222

 1
78411-95J01

BU10#,11#,14#,211,212,221,222

 1
78411-22010

BU10#,11#,14#,21#,22#

 1
78472A - SUPPORT, THROTTLE CONTROL CABLE
78472-95700B0

BU10#,111,14#,211,212,221,222,YU210..ARL,GEN,SA

BLUISH GRAY,TRIM1#

 1
78472-95700B0

BU10#,11#,14#,211,212,221,222,YU210

BLUISH GRAY,TRIM1#

 1
Common parts
90119-06134
90461-10434
90464-00731
90468-04099
91611-60814
91651-60618
93385-26020
