BU101R-TBMMS3 (1995)
Toyota Dyna200
ILLUST NO. 1 OF 2(9505- )15BFT..BU212,222..LHD..GEN ; (9505-)14B,15BF,15BFTE,3B ; (9902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19529 - CLAMP | ||||
| 19529-56010 |
14B,15BF,15BFTE,3B..BU10#,11#,14#,213,223 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-56240 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23380-58220 |
14B..BU101..RHD;14B..BU101..LHD..T3;14B,15BF,3B..BU100,102,14# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-56240 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23380-58220 |
14B..BU101..RHD;14B..BU101..LHD..T3;14B,15BF,3B..BU100,102,14# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-56040 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64020 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-56011 |
14B,15BF,3B..BU10#,14# |
1 | ||
| 23921-58130 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-56011 |
14B,15BF,3B..BU10#,14# |
1 | ||
| 23921-58130 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-56011 |
14B,15BF,3B..BU10#,14# |
1 | ||
| 23921-58130 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-36110 |
BU211,221..GEN;BU211..30T..SA;BU222..ARL,SA,TAIW;BU212,222..LHD..TD..GEN;BU10#,11#,14#,212,213,223..DSL,TDEFI |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90560-09041 | ||||
| 91511-60835 | ||||
| 91511-60850 | ||||
| 91511-60860 | ||||
| 91621-60825 | ||||
| 93319-15008 | ||||

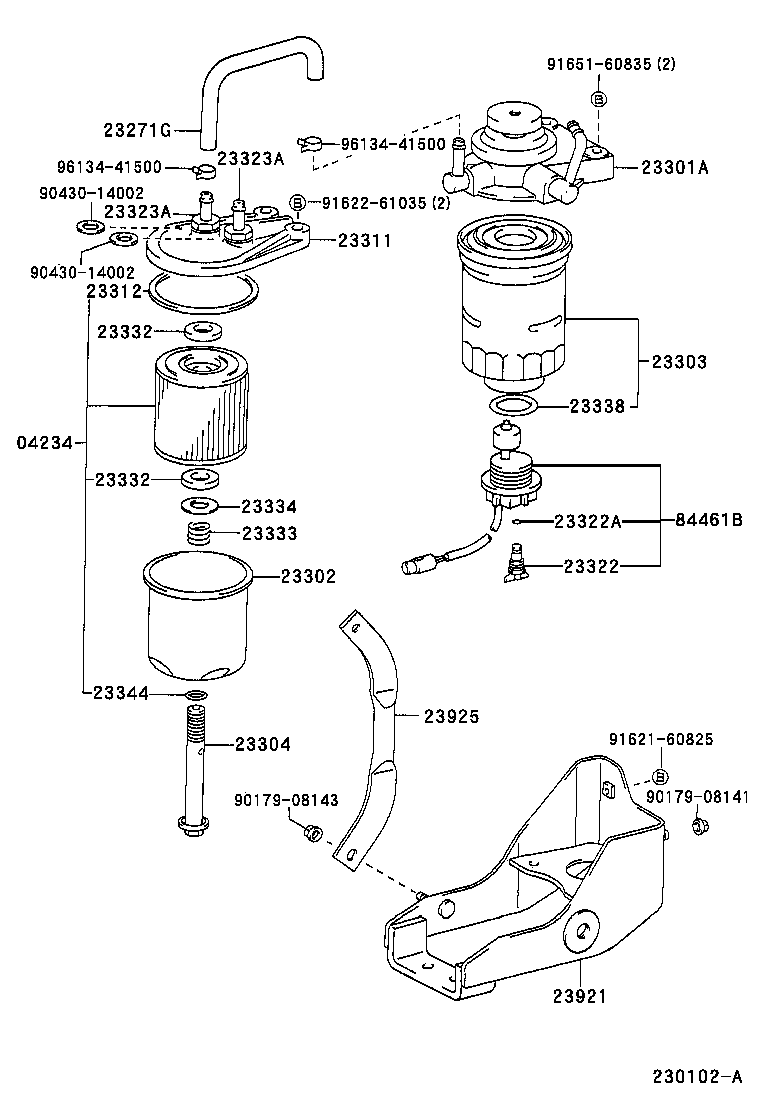

ILLUST NO. 2 OF 2(9505- )14B..BU101..T1..CBU ; (9505- )14B..BU101,141..RHD..20T,30T..GEN,SA..I
W/DOUBLE FILTER(STD CAB)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04234 - ELEMENT KIT, FUEL FILTER | ||||
| 04234-68010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23271G - HOSE, FUEL | ||||
| 23271-56090 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-56240 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23380-58220 |
14B..BU101..RHD;14B..BU101..LHD..T3;14B,15BF,3B..BU100,102,14# |
1 | ||
| 23302 - BODY SUB-ASSY, FUEL FILTER, LOWER | ||||
| 23302-17010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-56040 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 23304 - BAIL SUB-ASSY, FILTER BOWL | ||||
| 23304-56010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23311 - BODY, FUEL FILTER UPPER | ||||
| 23311-56010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64020 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 23323A - UNION | ||||
| 23324-56010 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
2 | ||
| 23323A - UNION | ||||
| 23324-56010 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
2 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-46010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-68010 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-56011 |
14B,15BF,3B..BU10#,14# |
1 | ||
| 23921-58130 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-56010 |
14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-36110 |
BU211,221..GEN;BU211..30T..SA;BU222..ARL,SA,TAIW;BU212,222..LHD..TD..GEN;BU10#,11#,14#,212,213,223..DSL,TDEFI |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90179-08143 | ||||
| 90430-14002 | ||||
| 91621-60825 | ||||
| 91622-61035 | ||||
| 91651-60835 | ||||
| 96134-41500 | ||||
