BU101R-TBMMS (1995)
Toyota Dyna200
ILLUST NO. 1 OF 2(9505- )BU10#..DSL ; (9908- )15T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36110 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36080 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36100 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48473-36190 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36100 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48473-36190 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
BU100,101,140,141..WT..(20T,25T)..GEN L=300,HEAVY DUTY SPEC |
4 | ||
| 90117-16142 |
BU10#..WT..DSL..TS L=255 |
4 | ||
| 90117-16115 |
BU10#..WT..DSL..TS L=265 |
2 | ||
| 90117-16052 |
BU10#,RZU100..WT..(15T,20T)..TB L=235 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36190 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
1 | ||
| 48473-36100 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36190 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
1 | ||
| 48473-36100 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48191-36130 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36180 |
BU10#..T3..WT |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36210 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36210 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36190 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48422-37010 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36050 |
BU100,101,140,141..WT..(20T,25T)..GEN HEAVY DUTY SPEC |
2 | ||
| 48481-36040 |
BU102..T3..(15T,20T);BU100,101,14#..(T1,T3,TW2)..(175T,20T,25T)..DSL..(ARL,GEN,SA) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
BU102..(T3,T4)..WT;BU141,142..(20T,25T)..(ARL,GEN,SA);BU100,101,140,RZU100..WT..(ARL,GEN,SA) |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
BU102..(T3,T4)..WT;BU141,142..(20T,25T)..(ARL,GEN,SA);BU100,101,140,RZU100..WT..(ARL,GEN,SA) |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80443 |
BU212..40T..DSL;BU101,102..T3..WT;BU222..ARL,EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU100,14#,211,213,221,223..(T3,TW1)..WT..(20T,25T,40T) |
1 | ||
| 48531-80442 |
BU10#,RZU100..WT..(15T,20T)..TB |
1 | ||
| 48531-80443 |
BU212..LHD;BU101..T3..WT;BU212,222..40T..(ARL,EUR,SA);BU102,14#,211,213,221,223..20T,25T,40T |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90385-16011 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90385-16011 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU212,222..LHD..40T;BU10#,140,142,221..WT;BU141,21#..(25T,40T)..DSL |
2 | ||
| 90948-03003 |
BU212..40T;BU101..T3..WT;BU222..ARL,EUR,SA;BU102,14#,211,213,221,223..20T,25T,40T |
2 | ||
| 90948-03003 |
BU212..40T;BU101..T3..WT;BU222..ARL,EUR,SA;BU102,14#,211,213,221,223..20T,25T,40T |
2 | ||
| 90948-03003 |
BU212..40T..DSL;BU101,102..T3..WT;BU222..ARL,EUR,SA;BU212,222..LHD..40T..TD..GEN;BU100,14#,211,213,221,223..(T3,TW1)..WT..(20T,25T,40T) |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU10#,11#,14#,21#,22#,RZU100,YU210..WT |
2 | ||
| 90948-03004 |
BU10#,111,14#,21#,22#,RZU100,YU210..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BU212,222..LHD..40T..GEN;BU141,21#,222..(25T,40T)..DSL;BU10#,11#,140,142,221..(DM1,DM6,DM7,T3,TW1)..WT |
2 | ||
| 90948-03003 |
BU212..25T,30T;BU10#..WT..(15T,20T)..TB;BU212,222..RHD..GEN..IV3;BU141,142,211,213,223,RZU100,YU210..(15T,20T,30T)..(GEN,SA) |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90948-03004 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80442 |
BU10#,RZU100..WT..(15T,20T)..TB |
1 | ||
| 48531-80443 |
BU212..LHD;BU101..T3..WT;BU212,222..40T..(ARL,EUR,SA);BU102,14#,211,213,221,223..20T,25T,40T |
1 | ||
| 48531-80443 |
BU212..40T..DSL;BU101,102..T3..WT;BU222..ARL,EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU100,14#,211,213,221,223..(T3,TW1)..WT..(20T,25T,40T) |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-26020 |
BU10#,14#,21#,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48542-26020 |
BU141..SA;BU141..30T;BU141..LHD;BU10#,142,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| Common parts | ||||
| 90101-16021 | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90105-16021 | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91611-61020 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
| 94184-61201 | ||||
| 94184-61601 | ||||
| 94185-60800 | ||||
| 94621-11600 | ||||
ILLUST NO. 1 OF 2(9505- )BU100,102 ; (9505- )BU101..T1,T3,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36110 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36080 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36100 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48473-36190 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36100 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48473-36190 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
BU100,101,140,141..WT..(20T,25T)..GEN L=300,HEAVY DUTY SPEC |
4 | ||
| 90117-16142 |
BU10#..WT..DSL..TS L=255 |
4 | ||
| 90117-16115 |
BU10#..WT..DSL..TS L=265 |
2 | ||
| 90117-16052 |
BU10#,RZU100..WT..(15T,20T)..TB L=235 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
BU100,101,140,141..WT..(20T,25T)..GEN L=300,HEAVY DUTY SPEC |
4 | ||
| 90117-16142 |
BU10#..WT..DSL..TS L=255 |
4 | ||
| 90117-16115 |
BU10#..WT..DSL..TS L=265 |
2 | ||
| 90117-16052 |
BU10#,RZU100..WT..(15T,20T)..TB L=235 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36190 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
1 | ||
| 48473-36100 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36190 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
1 | ||
| 48473-36100 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36180 |
BU10#..T3..WT |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36210 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36210 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36190 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48422-37010 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
BU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW) |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36050 |
BU100,101,140,141..WT..(20T,25T)..GEN HEAVY DUTY SPEC |
2 | ||
| 48481-36040 |
BU102..T3..(15T,20T);BU100,101,14#..(T1,T3,TW2)..(175T,20T,25T)..DSL..(ARL,GEN,SA) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
BU102..(T3,T4)..WT;BU141,142..(20T,25T)..(ARL,GEN,SA);BU100,101,140,RZU100..WT..(ARL,GEN,SA) |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
BU102..(T3,T4)..WT;BU141,142..(20T,25T)..(ARL,GEN,SA);BU100,101,140,RZU100..WT..(ARL,GEN,SA) |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80443 |
BU212..40T..DSL;BU101,102..T3..WT;BU222..ARL,EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU100,14#,211,213,221,223..(T3,TW1)..WT..(20T,25T,40T) |
1 | ||
| 48531-80442 |
BU10#,RZU100..WT..(15T,20T)..TB |
1 | ||
| 48531-80443 |
BU212..LHD;BU101..T3..WT;BU212,222..40T..(ARL,EUR,SA);BU102,14#,211,213,221,223..20T,25T,40T |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90385-16011 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90385-16011 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU212,222..LHD..40T;BU10#,140,142,221..WT;BU141,21#..(25T,40T)..DSL |
2 | ||
| 90948-03003 |
BU212..40T;BU101..T3..WT;BU222..ARL,EUR,SA;BU102,14#,211,213,221,223..20T,25T,40T |
2 | ||
| 90948-03003 |
BU212..40T;BU101..T3..WT;BU222..ARL,EUR,SA;BU102,14#,211,213,221,223..20T,25T,40T |
2 | ||
| 90948-03003 |
BU212..40T..DSL;BU101,102..T3..WT;BU222..ARL,EUR,SA;BU212,222..LHD..40T..TD..GEN;BU100,14#,211,213,221,223..(T3,TW1)..WT..(20T,25T,40T) |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU10#,11#,14#,21#,22#,RZU100,YU210..WT |
2 | ||
| 90948-03004 |
BU10#,111,14#,21#,22#,RZU100,YU210..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BU212,222..LHD..40T..GEN;BU141,21#,222..(25T,40T)..DSL;BU10#,11#,140,142,221..(DM1,DM6,DM7,T3,TW1)..WT |
2 | ||
| 90948-03003 |
BU212..25T,30T;BU10#..WT..(15T,20T)..TB;BU212,222..RHD..GEN..IV3;BU141,142,211,213,223,RZU100,YU210..(15T,20T,30T)..(GEN,SA) |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90948-03004 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80442 |
BU10#,RZU100..WT..(15T,20T)..TB |
1 | ||
| 48531-80443 |
BU212..LHD;BU101..T3..WT;BU212,222..40T..(ARL,EUR,SA);BU102,14#,211,213,221,223..20T,25T,40T |
1 | ||
| 48531-80443 |
BU212..40T..DSL;BU101,102..T3..WT;BU222..ARL,EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU100,14#,211,213,221,223..(T3,TW1)..WT..(20T,25T,40T) |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-26020 |
BU10#,14#,21#,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| 48542-26020 |
BU141..SA;BU141..30T;BU141..LHD;BU10#,142,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T) |
2 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90119-10355 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| 94184-61001 | ||||
| 94184-61201 | ||||
| 94185-60800 | ||||
ILLUST NO. 2 OF 2(9505- )LHD..40T..TD..GEN ; (9505- )BU21#,223..40T..DSL,TDEFI ; (9505- )BU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36810 |

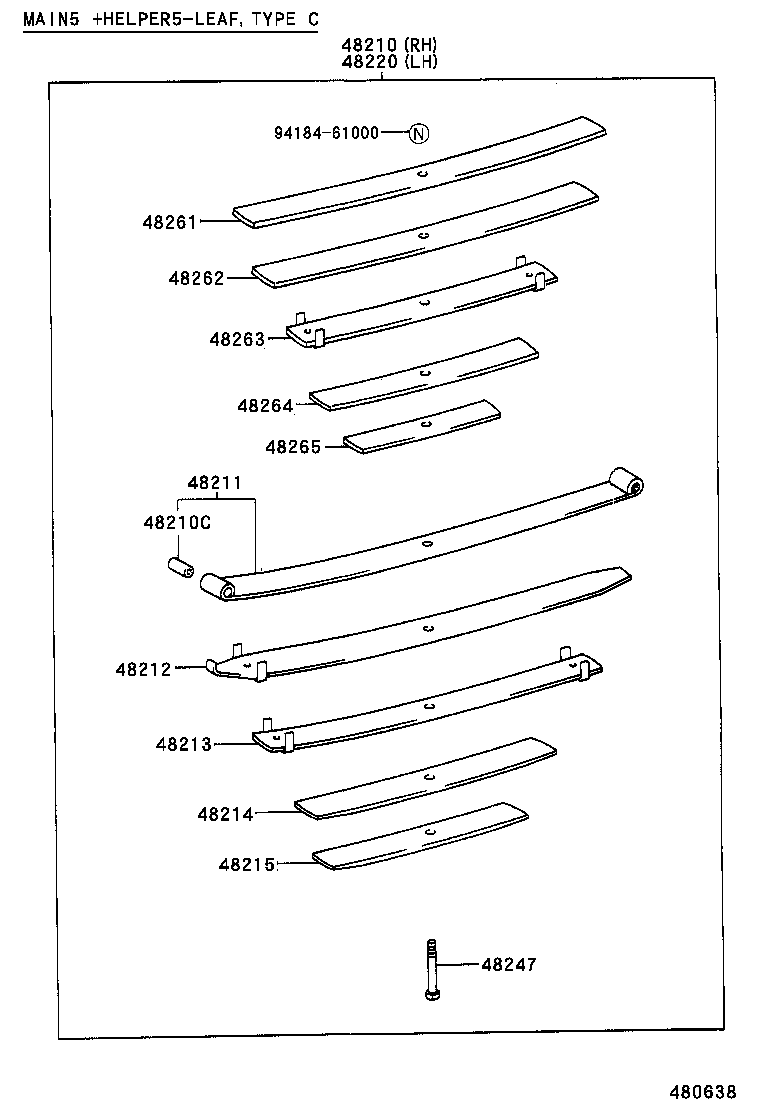

BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B640 |

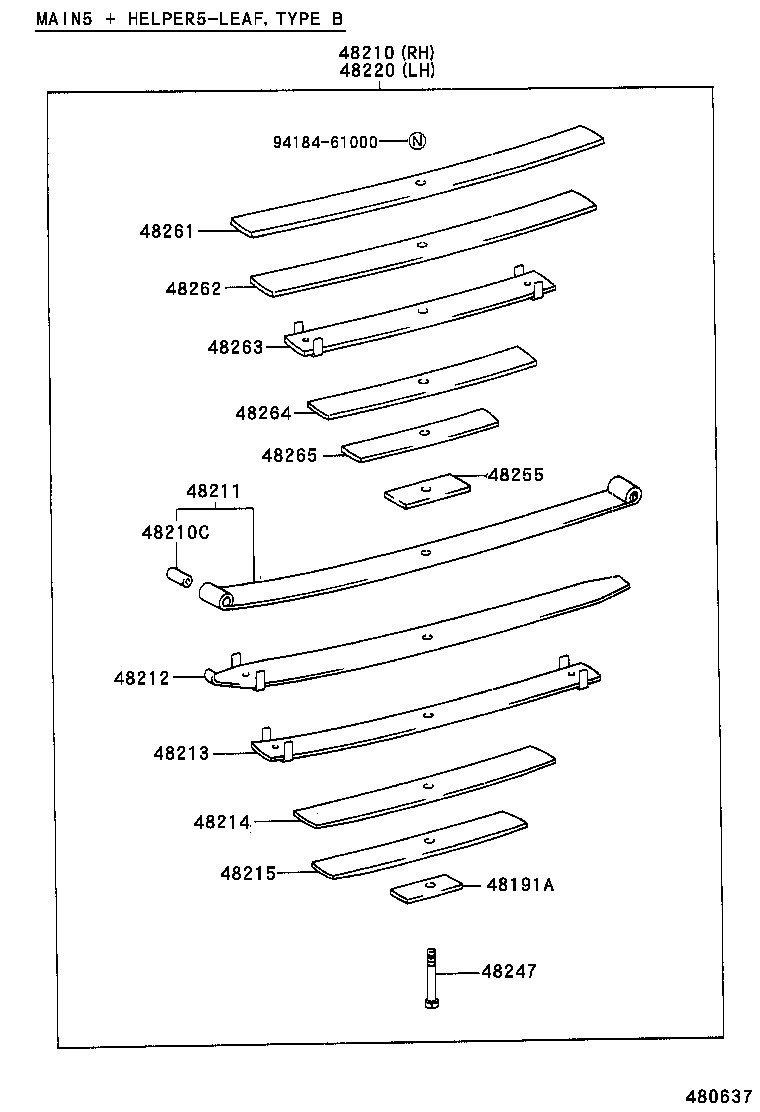

BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU142..20T,25T;BU10#,140,141..T3..WT REAR |
2 | ||
| 90389-16003 |
BU10#..T3..WT |
4 | ||
| 90389-16005 |
BU142..20T,25T;BU10#,140,141..T3..WT FRONT |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48201-3B640 |
BU100,101..WT..GEN..TS MAIN 5+HELPER 5-LEAF |
2 | ||
| 48201-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48202-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48212-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48203-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48203-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48214-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48215-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU10#..WT..DSL..TS |
2 | ||
| 48247-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48247-60540 |
BU10#..WT..20T..TB |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48216-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48217-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48204-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48219-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48221-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505- )BU10#..WT..20T..TB ; (9610- )BU101..RHD..WT..GEN..IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU142..20T,25T;BU10#,140,141..T3..WT REAR |
2 | ||
| 90389-16003 |
BU10#..T3..WT |
4 | ||
| 90389-16005 |
BU142..20T,25T;BU10#,140,141..T3..WT FRONT |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48201-3B640 |
BU100,101..WT..GEN..TS MAIN 5+HELPER 5-LEAF |
2 | ||
| 48201-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48202-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48212-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48203-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48203-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48214-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48215-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU10#..WT..DSL..TS |
2 | ||
| 48247-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48247-60540 |
BU10#..WT..20T..TB |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
| 94110-40800 | ||||
ILLUST NO. 2 OF 2(9505- )BU102..30T ; (9505- )BU100,101..WT..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48191-36130 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU142..20T,25T;BU10#,140,141..T3..WT REAR |
2 | ||
| 90389-16003 |
BU10#..T3..WT |
4 | ||
| 90389-16005 |
BU142..20T,25T;BU10#,140,141..T3..WT FRONT |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48201-3B640 |
BU100,101..WT..GEN..TS MAIN 5+HELPER 5-LEAF |
2 | ||
| 48201-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48202-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48212-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48203-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48203-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48214-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48215-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU10#..WT..DSL..TS |
2 | ||
| 48247-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48247-60540 |
BU10#..WT..20T..TB |
2 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48253-36530 |
BU212..25T;BU100,101..WT..GEN;BU212..RHD..30T..DSL;BU102,211,YU210..30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48216-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48217-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48204-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48219-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48221-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
ILLUST NO. 2 OF 2(9505- )WT..DSL..TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU142..20T,25T;BU10#,140,141..T3..WT REAR |
2 | ||
| 90389-16003 |
BU10#..T3..WT |
4 | ||
| 90389-16005 |
BU142..20T,25T;BU10#,140,141..T3..WT FRONT |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48201-3B640 |
BU100,101..WT..GEN..TS MAIN 5+HELPER 5-LEAF |
2 | ||
| 48201-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48202-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48212-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48203-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48203-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48214-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48215-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU10#..WT..DSL..TS |
2 | ||
| 48247-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48247-60540 |
BU10#..WT..20T..TB |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48216-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48217-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48204-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48219-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48221-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU212..TD..IV3; (9505- )BU222..ARL,GEN,TAIW ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU142..20T,25T;BU10#,140,141..T3..WT REAR |
2 | ||
| 90389-16003 |
BU10#..T3..WT |
4 | ||
| 90389-16005 |
BU142..20T,25T;BU10#,140,141..T3..WT FRONT |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48201-3B640 |
BU100,101..WT..GEN..TS MAIN 5+HELPER 5-LEAF |
2 | ||
| 48201-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48202-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48212-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48203-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48203-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48214-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48214-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48215-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48215-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU10#..WT..20T..TB |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B640 |
BU102..30T;BU100,101..WT..GEN MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48210-36810 |
BU10#..WT..DSL..TS MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48210-3B220 |
BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU10#..WT..DSL..TS |
2 | ||
| 48247-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48247-60540 |
BU10#..WT..20T..TB |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48216-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48217-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48204-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48219-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36810 |
BU10#..WT..DSL..TS |
2 | ||
| 48221-3B640 |
BU100,101..WT..GEN..TS HEAVY DUTY SPEC |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
