BU101L-TKMLS3 (1995)
Toyota Dyna200

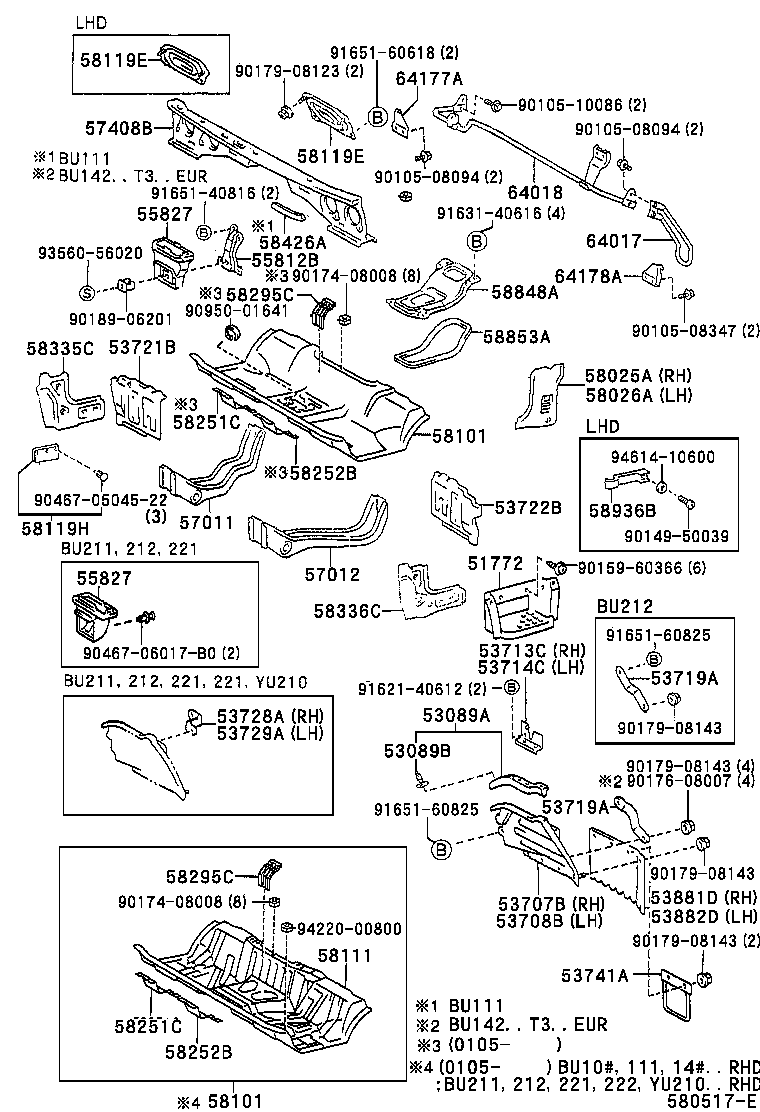

ILLUST NO. 1 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51772-37010 |
BU10#,11#,14#,RZU100..ARL,GEN,SA,TAIW LH |
1 | ||
| 51771-37020 |
BU10#,11#,14#,RZU100..ARL,GEN,SA,TAIW RH |
1 | ||
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-37010 |
BU102..TAIW;BU142..T3..(20T,25T);BU100,101,11#,140,141,21#,22#,RZU100,YU210..DM1,DM6,T1,T2,T3 |
2 | ||
| 53089-37010 |
BU142..T3..(20T,25T);BU101,111,141,21#,22#,RZU100,YU210..DM1,DM6,T1,T2,T3 |
2 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
BU10#,111,14#,21#,22#,RZU100,YU210..DM1,DM6,T1,T2,T3,T4 |
10 | ||
| 67868-95401 |
BU10#,11#,14#,21#,22#,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4 |
10 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210..(DM1,DM6,DM7,T1,T2,T3,T4)..(ARL,GEN,SA,TAIW) |
1 | ||
| 53715-37010 |
BU10#,111,14#,21#,22#,RZU100,YU210..(DM1,DM6,T1,T2,T3,T4)..(ARL,GEN,SA) |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37010 |
BU10#,11#,14#,RZU100..(15T,20T,25T,30T)..(ARL,GEN,SA,TAIW) |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-37030 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37010 |
BU211,212,221,222,YU210;BU101,111,14#,213,223,RZU100..LHD |
1 | ||
| 53722-37010 |
BU211,212,221,222,YU210;BU10#,111,112,14#,213,223,RZU100..LHD |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 55812B - BRACKET, VENTILATOR DUCT | ||||
| 55812-37010 |
BU142..25T..GEN;BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN |
1 | ||
| 55827 - DUCT, VENTILATOR AIR GUIDE | ||||
| 55827-37010 |
BU142..25T..GEN;BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN |
1 | ||
| 55827-37010 |
BU10#,111,14#..(DM1,T1,T3,TW2)..GEN |
1 | ||
| 55827 - DUCT, VENTILATOR AIR GUIDE | ||||
| 55827-37010 |
BU142..25T..GEN;BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN |
1 | ||
| 55827-37010 |
BU10#,111,14#..(DM1,T1,T3,TW2)..GEN |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-37010 |
BU100,101,111,140,141..(DM1,T1,T3)..GEN W(TILT CAB) |
1 | ||
| 57011-37020 |
BU142..TW1;BU100..CBU;BU100..GEN..IV3;BU101,111,140,141..(DM1,T1,T3)..GEN |
1 | ||
| 57011-37100 |
BU10#,11#,14#,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN) |
1 | ||
| 57011-37100 |
BU10#,11#,14#,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4)..(ARL,EUR,GEN) |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-37020 |
BU142..TW1;BU100..CBU;BU100..GEN..IV3;BU101,111,140,141..(DM1,T1,T3)..GEN |
1 | ||
| 57012-37100 |
BU10#,11#,14#,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN) |
1 | ||
| 57012-37100 |
BU10#,11#,14#,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4)..(ARL,EUR,GEN) |
1 | ||
| 57012-37010 |
BU100,101,111,140,141..(DM1,T1,T3)..GEN W(TILT CAB) |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37080 |
BU100,101,111,14#..LHD..GEN W(FRONT HEATOR OR BOOSTVENTILATOR) |
1 | ||
| 57408-37140 |
BU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58271-37011 |
BU10#,111,14#,21#,22#,RZU100,YU210..DM1,DM6,T1,T2,T3,T4 |
1 | ||
| 58271-37011 |
BU10#,11#,14#,21#,22#,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58272-37010 |
BU212..LHD..TD;BU222..EUR,GEN,SA;BU212..30T..TD..CBU;BU212..RHD..(25T,40T)..(GEN,SA);BU10#,11#,14#,211,213,221,223,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 58272-37010 |
BU212..30T..TD;BU212,222..(25T,40T)..(EUR,GEN,SA);BU10#,111,14#,211,213,221,223,RZU100,YU210..DM1,DM6,T1,T2,T3,T4 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-37051 |
BU10#,111,112,14#..LHD |
1 | ||
| 58101-37050 |
BU10#,111,112,14#..LHD |
1 | ||
| 58101-37054 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-37051 |
BU10#,111,112,14#..LHD |
1 | ||
| 58101-37050 |
BU10#,111,112,14#..LHD |
1 | ||
| 58101-37054 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 50819-37020 |
BU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 50819-37020 |
BU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN |
1 | ||
| 58119H - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 58119-95400 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-37011 |
BU10#,111,14#,RZU100 |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-37011 |
BU10#,111,14#,RZU100 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37011 |
BU10#,111,14#,RZU100 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37011 |
BU10#,111,14#,RZU100 |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58335-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58336-37010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58848-37030 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58853-37010 |
BU142..TD;BU211..IV2;BU212..TD..CBU;BU100,102,112,213,223;BU101,141,222..ARL,EUR,SA;BU212..DSL..(GEN,SA)..IV3;BU101,111,141,RZU100..LHD |
1 | ||
| 58853-37010 |
BU101..SA;BU211..IV2;BU212..TD..CBU;BU212..DSL..GEN..IV3;BU10#,111,112,14#..LHD;BU100,141,222..(ARL,EUR,SA)..TB |
1 | ||
| 58936B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58930-95700B0 |
BU10#,111,112,14#,21#,22#..LHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-08347 | ||||
| 90105-10086 | ||||
| 90149-50039 | ||||
| 90159-60366 | ||||
| 90174-08008 | ||||
| 90176-08007 | ||||
| 90179-08123 | ||||
| 90179-08143 | ||||
| 90189-06201 | ||||
| 90467-0504522 | ||||
| 90467-06017B0 | ||||
| 90950-01641 | ||||
| 91621-40612 | ||||
| 91631-40616 | ||||
| 91651-40816 | ||||
| 91651-60618 | ||||
| 91651-60825 | ||||
| 93560-56020 | ||||
| 94220-00800 | ||||
| 94614-10600 | ||||

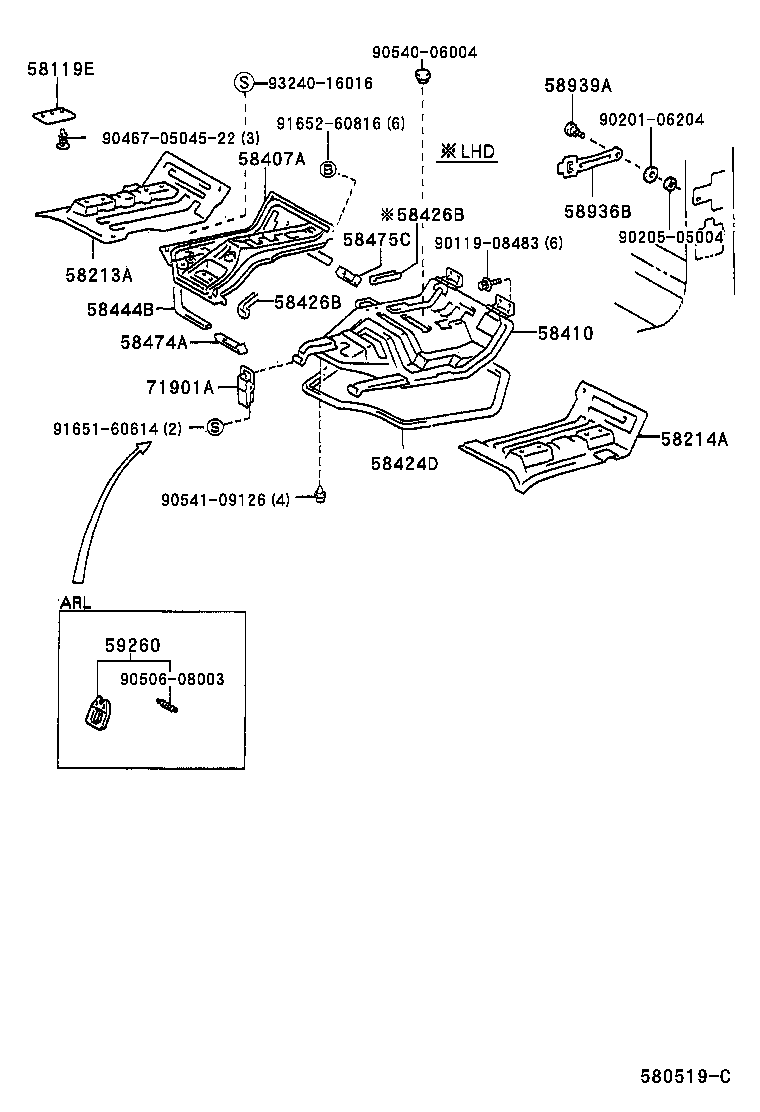

ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 50819-37020 |
BU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-37030 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-37030 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-37030 |
BU100,101,111,140,141..LHD..GEN |
1 | ||
| 58407-37031 |
BU100,101,111,140,141..LHD..GEN |
1 | ||
| 58407-37032 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-37090 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
BU212,222..RHD;BU10#,111,14#,211,221,RZU100,YU210 |
1 | ||
| 58424-95405 |
BU212,222..RHD..GEN;BU212,222..ARL,SA,TAIW;BU10#,11#,14#,211,221,RZU100,YU210 |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
RZU100;BU10#,111,112,14#..LHD |
2 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
RZU100;BU10#,111,112,14#..LHD |
2 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58444-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58474-95401 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95A01 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58475-95A01 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 58936B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58930-95700B0 |
BU10#,111,112,14#,21#,22#..LHD GRAY,TRIM1# |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71901-9570401 |
BU212,222..ARL;BU10#,111,112,14#,RZU100..EUR,GEN,SA,TAIW BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08483 | ||||
| 90201-06204 | ||||
| 90205-05004 | ||||
| 90467-0504522 | ||||
| 90506-08003 | ||||
| 90540-06004 | ||||
| 90541-09126 | ||||
| 91651-60614 | ||||
| 91652-60816 | ||||
| 93240-16016 | ||||

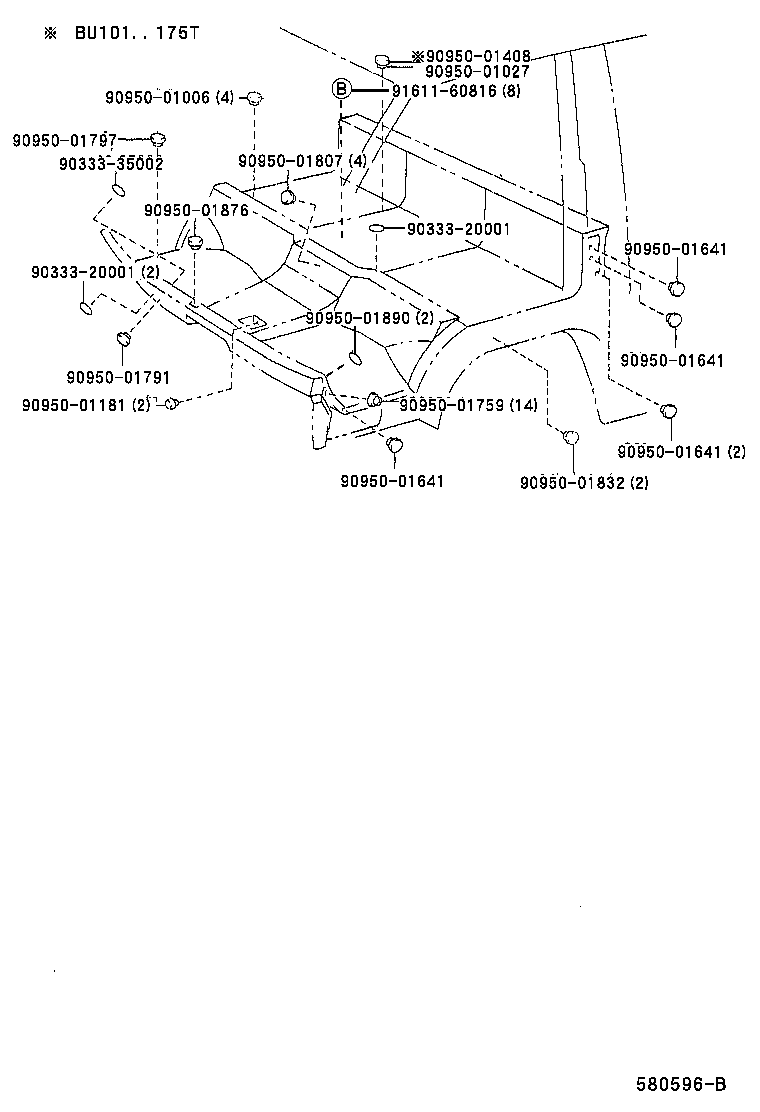

ILLUST NO. 3 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01181 | ||||
| 90950-01408 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01791 | ||||
| 90950-01797 | ||||
| 90950-01807 | ||||
| 90950-01832 | ||||
| 90950-01876 | ||||
| 90950-01890 | ||||
| 91611-60816 | ||||
