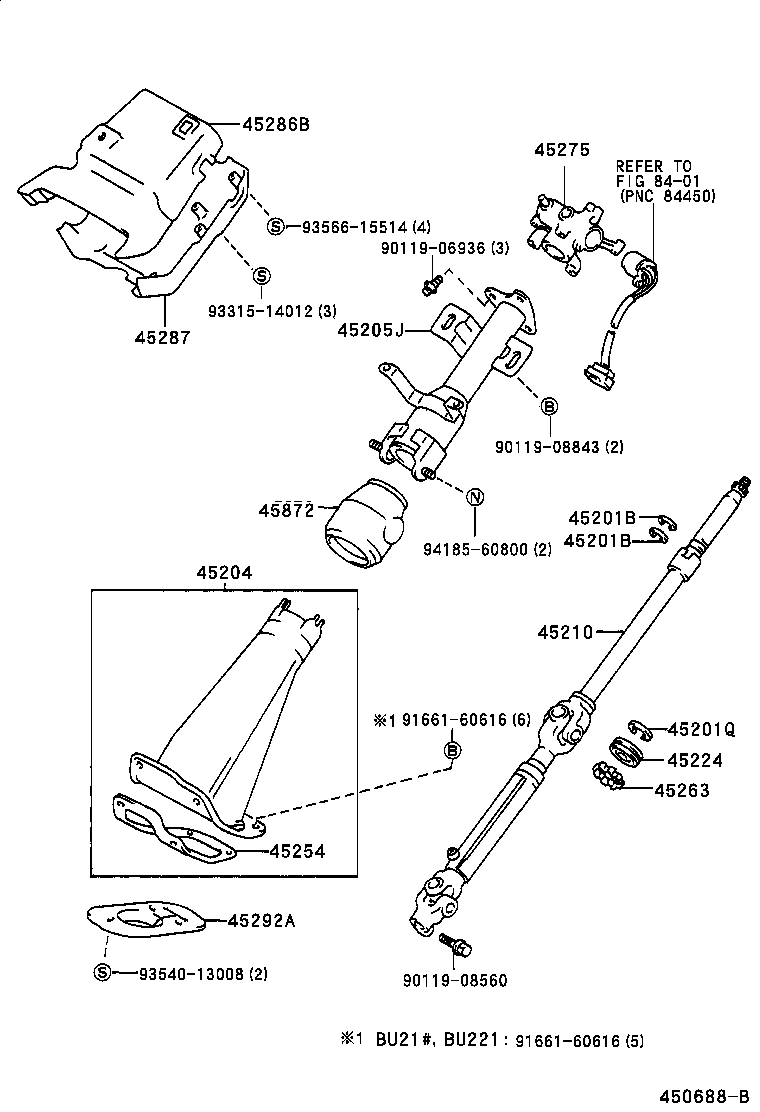

BU101L-TKMLS3 (1995)
Toyota Dyna200
(9505- )BU101..GEN,SA ; (9505- )BU212..ARL,GEN,TAIW ; (9505- )BU100,102,11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU10#,11#,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU10#,11#,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 96152-00300 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 96152-00300 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-37080 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 45204-37100 |
BU142..EUR;BU10#,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-37030 |
BU222..TD..SA;BU212,222..ARL,EUR,GEN;BU142,YU210..ARL,EUR,SA;BU211,RZU100..(20T,30T,40T)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37030 |
BU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,RZU100..(175T,20T,30T)..GEN;BU100,102,11#,140,141..(DM1,DM7,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37030 |
BU222..TD;BU212,222..ARL,GEN;BU142,211,YU210..(CBR,DSL)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37040 |
BU102..TD;BU211,221..GEN;BU212..LHD..40T..TD;BU100,101,111,14#..GEN,SA |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-36060 |
BU10#,11#,14#,RZU100 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45225-26010 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45225-26010 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36100 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45263-32010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45263-32010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36210 |
BU10#,111,14#,211,212,221,222,YU210 |
1 | ||
| 45307-36210 |
BU10#,111,14#,211,212,221,222,YU210 |
1 | ||
| 45307-36210 |
BU10#,11#,14#,211,212,221,222,YU210 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-37050B0 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 45286-37060B0 |
BU142..EUR;BU10#,111,112,140,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1,TW2) W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-37060B0 |
BU142..EUR;BU10#,111,112,140,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1,TW2) W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1# |
1 | ||
| 45287-37050B0 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-36040 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-36020 |
BU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,RZU100..(175T,20T,30T)..GEN;BU100,102,11#,140,141..(DM1,DM7,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45872-36020 |
BU222..TD..SA;BU212,222..ARL,EUR,GEN;BU142,YU210..ARL,EUR,SA;BU211,RZU100..(20T,30T,40T)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45872-36030 |
BU102..TD;BU211,221..GEN;BU212..LHD..40T..TD;BU100,101,111,14#..GEN,SA |
1 | ||
| 45872-36020 |
BU222..TD;BU212,222..ARL,GEN;BU142,211,YU210..(CBR,DSL)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| Common parts | ||||
| 90119-06936 | ||||
| 90119-08560 | ||||
| 90119-08843 | ||||
| 91661-60616 | ||||
| 93315-14012 | ||||
| 93540-13008 | ||||
| 93566-15514 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9505- )BU212 ; (9505- )BU141..GEN ; (9505- )BU142,222..20T,25T,40T ; (950

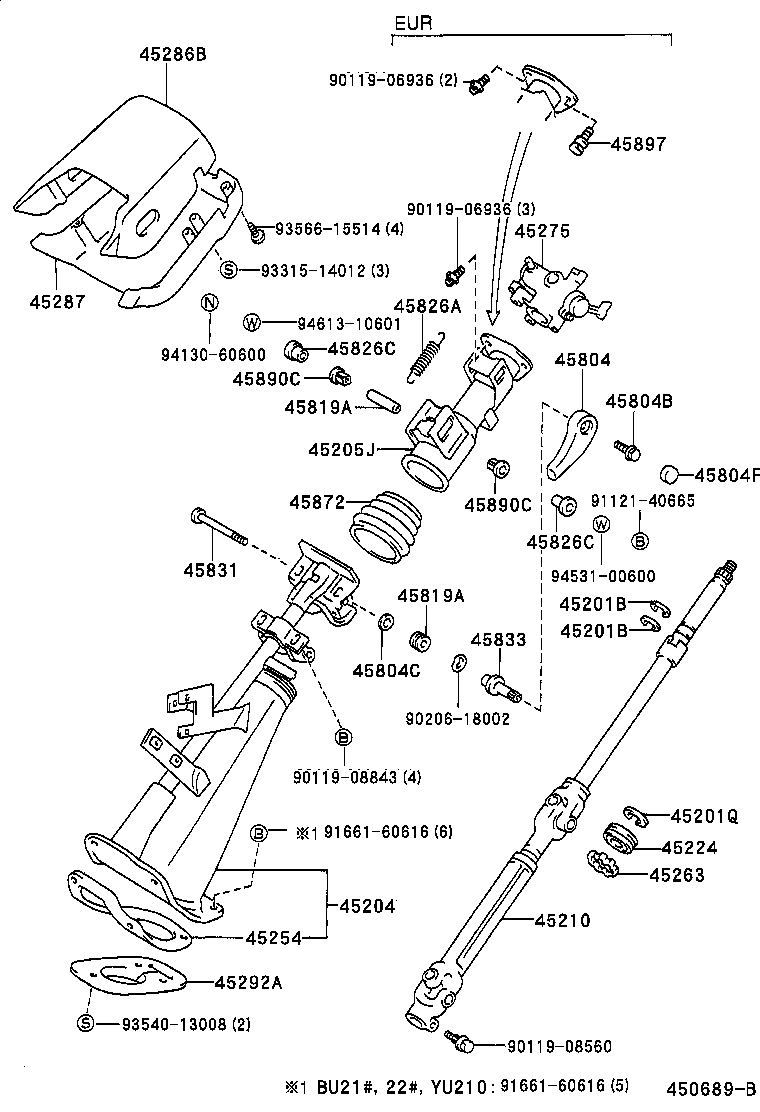

TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU10#,11#,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,11#,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU10#,11#,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,11#,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 90520-17269 |
BU10#,111,14#,21#,22#,RZU100,YU210 T=1.20 |
2 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 96152-00300 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 96152-00300 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 96152-00300 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 96152-00300 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 96152-00300 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-37080 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 45204-37080 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 45204-37100 |
BU142..EUR;BU10#,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45204-37100 |
BU142..EUR;BU10#,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-37030 |
BU222..TD..SA;BU212,222..ARL,EUR,GEN;BU142,YU210..ARL,EUR,SA;BU211,RZU100..(20T,30T,40T)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37030 |
BU222..TD..SA;BU212,222..ARL,EUR,GEN;BU142,YU210..ARL,EUR,SA;BU211,RZU100..(20T,30T,40T)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37030 |
BU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,RZU100..(175T,20T,30T)..GEN;BU100,102,11#,140,141..(DM1,DM7,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37030 |
BU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,RZU100..(175T,20T,30T)..GEN;BU100,102,11#,140,141..(DM1,DM7,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37030 |
BU222..TD;BU212,222..ARL,GEN;BU142,211,YU210..(CBR,DSL)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37030 |
BU222..TD;BU212,222..ARL,GEN;BU142,211,YU210..(CBR,DSL)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45205-37040 |
BU102..TD;BU211,221..GEN;BU212..LHD..40T..TD;BU100,101,111,14#..GEN,SA |
1 | ||
| 45205-37040 |
BU102..TD;BU211,221..GEN;BU212..LHD..40T..TD;BU100,101,111,14#..GEN,SA |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-36060 |
BU10#,11#,14#,RZU100 |
1 | ||
| 45210-36060 |
BU10#,11#,14#,RZU100 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45225-26010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45225-26010 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45225-26010 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45225-26010 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45225-26010 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=16 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36100 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 45254-36100 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45263-32010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45263-32010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45263-32010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45263-32010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45263-32010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36210 |
BU10#,111,14#,211,212,221,222,YU210 |
1 | ||
| 45307-36210 |
BU10#,111,14#,211,212,221,222,YU210 |
1 | ||
| 45307-36210 |
BU10#,111,14#,211,212,221,222,YU210 |
1 | ||
| 45307-36210 |
BU10#,111,14#,211,212,221,222,YU210 |
1 | ||
| 45307-36210 |
BU10#,11#,14#,211,212,221,222,YU210 |
1 | ||
| 45307-36210 |
BU10#,11#,14#,211,212,221,222,YU210 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-37050B0 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 45286-37050B0 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 45286-37060B0 |
BU142..EUR;BU10#,111,112,140,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1,TW2) W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1# |
1 | ||
| 45286-37060B0 |
BU142..EUR;BU10#,111,112,140,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1,TW2) W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-37060B0 |
BU142..EUR;BU10#,111,112,140,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1,TW2) W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1# |
1 | ||
| 45287-37060B0 |
BU142..EUR;BU10#,111,112,140,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1,TW2) W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1# |
1 | ||
| 45287-37050B0 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 45287-37050B0 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-36040 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 45292-36040 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-36010B0 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) GRAY,TRIM1# |
1 | ||
| 45804-36010B0 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) GRAY,TRIM1# |
1 | ||
| 45804B - BOLT(FOR STEERING TILT LEVER) | ||||
| 90105-10204 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 90105-10204 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 90105-10204 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90105-10204 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90105-10204 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90105-10204 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10489 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90201-10489 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90201-10489 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90201-10489 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90201-10489 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 90201-10489 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 45804F - PLUG(FOR STEERING TILT LEVER) | ||||
| 90339-28001B0 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) GRAY,TRIM1# |
1 | ||
| 90339-28001B0 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) GRAY,TRIM1# |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-06037 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) L=47.5 |
1 | ||
| 90387-06037 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) L=47.5 |
1 | ||
| 90386-19004 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) L=14 |
1 | ||
| 90386-19004 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) L=14 |
1 | ||
| 90386-19004 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) L=14 |
1 | ||
| 90386-19004 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) L=14 |
1 | ||
| 90386-19004 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) L=14 |
1 | ||
| 90386-19004 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) L=14 |
1 | ||
| 90387-06037 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) L=47.5 |
1 | ||
| 90387-06037 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) L=47.5 |
1 | ||
| 90387-06037 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) L=47.5 |
1 | ||
| 90387-06037 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) L=47.5 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-06037 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) L=47.5 |
1 | ||
| 90387-06037 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) L=47.5 |
1 | ||
| 90386-19004 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) L=14 |
1 | ||
| 90386-19004 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) L=14 |
1 | ||
| 90386-19004 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) L=14 |
1 | ||
| 90386-19004 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) L=14 |
1 | ||
| 90386-19004 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) L=14 |
1 | ||
| 90386-19004 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) L=14 |
1 | ||
| 90387-06037 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) L=47.5 |
1 | ||
| 90387-06037 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) L=47.5 |
1 | ||
| 90387-06037 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) L=47.5 |
1 | ||
| 90387-06037 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) L=47.5 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-18018 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90507-18018 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90507-18018 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90507-18018 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90507-18018 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 90507-18018 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-10024 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90386-10024 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90386-10024 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
2 | ||
| 90386-10024 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
2 | ||
| 90386-10024 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
2 | ||
| 90386-10024 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-10024 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90386-10024 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
2 | ||
| 90386-10024 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
2 | ||
| 90386-10024 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
2 | ||
| 90386-10024 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
2 | ||
| 90386-10024 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
2 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-36010 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 45831-36010 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 45831-36010 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 45831-36010 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 45831-36010 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 45831-36010 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-36010 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 45833-36010 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 45833-36010 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 45833-36010 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 45833-36010 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 45833-36010 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-36020 |
BU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,RZU100..(175T,20T,30T)..GEN;BU100,102,11#,140,141..(DM1,DM7,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45872-36020 |
BU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,RZU100..(175T,20T,30T)..GEN;BU100,102,11#,140,141..(DM1,DM7,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45872-36020 |
BU222..TD..SA;BU212,222..ARL,EUR,GEN;BU142,YU210..ARL,EUR,SA;BU211,RZU100..(20T,30T,40T)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45872-36020 |
BU222..TD..SA;BU212,222..ARL,EUR,GEN;BU142,YU210..ARL,EUR,SA;BU211,RZU100..(20T,30T,40T)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45872-36030 |
BU102..TD;BU211,221..GEN;BU212..LHD..40T..TD;BU100,101,111,14#..GEN,SA |
1 | ||
| 45872-36030 |
BU102..TD;BU211,221..GEN;BU212..LHD..40T..TD;BU100,101,111,14#..GEN,SA |
1 | ||
| 45872-36020 |
BU222..TD;BU212,222..ARL,GEN;BU142,211,YU210..(CBR,DSL)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45872-36020 |
BU222..TD;BU212,222..ARL,GEN;BU142,211,YU210..(CBR,DSL)..(CBU,IV3);BU101,111,141,221..(DM1,T1,T3,TW2)..GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-12009 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) OD=20 |
2 | ||
| 90389-12009 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) OD=20 |
2 | ||
| 90389-12009 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) OD=20 |
2 | ||
| 90389-12009 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) OD=20 |
2 | ||
| 90389-12009 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) OD=20 |
2 | ||
| 90389-12009 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) OD=20 |
2 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-12009 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) OD=20 |
2 | ||
| 90389-12009 |
BU142,YU210..ARL,EUR,SA;BU211,212,221,222,RZU100..CBU,IV3;BU10#,11#,140,141,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW) OD=20 |
2 | ||
| 90389-12009 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) OD=20 |
2 | ||
| 90389-12009 |
BU211,212,222,YU210..CBU,IV3;BU101,111,14#,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN) OD=20 |
2 | ||
| 90389-12009 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) OD=20 |
2 | ||
| 90389-12009 |
BU142,YU210..ARL,EUR,SA;BU211,212,222,RZU100..CBU,IV3;BU101,111,141,213,221,223..(DM1,T1,T2,T3,TW2)..(ARL,GEN) OD=20 |
2 | ||
| Common parts | ||||
| 90119-06936 | ||||
| 90119-08560 | ||||
| 90119-08843 | ||||
| 90206-18002 | ||||
| 91121-40665 | ||||
| 91661-60616 | ||||
| 93315-14012 | ||||
| 93540-13008 | ||||
| 93566-15514 | ||||
| 94130-60600 | ||||
| 94531-00600 | ||||
| 94613-10601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
