BU101L-TKMLS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )14B,15BF,15BFT,3B

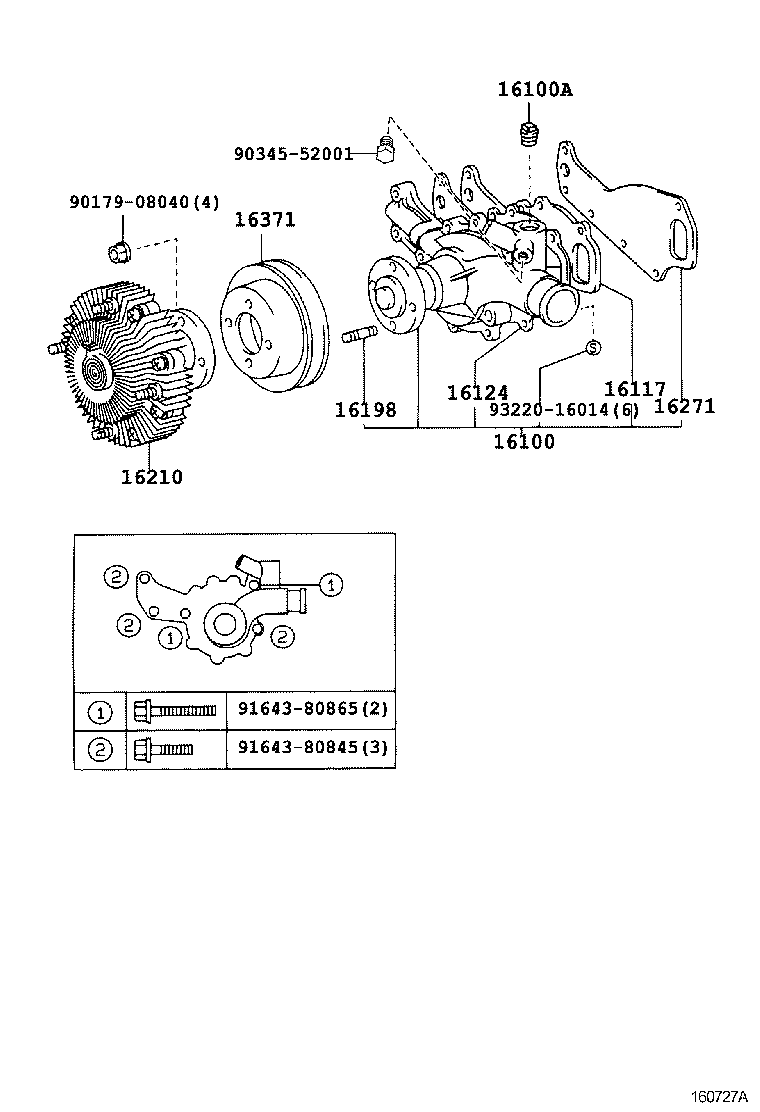

Click highlighted areas on diagram

diagram 16100 16100A 16117 16124 16198 16210 16271 16371 9017908040 9034552001 9164380845 9164380865 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59176

14B,3B..BU100,101,111,140,141,211,221..GEN,SA

 1
16100-59176

14B..BU101,111,141,211,221..GEN,SA

 1
16100A - PLUG, WATER PUMP
90345-54005

15BFT..BU212..40T;15BF,15BFT..BU212,222..EUR,SA;14B,15BFT,15BFTE,3B..BU10#,111,14#,211,213,221,223..(DM1,T1,T3,TW1,TW2)..(EUR,GEN)..(CBU,IV3)

 1
90345-54005

15BFT..BU142,212..LHD..(25T,40T);14B,3B..BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)

 1
16117 - PLATE, WATER PUMP
16117-58010

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

 1
16117-58010

14B,15BF,15BFT..BU10#,111,14#,211,212,221,222

 1
16124 - GASKET, WATER PUMP COVER
16124-58010

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

 1
16124-58010

14B,15BF,15BFT..BU10#,111,14#,211,212,221,222

 1
16271 - GASKET, WATER PUMP
16271-56031

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
16271-58010

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
16271-58010

14B,15B#..BU10#,111,14#,21#,22#

 1
16371 - PULLEY, FAN
16371-56070

14B..BU101,111,141,211,221..GEN,SA

 1
16371-56070

14B,3B..BU100,101,111,140,141,211,221..GEN,SA

 1
Common parts
90179-08040
90345-52001
91643-80845
91643-80865
93220-16014
