BU101L-TBMMS (1995)
Toyota Dyna200
(9505- )14B,15BF,3B..BU100,102..WT ; (9505-)14B..BU101..WT..GEN,SA

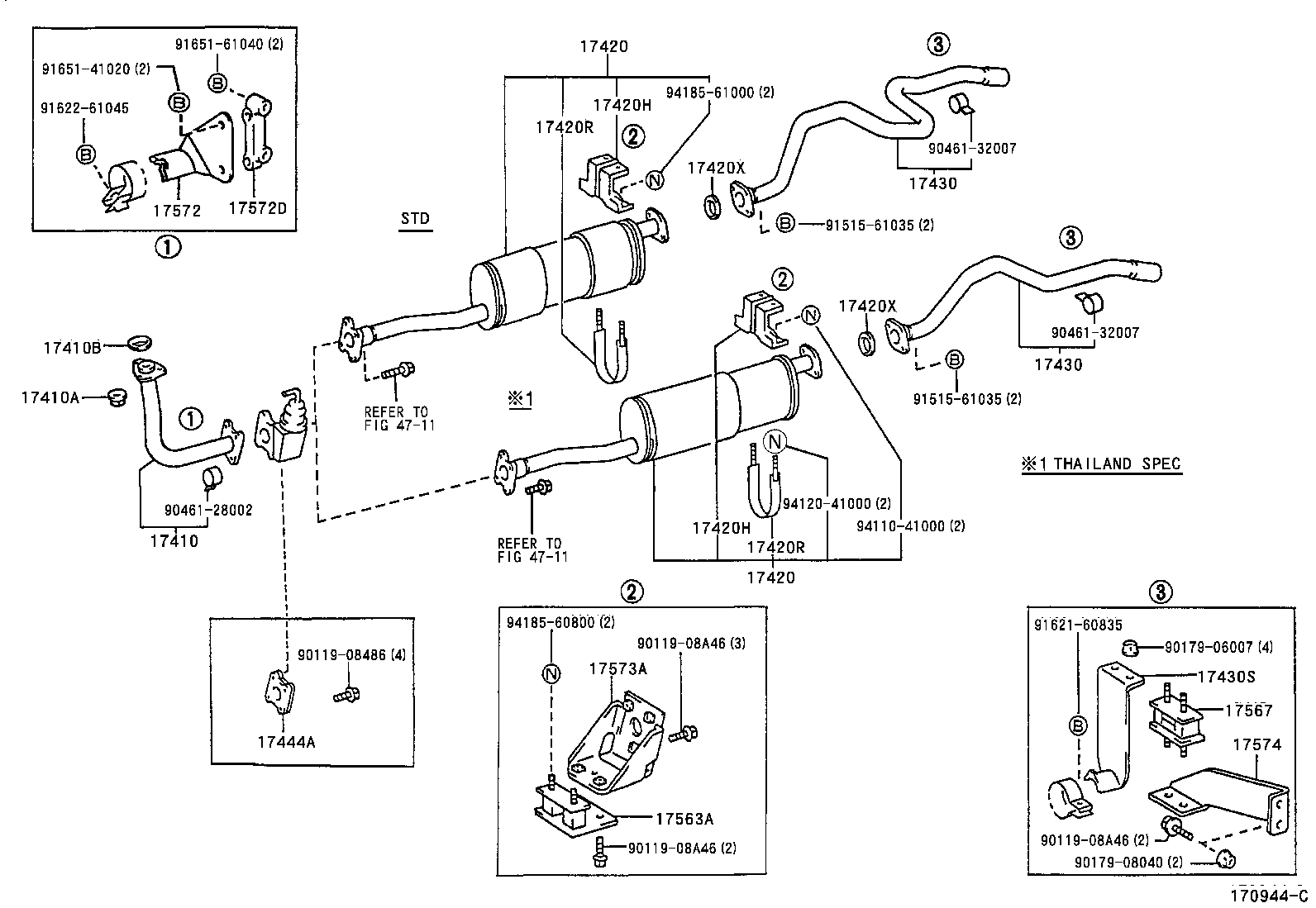

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-58190 |
14B,15BF,3B..BU10#,11#,14# |
1 | ||
| 17410-58191 |
14B,15BF,3B..BU10#,11#,14# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
14B..BU221..GEN;14B,15B#,3RZFE,4Y..BU101,111,14#,21#,222,223,RZU100,YU210 |
3 | ||
| 90179-10070 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#,3RZFE,4Y..BU10#,111,14#,212,213,22#,RZU100,YU210 |
3 | ||
| 90179-10070 |
14B,15B#,3B,3RZFE,4Y..BU10#,11#,14#,21#,22#,RZU100,YU210 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06067 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90917-06067 |
14B..BU221..GEN;14B,15B#..BU101,111,14#,21#,222,223 |
1 | ||
| 90917-06067 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#..BU10#,111,14#,212,213,22# |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58580 |
14B,3B..BU10#..WT |
1 | ||
| 17420-58581 |
14B..BU101..WT..(GEN,SA);14B,15BF,3B..BU100,102..WT |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58580 |
14B,3B..BU10#..WT |
1 | ||
| 17420-58581 |
14B..BU101..WT..(GEN,SA);14B,15BF,3B..BU100,102..WT |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-58030 |
14B,15BF,15BFT,3B..BU100,102,11#,14#;14B,3RZFE..BU101,RZU100..(175T,20T,30T)..(GEN,SA) |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-58030 |
14B,15BF,15BFT,3B..BU100,102,11#,14#;14B,3RZFE..BU101,RZU100..(175T,20T,30T)..(GEN,SA) |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-58020 |
14B,15BF,15BFT,3B..BU100,102,11#,14#;14B,3RZFE..BU101,RZU100..(175T,20T,30T)..(GEN,SA) |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-58020 |
14B,15BF,15BFT,3B..BU100,102,11#,14#;14B,3RZFE..BU101,RZU100..(175T,20T,30T)..(GEN,SA) |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06042 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90917-06042 |
14B..BU221..GEN;14B,15B#..BU101,111,14#,21#,222,223 |
1 | ||
| 90917-06042 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#..BU10#,111,14#,212,213,22# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06042 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90917-06042 |
14B..BU221..GEN;14B,15B#..BU101,111,14#,21#,222,223 |
1 | ||
| 90917-06042 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#..BU10#,111,14#,212,213,22# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58430 |
14B..BU101..WT..(GEN,SA);14B,15BF,15BFT,3B..BU100,102..T3..WT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58430 |
14B..BU101..WT..(GEN,SA);14B,15BF,15BFT,3B..BU100,102..T3..WT |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-47010 |
15BF..BU222..SA;15BF..BU212..TW1;14B..BU211..30T..SA;14B,15BF..BU142,211,221..ARL,GEN;14B,15BF,15BFT..BU101,142,212,222..GEN,SA,TAIW;14B,15BF,15BFT,3B,3RZFE,4Y..BU100,102,11#,140,141,RZU100,YU210 |
1 | ||
| 17444A - SPACER, EXHAUST FRONT PIPE | ||||
| 17404-58030 |
14B..BU211..30T..GEN;14B..BU101..(175T,20T)..(GEN,SA);14B,15BFT,3B..BU100,102,140,141..GEN,SA |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17563-58010 |
14B,15BF,15BFT,3B,3RZFE..BU10#,112,RZU100 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-17010 |
15BF..BU212..TW1;14B,15B#..BU142,212,222..GEN,SA,TAIW;14B,15BF,3B,3RZFE,4Y..BU10#,11#,14#,211,221,RZU100,YU210 |
1 | ||
| 17567-17010 |
15BF..BU222..SA;15BF..BU212..TW1;14B..BU211..30T..SA;14B,15BF..BU142,211,221..ARL,GEN;14B,15BF,15BFT,3RZFE,4Y..BU10#,111,14#,212,222,RZU100,YU210..GEN,SA |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58270 |
15BFT..BU142;14B,15BF,15BFT,3B..BU10#,112 |
1 | ||
| 17571-58270 |
15BFT..BU142;14B,15BF,3B..BU10#,112,141..(DM7,T1,T2,T3,TW2)..(175T,20T,30T) |
1 | ||
| 17571-58200 |
14B,15BF,3B..BU11#,14#..20T,25T |
1 | ||
| 17571-58200 |
14B,15BF,3B..BU110,111,14# |
1 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
15BFT..BU142;14B,15B#,3B,4Y..BU10#,112,213,223,YU210 |
1 | ||
| 17579-73010 |
15BFT..BU142;14B,15BF,3B,4Y..BU10#,112,141,YU210..(DM7,T1,T2,T3,TW2)..(175T,20T,30T) |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-58040 |
14B,15BF,15BFT,3B,3RZFE..BU10#,14#,RZU100..WT |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-58040 |
3RZFE..RZU100..15T;14B..BU211..30T..SA;14B,15BF,15BFT..BU142,211,221..ARL,GEN;14B,15BF,15BFT..BU101,212,222..WT..(GEN,SA,TAIW);14B,15BF,15BFT,3B,4Y..BU100,102,140,141,YU210..WT |
1 | ||
| Common parts | ||||
| 90119-08486 | ||||
| 90119-08A46 | ||||
| 90179-06007 | ||||
| 90179-08040 | ||||
| 90461-28002 | ||||
| 90461-32007 | ||||
| 91515-61035 | ||||
| 91621-60835 | ||||
| 91622-61045 | ||||
| 91651-41020 | ||||
| 91651-61040 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
