BU101L-TBMLS3 (1999)
Toyota Dyna200

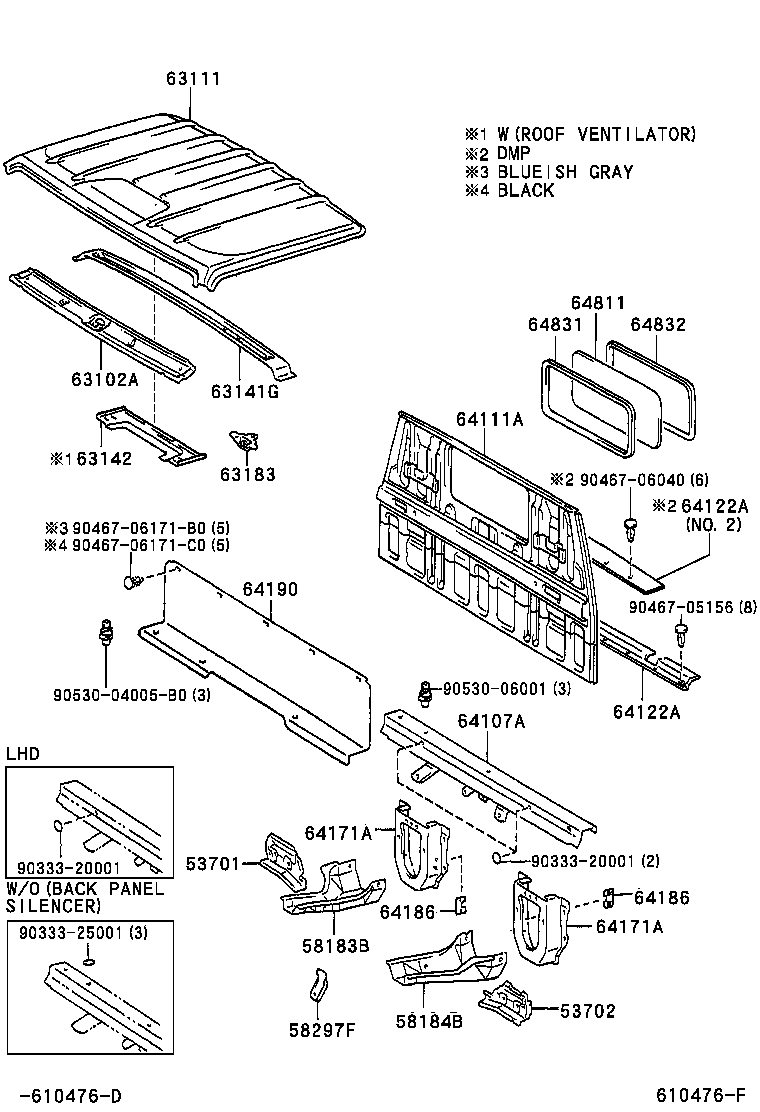

(9505-0105)BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37020 |
BU100..CBU;BU100..GEN..IV3;BU101,142..(TW1,TW2)..(ARL,EUR);BU101,111,140,141..(DM1,T1,T3,TW2)..(GEN,SA) |
1 | ||
| 58183-37010 |
BU142..T3..(20T,25T);BU101,RZU100..(20T,30T)..GEN;BU100,102,11#,140,141..(15T,20T,25T,30T)..DSL..(ARL,EUR,GEN,TAIW) W(TILT CAB) |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37020 |
BU100..CBU;BU100..GEN..IV3;BU101,142..(TW1,TW2)..(ARL,EUR);BU101,111,140,141..(DM1,T1,T3,TW2)..(GEN,SA) |
1 | ||
| 58184-37010 |
BU142..T3..(20T,25T);BU101,RZU100..(20T,30T)..GEN;BU100,102,11#,140,141..(15T,20T,25T,30T)..DSL..(ARL,EUR,GEN,TAIW) W(TILT CAB) |
1 | ||
| 58297F - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 | ||||
| 58297-95401 |
BU100,101,111,14#,211,221..LHD..(20T,25T,30T,40T)..GEN |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95418 |
RZU100..RHD;BU10#,111,112,14#..GEN,SA,TAIW |
1 | ||
| 63132-95420 |
BU100..CBU;BU100,142..LHD..IV3;BU101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN) W(ROOF VENTILATOR) |
1 | ||
| 63132-37010 |
BU10#,111,14#,RZU100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37020 |
BU142..T3..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3)..(EUR,GEN) W(ROOF VENTILATOR) |
1 | ||
| 63111-37010 |
RZU100..RHD;BU10#,111,112,14#..(15T,20T,25T,30T)..(GEN,SA,TAIW) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37010 |
RZU100..RHD;BU10#,111,112,14#..(DM1,DM6,DM7,T1,T2,T3,T4)..(EUR,GEN,SA,TAIW) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-95400 |
BU142..T3..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3)..(EUR,GEN) |
1 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-37220 |
BU10#,111,112,14#..LHD..(DM1,DM7,T2,T3,T4) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37320 |
BU100,101,111,140,141..LHD..(DM1,T3)..GEN |
1 | ||
| 64100-37310 |
BU100,101,111,140,141..LHD..(DM1,T3)..GEN W(FRONT HEAD REST=RH & LH) |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU101..WT..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,140,141..T3..GEN W(REAR *STAC & TILT CAB),RH |
1 | ||
| 64026-37030 |
BU101..WT..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,140,141..T3..GEN W(REAR *STAC & TILT CAB),LH |
1 | ||
| 64025-37010 |
RZU100..RHD;BU102,112..DM7,T2;BU101..T3..ST..TS W(TILT CAB & RR *STAC),RH |
2 | ||
| 64171-95408 |
BU100,101,140,141..(T1,T3)..GEN RH |
2 | ||
| 64171-95408 |
BU101..LHD..WT;BU101..20T..GEN..TB;BU100,140,141..LHD..T3..GEN W(REAR *STAC),RH |
1 | ||
| 64026-37040 |
BU101..LHD..WT;BU101..20T..GEN..TB;BU100,140,141..LHD..T3..GEN W(REAR *STAC),LH |
1 | ||
| 64025-37010 |
BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU100,140,141..T3..GEN W(TILT CAB) |
2 | ||
| 64025-37010 |
BU101..T3..ST..TS W(TILT CAB & RR *STAC) |
2 | ||
| 64025-37010 |
BU101..T3..ST..TS W(FRONT SEAT BELT=ELR & TILT CAB),RH |
1 | ||
| 64171-95408 |
BU101..T3..ST..TS SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR) |
1 | ||
| 64026-37040 |
BU101..T3..ST..TS SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR),LH |
1 | ||
| 64171-95408 |
BU141..RHD..GEN;BU101..(20T,30T)..GEN |
2 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU101..WT..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,140,141..T3..GEN W(REAR *STAC & TILT CAB),RH |
1 | ||
| 64026-37030 |
BU101..WT..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,140,141..T3..GEN W(REAR *STAC & TILT CAB),LH |
1 | ||
| 64025-37010 |
RZU100..RHD;BU102,112..DM7,T2;BU101..T3..ST..TS W(TILT CAB & RR *STAC),RH |
2 | ||
| 64171-95408 |
BU100,101,140,141..(T1,T3)..GEN RH |
2 | ||
| 64171-95408 |
BU101..LHD..WT;BU101..20T..GEN..TB;BU100,140,141..LHD..T3..GEN W(REAR *STAC),RH |
1 | ||
| 64026-37040 |
BU101..LHD..WT;BU101..20T..GEN..TB;BU100,140,141..LHD..T3..GEN W(REAR *STAC),LH |
1 | ||
| 64025-37010 |
BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU100,140,141..T3..GEN W(TILT CAB) |
2 | ||
| 64025-37010 |
BU101..T3..ST..TS W(TILT CAB & RR *STAC) |
2 | ||
| 64025-37010 |
BU101..T3..ST..TS W(FRONT SEAT BELT=ELR & TILT CAB),RH |
1 | ||
| 64171-95408 |
BU101..T3..ST..TS SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR) |
1 | ||
| 64026-37040 |
BU101..T3..ST..TS SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR),LH |
1 | ||
| 64171-95408 |
BU141..RHD..GEN;BU101..(20T,30T)..GEN |
2 | ||
| 64186 - RETAINER, REAR MOUNTING BRACKET | ||||
| 64186-95A00 |
BU100..CBU;BU140,141..LHD..GEN;BU111,142,211..DM1,TW1;BU101..(T3,TW2)..ST..TS;BU101..RHD..WT..GEN..IV3;BU100,RZU100..(20T,30T)..GEN..IV3 |
2 | ||
| 64186-95A00 |
BU141..LHD;RZU100..RHD;BU101..LHD..WT..CBU;BU111,142,211..DM1,TW1;BU101..T3..GEN..IV3..TS;BU101..(T3,TW2)..ST..CBU |
2 | ||
| 64186 - RETAINER, REAR MOUNTING BRACKET | ||||
| 64186-95A00 |
BU100..CBU;BU140,141..LHD..GEN;BU111,142,211..DM1,TW1;BU101..(T3,TW2)..ST..TS;BU101..RHD..WT..GEN..IV3;BU100,RZU100..(20T,30T)..GEN..IV3 |
2 | ||
| 64186-95A00 |
BU141..LHD;RZU100..RHD;BU101..LHD..WT..CBU;BU111,142,211..DM1,TW1;BU101..T3..GEN..IV3..TS;BU101..(T3,TW2)..ST..CBU |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95409 |
BU10#,11#,14#..20T,25T,30T *TEM,T=3.5 |
1 | ||
| 64811-37020 |
BU100,101,14#..(T1,T3)..GEN *TEM,T=3.5,BRONZE |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95406 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 64831-95406 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95013 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64832-95013 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90467-05156 | ||||
| 90467-06040 | ||||
| 90467-06171B0 | ||||
| 90467-06171C0 | ||||
| 90530-04005B0 | ||||
| 90530-06001 | ||||

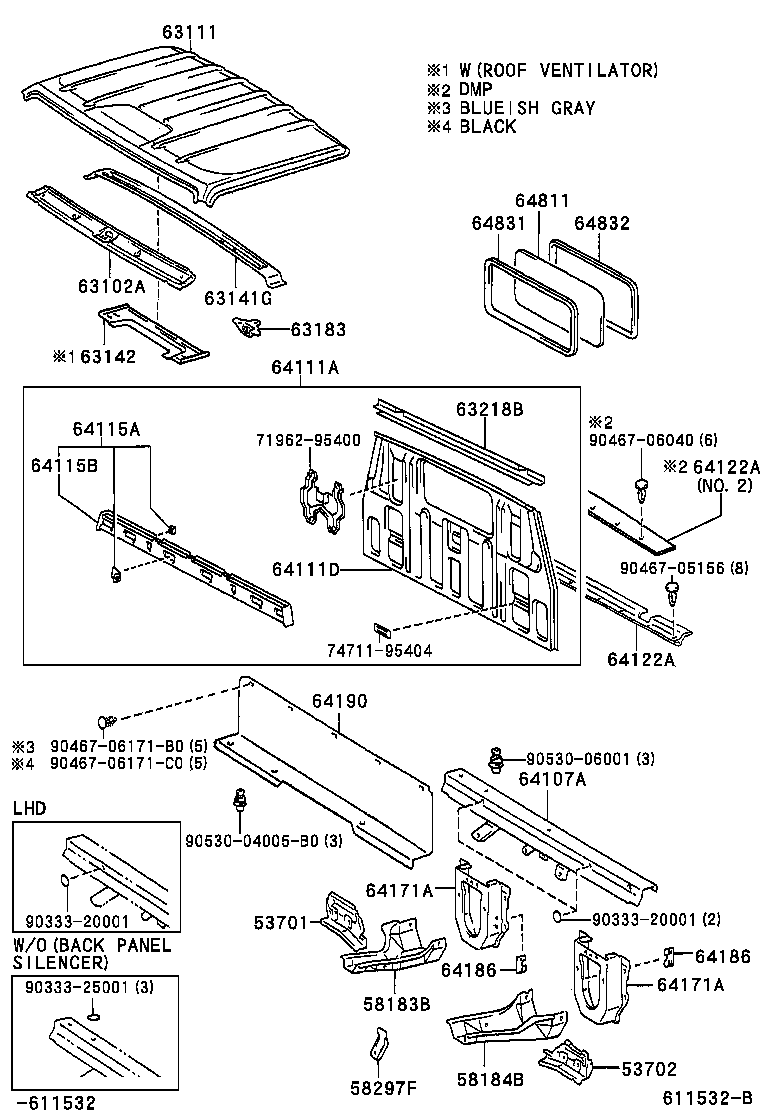

(0105- )BU10#,111,14#,RZU100..DM1,DM6,T1,T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-37010 |
BU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37020 |
BU100..CBU;BU100..GEN..IV3;BU101,142..(TW1,TW2)..(ARL,EUR);BU101,111,140,141..(DM1,T1,T3,TW2)..(GEN,SA) |
1 | ||
| 58183-37010 |
BU142..T3..(20T,25T);BU101,RZU100..(20T,30T)..GEN;BU100,102,11#,140,141..(15T,20T,25T,30T)..DSL..(ARL,EUR,GEN,TAIW) W(TILT CAB) |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37020 |
BU100..CBU;BU100..GEN..IV3;BU101,142..(TW1,TW2)..(ARL,EUR);BU101,111,140,141..(DM1,T1,T3,TW2)..(GEN,SA) |
1 | ||
| 58184-37010 |
BU142..T3..(20T,25T);BU101,RZU100..(20T,30T)..GEN;BU100,102,11#,140,141..(15T,20T,25T,30T)..DSL..(ARL,EUR,GEN,TAIW) W(TILT CAB) |
1 | ||
| 58297F - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 | ||||
| 58297-95401 |
BU100,101,111,14#,211,221..LHD..(20T,25T,30T,40T)..GEN |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95418 |
RZU100..RHD;BU10#,111,112,14#..GEN,SA,TAIW |
1 | ||
| 63132-95420 |
BU100..CBU;BU100,142..LHD..IV3;BU101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN) W(ROOF VENTILATOR) |
1 | ||
| 63132-37010 |
BU10#,111,14#,RZU100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37020 |
BU142..T3..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3)..(EUR,GEN) W(ROOF VENTILATOR) |
1 | ||
| 63111-37010 |
RZU100..RHD;BU10#,111,112,14#..(15T,20T,25T,30T)..(GEN,SA,TAIW) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37010 |
RZU100..RHD;BU10#,111,112,14#..(DM1,DM6,DM7,T1,T2,T3,T4)..(EUR,GEN,SA,TAIW) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-95400 |
BU142..T3..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3)..(EUR,GEN) |
1 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-95400 |
BU10#,111,14#,RZU100..DM1,DM6,T1,T2,T3,T4 |
1 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-37220 |
BU10#,111,112,14#..LHD..(DM1,DM7,T2,T3,T4) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37320 |
BU100,101,111,140,141..LHD..(DM1,T3)..GEN |
1 | ||
| 64100-37310 |
BU100,101,111,140,141..LHD..(DM1,T3)..GEN W(FRONT HEAD REST=RH & LH) |
1 | ||
| 64111D - PANEL, UPPER BACK | ||||
| 64111-37260 |
BU10#,111,14#,RZU100..DM1,DM6,T1,T2,T3,T4 |
1 | ||
| 64115A - REINFORCEMENT, BACK, UPPER | ||||
| 64105-95412 |
BU101,111,14#..LHD..(DM1,DM6,T3) |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-37030 |
BU10#,111,14#..DM1,DM6,T1,T2,T3 |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU101..WT..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,140,141..T3..GEN W(REAR *STAC & TILT CAB),RH |
1 | ||
| 64026-37030 |
BU101..WT..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,140,141..T3..GEN W(REAR *STAC & TILT CAB),LH |
1 | ||
| 64025-37010 |
RZU100..RHD;BU102,112..DM7,T2;BU101..T3..ST..TS W(TILT CAB & RR *STAC),RH |
2 | ||
| 64171-95408 |
BU100,101,140,141..(T1,T3)..GEN RH |
2 | ||
| 64171-95408 |
BU101..LHD..WT;BU101..20T..GEN..TB;BU100,140,141..LHD..T3..GEN W(REAR *STAC),RH |
1 | ||
| 64026-37040 |
BU101..LHD..WT;BU101..20T..GEN..TB;BU100,140,141..LHD..T3..GEN W(REAR *STAC),LH |
1 | ||
| 64025-37010 |
BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU100,140,141..T3..GEN W(TILT CAB) |
2 | ||
| 64025-37010 |
BU101..T3..ST..TS W(TILT CAB & RR *STAC) |
2 | ||
| 64025-37010 |
BU101..T3..ST..TS W(FRONT SEAT BELT=ELR & TILT CAB),RH |
1 | ||
| 64171-95408 |
BU101..T3..ST..TS SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR) |
1 | ||
| 64026-37040 |
BU101..T3..ST..TS SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR),LH |
1 | ||
| 64171-95408 |
BU141..RHD..GEN;BU101..(20T,30T)..GEN |
2 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU101..WT..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,140,141..T3..GEN W(REAR *STAC & TILT CAB),RH |
1 | ||
| 64026-37030 |
BU101..WT..CBU;BU101..ST..IV3;BU101..LHD..WT..IV3;BU100,140,141..T3..GEN W(REAR *STAC & TILT CAB),LH |
1 | ||
| 64025-37010 |
RZU100..RHD;BU102,112..DM7,T2;BU101..T3..ST..TS W(TILT CAB & RR *STAC),RH |
2 | ||
| 64171-95408 |
BU100,101,140,141..(T1,T3)..GEN RH |
2 | ||
| 64171-95408 |
BU101..LHD..WT;BU101..20T..GEN..TB;BU100,140,141..LHD..T3..GEN W(REAR *STAC),RH |
1 | ||
| 64026-37040 |
BU101..LHD..WT;BU101..20T..GEN..TB;BU100,140,141..LHD..T3..GEN W(REAR *STAC),LH |
1 | ||
| 64025-37010 |
BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU100,140,141..T3..GEN W(TILT CAB) |
2 | ||
| 64025-37010 |
BU101..T3..ST..TS W(TILT CAB & RR *STAC) |
2 | ||
| 64025-37010 |
BU101..T3..ST..TS W(FRONT SEAT BELT=ELR & TILT CAB),RH |
1 | ||
| 64171-95408 |
BU101..T3..ST..TS SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR) |
1 | ||
| 64026-37040 |
BU101..T3..ST..TS SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR),LH |
1 | ||
| 64171-95408 |
BU141..RHD..GEN;BU101..(20T,30T)..GEN |
2 | ||
| 64186 - RETAINER, REAR MOUNTING BRACKET | ||||
| 64186-95A00 |
BU100..CBU;BU140,141..LHD..GEN;BU111,142,211..DM1,TW1;BU101..(T3,TW2)..ST..TS;BU101..RHD..WT..GEN..IV3;BU100,RZU100..(20T,30T)..GEN..IV3 |
2 | ||
| 64186-95A00 |
BU141..LHD;RZU100..RHD;BU101..LHD..WT..CBU;BU111,142,211..DM1,TW1;BU101..T3..GEN..IV3..TS;BU101..(T3,TW2)..ST..CBU |
2 | ||
| 64186 - RETAINER, REAR MOUNTING BRACKET | ||||
| 64186-95A00 |
BU100..CBU;BU140,141..LHD..GEN;BU111,142,211..DM1,TW1;BU101..(T3,TW2)..ST..TS;BU101..RHD..WT..GEN..IV3;BU100,RZU100..(20T,30T)..GEN..IV3 |
2 | ||
| 64186-95A00 |
BU141..LHD;RZU100..RHD;BU101..LHD..WT..CBU;BU111,142,211..DM1,TW1;BU101..T3..GEN..IV3..TS;BU101..(T3,TW2)..ST..CBU |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95409 |
BU10#,11#,14#..20T,25T,30T *TEM,T=3.5 |
1 | ||
| 64811-37020 |
BU100,101,14#..(T1,T3)..GEN *TEM,T=3.5,BRONZE |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95406 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 64831-95406 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95013 |
RZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA) |
1 | ||
| 64832-95013 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 71962-95400 | ||||
| 74711-95404 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90467-05156 | ||||
| 90467-06040 | ||||
| 90467-06171B0 | ||||
| 90467-06171C0 | ||||
| 90530-04005B0 | ||||
| 90530-06001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
