BU100R-PSMJSQ (1995)
Toyota Dyna200
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44736 - BRACKET, AIR CLEANER | ||||
| 44736-36070 |
BU10#,14#,21#,22# |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36170 |
BU141,211,212,221,222;BU10#,11#,140,142..ARL,EUR,GEN,TAIW |
1 | ||
| 46712A - COVER, EXHAUST BRAKE BRACKET | ||||
| 46712-36060 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-36060 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-36060 |
BU211..IV2;BU101..ARL;BU102..15T;BU212..TD..CBU;BU102,142..TD..GEN;BU101..LHD..ST..TS;BU212..DSL..(GEN,SA)..IV3;BU100,141,222..ARL,EUR,SA L=20.5 |
1 | ||
| 46715-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW L=16.0 |
1 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46740 - CLEANER ASSY, EXHAUST RETARDER | ||||
| 46740-36080 |
BU141,211,212,221,222;BU10#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90401-12097 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46744 - CLEVIS, EXHAUST BRAKE ROD CLEVIS | ||||
| 46744-25010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36040 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36040 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46760A - CHAMBER ASSY, EXHAUST BRAKE | ||||
| 46760-36093 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46778A - BEARING, EXHAUST BRAKE CHAMBER ROD | ||||
| 46778-36060 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-36060 |
BU141,211,212,221,222;BU10#,11#,140,142..ARL,EUR,GEN,TAIW |
1 | ||
| 46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2 | ||||
| 46782-36130 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-36010 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
2 | ||
| Common parts | ||||
| 46791-25041 | ||||
| 46795-36260 | ||||
| 90119-08486 | ||||
| 90119-08860 | ||||
| 91612-60816 | ||||
| 94120-40800 | ||||
| 94181-10800 | ||||

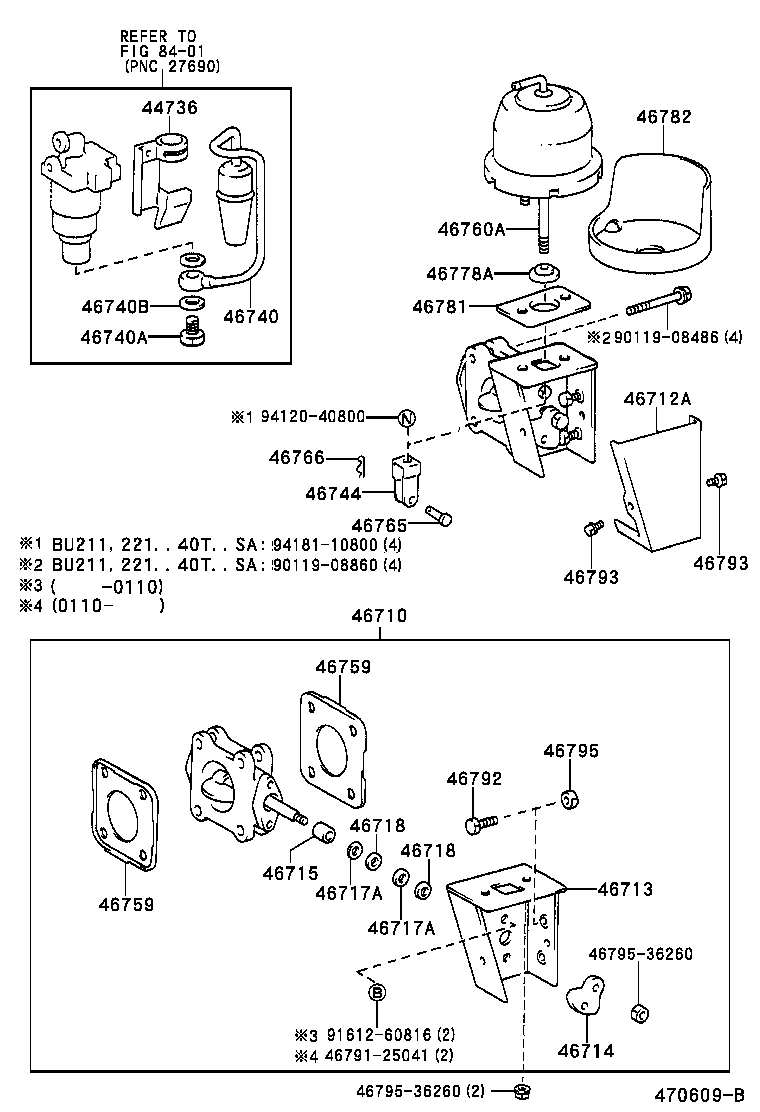

| Linked diagrams | ||||
| 8401 | ||||
