BU100L-TBMMS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU212..DSL..GEN..IV3 ; (9505- )BU10#,111,112,140,141..LHD

Click highlighted areas on diagram

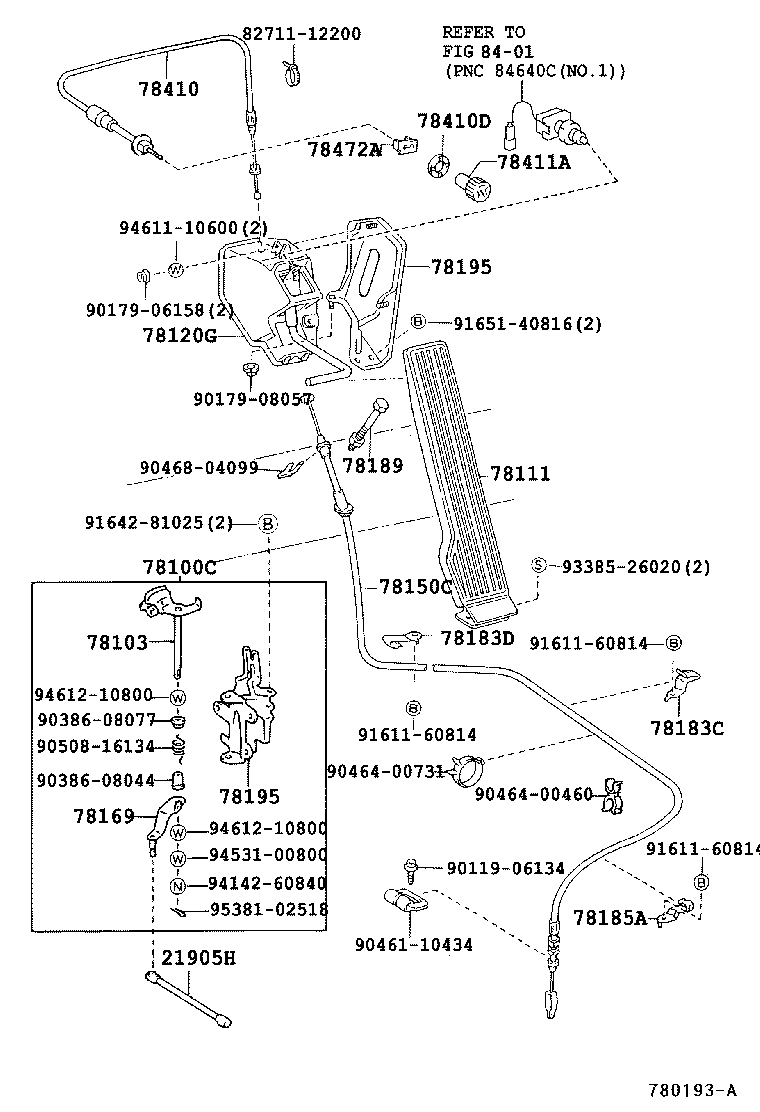

diagram 21905H 78100C 78103 78111 78120G 78150C 78169 78183C 78183D 78185A 78189 78195 78195 78410 78410D 78411A 78472A 8271112200 8401 9011906134 9017906158 9017908057 9038608044 9038608077 9046110434 9046400460 9046400731 9046804099 9050816134 9161160814 9161160814 9161160814 9164281025 9165140816 9338526020 9414260840 9453100800 9461110600 9461210800 9461210800 9538102518
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78010-37010

BU10#,111,112,14#,21#,22#,RZU100..LHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95401

BU222..LHD..(GEN,TAIW);BU10#,111,112,140,141,211,212,221..LHD

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37081

BU100,140..LHD

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-37010

BU211,221..GEN;BU211..30T..SA;BU10#,11#,14#,212,222,RZU100..DSL,EFI

 1
78183D - CLAMP, ACCELERATOR CONTROL CABLE
78183-37110

BU10#,111,112,140,141..LHD

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78183-37040

BU100,110,140

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95402

BU10#,111,112,14#,211,212,221,222,RZU100..LHD

 1
78195 - BRACKET, ACCELERATOR LINK
78195-37020

BU222..LHD..(GEN,TAIW);BU10#,111,112,140,141,211,212,221,RZU100..LHD

 1
78195 - BRACKET, ACCELERATOR LINK
78195-37020

BU222..LHD..(GEN,TAIW);BU10#,111,112,140,141,211,212,221,RZU100..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78404-37030

BU10#,111,112,140,141,21#,22#..LHD

 1
78404-37070

BU10#,111,112,140,141,211,212,221,222..LHD..(GEN,TAIW)

 1
78410D - NUT, THROTTLE
78314-95010

BU10#,11#,14#,211,212,221,222

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

BU10#,11#,14#,21#,22#

 1
78472A - SUPPORT, THROTTLE CONTROL CABLE
78472-95700B0

BU10#,11#,14#,211,212,221,222,YU210

BLUISH GRAY,TRIM1#

 1
Common parts
82711-12200
90119-06134
90179-06158
90179-08057
90386-08044
90386-08077
90461-10434
90464-00460
90464-00731
90468-04099
90508-16134
91611-60814
91642-81025
91651-40816
93385-26020
94142-60840
94531-00800
94611-10600
94612-10800
95381-02518
Linked diagrams
8401
