BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

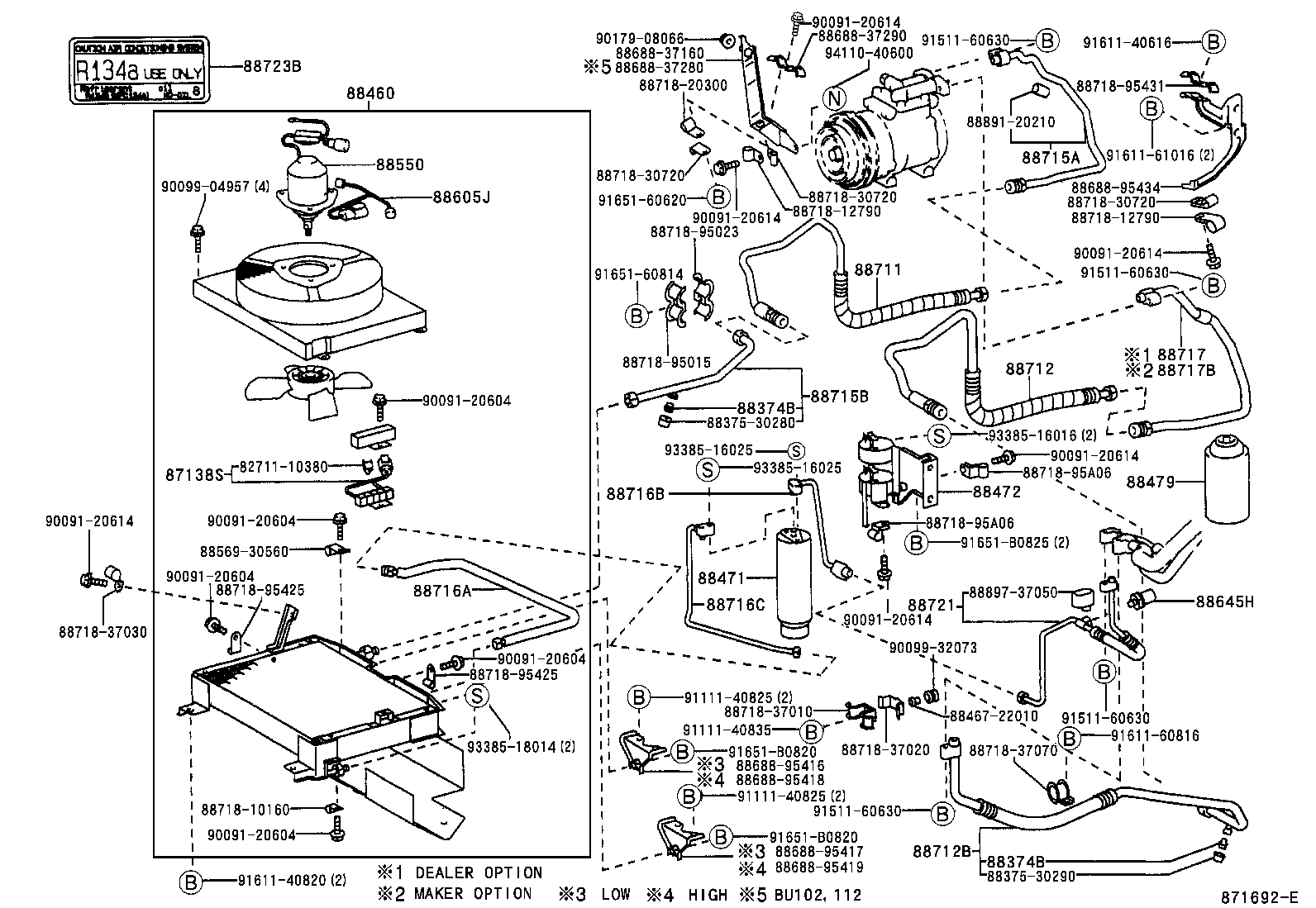

ILLUST NO. 1 OF 3(9505- )BU142..EUR ; (9505- )BU10#,111,112,140,141..LHD

Click highlighted areas on diagram

diagram 8271110380 87138S 88374B 88374B 8837530280 8837530290 88460 8846722010 88471 88472 88479 88550 8856930560 88605J 88645H 8868837160 8868837280 8868837290 8868895416 8868895417 8868895418 8868895419 8868895434 88711 88712 88712B 88715A 88715B 88716A 88716B 88716C 88717 88717B 8871810160 8871812790 8871812790 8871820300 8871830720 8871830720 8871830720 8871837010 8871837020 8871837030 8871837070 8871895015 8871895023 8871895425 8871895425 8871895431 8871895A06 8871895A06 88721 88723B 8889120210 8889737050 9009120604 9009120604 9009120604 9009120604 9009120604 9009120614 9009120614 9009120614 9009120614 9009120614 9009120614 9009904957 9009932073 9017908066 9111140825 9111140825 9111140835 9151160630 9151160630 9151160630 9151160630 9161140616 9161140820 9161160816 9161161016 9165160620 9165160814 91651B0820 91651B0820 91651B0825 9338516016 9338516025 9338516025 9338518014 9411040600
Part # Description Qty Price
87138S - RESISTOR, BLOWER
87138-37010

BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT

CHINA SPEC

 1
87138-37020

RZU100;BU102,212..ARL,TAIW;BU212..LHD..40T..TD;BU100,101,11#,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

DEALER OPTION

 1
87138-37010

BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(T3,TW2)..(175T,25T,30T)..GEN

CHINA SPEC

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

BU222;BU212..30T..GEN;BU10#,11#,14#,21#,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)

 2
88374-30010

BU212,222..LHD..TD..GEN;BU212,RZU100..(DSL,EFI)..IV3;BU10#,11#,14#,211,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,GEN,TAIW)..(CBU,IV3)

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

BU222;BU212..30T..GEN;BU10#,11#,14#,21#,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)

 2
88374-30010

BU212,222..LHD..TD..GEN;BU212,RZU100..(DSL,EFI)..IV3;BU10#,11#,14#,211,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,GEN,TAIW)..(CBU,IV3)

 2
88460 - CONDENSER ASSY, COOLER
88460-37250

BU100..175T..GEN;BU100,140..LHD..WT..GEN

CHINA SPEC

 1
88460-37240

BU100,140..LHD

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

MAKER OPTION

 1
88471-34010

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

DEALER OPTION

 1
88471-34010

BU100..ARL;BU100..175T..GEN;BU102,110,112,142,RZU100..DSL,EFI;BU100,111,140,141..LHD..(DM1,T3)..WT

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-37080

BU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

BU102..TAIW;BU212,222,RZU100..(20T,30T,40T)..(ARL,GEN,TAIW)..IV3;BU100,101,11#,14#,211,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

250G

 1
90986-02008

BU102..TAIW;BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU100,101,11#,14#,211,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

200G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-37060

BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT

 1
87104-37050

BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(T3,TW2)..(175T,25T,30T)..GEN

ALGERIA SPEC OR CHINA SPEC

 1
87104-37050

BU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU212..LHD..40T..TD;BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3)

ALGERIA SPEC OR CHINA SPEC

 1
87104-37060

BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU101,221..RHD..WT..GEN..IV3;BU100,111,222..(DM1,T3)..WT..GEN;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN

CHINA SPEC

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-37190

BU212..ARL;BU212..LHD..40T..TD;BU101,110,141,142,222..RHD..DSL..(ARL,GEN);BU100,111,140,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3)

NO.1

 1
88648-37040

RZU100;BU212..LHD..40T..TD;BU10#,111,112,140,141,211,221..(DM1,DM7,T1,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..(ARL,GEN)..(CBU,IV3)

NO.2

 1
88648-37040

BU212..TAIW;BU212..40T..GEN;BU10#,111,112,140,141,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)

NO.2

 1
88648-37040

BU212..40T..GEN;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN

NO.2

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37270

BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37430

BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-37340

BU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37120

BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37080

RZU100..RHD;BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37010

BU102..TAIW;BU100,101,111,112,140,141..LHD..(DM1,T3,TW2)..(GEN,TAIW)

DEALER OPTION

 1
88716-37210

BU10#,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2)..(EUR,GEN)

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37180

BU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-37170

BU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-37060

BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,GEN,TAIW)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-37060

BU100,101,111,140,141..(DM1,T1,T3,TW2)..(EUR,GEN)

 1
88721 - PIPE, COOLER REFRIGERANT SUCTION, NO.5
88721-37210

BU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

 1
Common parts
82711-10380
88375-30280
88375-30290
88467-22010
88569-30560
88688-37160
88688-37280
88688-37290
88688-95416
88688-95417
88688-95418
88688-95419
88688-95434
88718-10160
88718-12790
88718-20300
88718-30720
88718-37010
88718-37020
88718-37030
88718-37070
88718-95015
88718-95023
88718-95425
88718-95431
88718-95A06
88891-20210
88897-37050
90091-20604
90091-20614
90099-04957
90099-32073
90179-08066
91111-40825
91111-40835
91511-60630
91611-40616
91611-40820
91611-60816
91611-61016
91651-60620
91651-60814
91651-B0820
91651-B0825
93385-16016
93385-16025
93385-18014
94110-40600

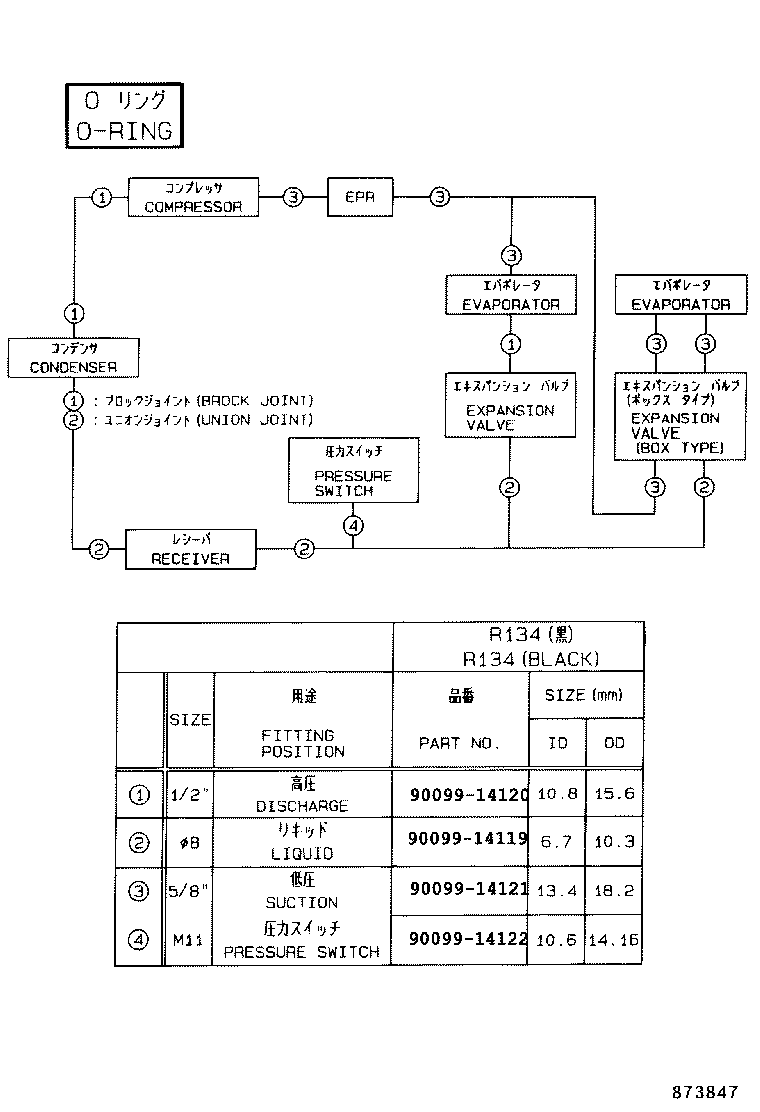

ILLUST NO. 3 OF 3(9505- )BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
