BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

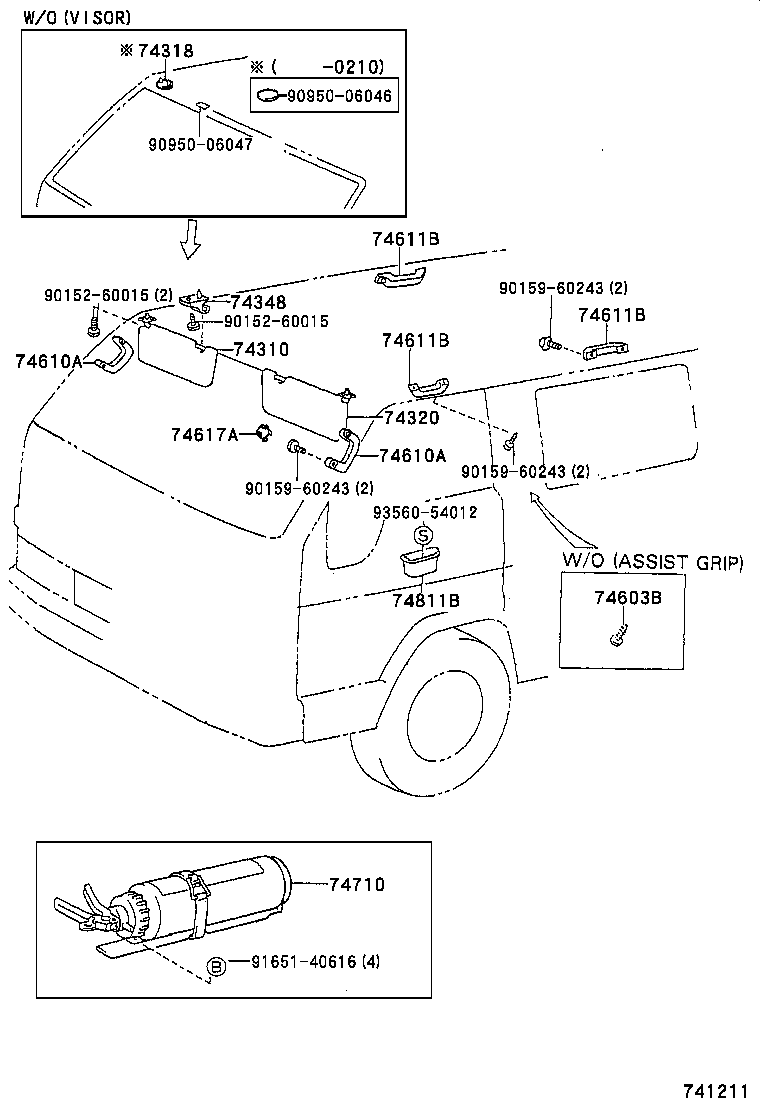

Click highlighted areas on diagram

diagram 74310 74318 74320 74348 74603B 74610A 74610A 74611B 74611B 74611B 74617A 74710 74811B 9015260015 9015260015 9015960243 9015960243 9015960243 9095006046 9095006047 9165140616 9356054012
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-25010B0

BU101..SA;BU111..LHD;BU101..ST..IV3;BU101..GEN..CBU;BU101..LHD..WT..IV3;BU100,102,112,14#,RZU100..GEN,SA,TAIW

LT. GRAY,TRIM1#

 1
74310-95430B0

BU142..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN)

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-95418B1

BU142..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN)

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

 1
74320-25010B0

BU10#,111,112,14#,RZU100..GEN,SA,TAIW

LT. GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-25010B0

BU10#,11#,14#,21#,22#,YU210

W(VISOR = PASSENGER SEAT),LT.GRAY,TRIM1#

 2
74348-25010B0

BU212..40T..GEN;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN

LT.GRAY,TRIM1#

 1
74348-25010B0

BU102..TD;BU212..LHD..40T..TD;BU100,101,111,14#,211,221..(DM1,T1,T3,TW2)..GEN

LT.GRAY,TRIM1#

 1
74348-25010B0

BU211,212..T3;BU10#,11#,14#,213,22#,RZU100,YU210

W(VISOR = PASSENGER SEAT),LT.GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74620-87001B0

BU100..CBU;BU100,RZU100..(20T,30T)..GEN..IV3;BU101,102,111,112,14#,211,212,221,222,YU210..EUR,GEN,SA,TAIW

GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74620-87001B0

BU100..CBU;BU100,RZU100..(20T,30T)..GEN..IV3;BU101,102,111,112,14#,211,212,221,222,YU210..EUR,GEN,SA,TAIW

GRAY,TRIM1#

 2
74611B - GRIP, ASSIST
74611-92601B0

BU100,101,142,211,212..TW1,TW2

GRAY,TRIM1#

 3
74611B - GRIP, ASSIST
74611-92601B0

BU100,101,142,211,212..TW1,TW2

GRAY,TRIM1#

 3
74611B - GRIP, ASSIST
74611-92601B0

BU100,101,142,211,212..TW1,TW2

GRAY,TRIM1#

 3
74811B - HANDLE, DOOR PULL
74811-87001B0

BU10#,11#,14#,21#,22#,RZU100,YU210

GRAY,TRIM1#

 2
Common parts
90152-60015
90159-60243
90950-06046
90950-06047
91651-40616
93560-54012
