BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,11#,14#,RZU100

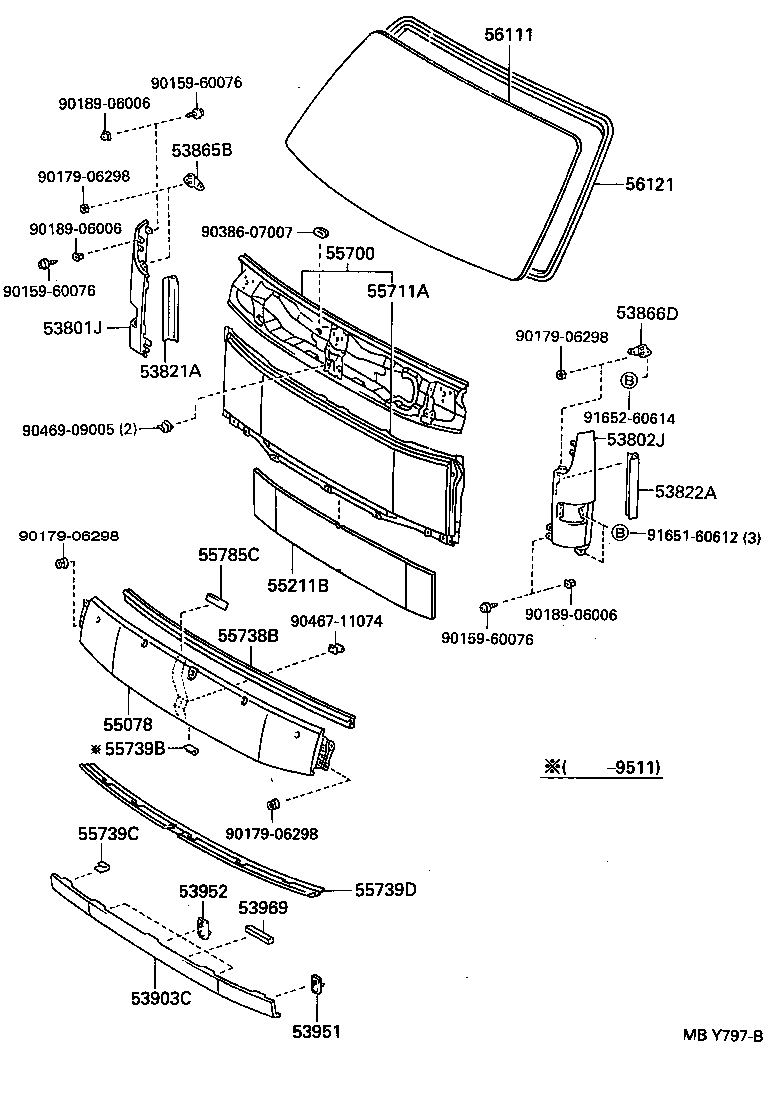

Click highlighted areas on diagram

diagram 53801J 53802J 53821A 53822A 53865B 53866D 53903C 53951 53952 53969 55078 55211B 55700 55711A 55738B 55739B 55739C 55739D 55785C 56111 56121 9015960076 9015960076 9015960076 9017906298 9017906298 9017906298 9017906298 9018906006 9018906006 9018906006 9038607007 9046711074 9046909005 9165160612 9165260614
Part # Description Qty Price
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
53821-37020

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
53821-37020

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
53865B - PLATE, FRONT FENDER EXTENSION, RH
53865-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
53866D - PLATE, FRONT FENDER EXTENSION, LH
53866-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
55078 - COVER SUB-ASSY, FRONT PANEL
55078-37020

BU10#,111,112,14#,RZU100..LHD

 1
55700 - PANEL ASSY, FRONT
55700-37040

BU10#,111,112,14#,RZU100..LHD

 1
55700-37080

BU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN

W(FRONT HEATOR OR BOOSTVENTILATOR)

 1
55711A - PANEL, FRONT, LOWER
55711-37030

BU10#,11#,14#,RZU100

 1
55738B - PROTECTOR, FRONT PANEL COVER, NO.1
55738-37010

BU10#,11#,14#,RZU100

 1
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37010

BU10#,11#,14#,21#,22#,YU210

 2
55739D - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37020

BU10#,11#,14#,RZU100

 1
55785C - PAD, FRONT PANEL COVER
55785-37010

BU10#,11#,14#

 1
82712-37010

BU10#,11#,14#,RZU100

 1
56111 - GLASS, WINDSHIELD
56111-37011

BU10#,11#,14#..ARL,GEN,TAIW

*TL,T=5.7

 1
56111-37080

BU10#,11#,14#,RZU100..ARL,GEN,SA,TAIW

*TL,T=5.7,GREEN

 1
56111-37080

BU10#,11#,14#,RZU100..ARL,GEN

*TL,T=5.7,GREEN

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-37010

BU10#,11#,14#,RZU100

 1
56121-37010

BU10#,11#,14#..ARL,GEN,TAIW

 1
Common parts
90159-60076
90179-06298
90189-06006
90386-07007
90467-11074
90469-09005
91651-60612
91652-60614
