BU100L-PSMJS (1995)
Toyota Dyna200

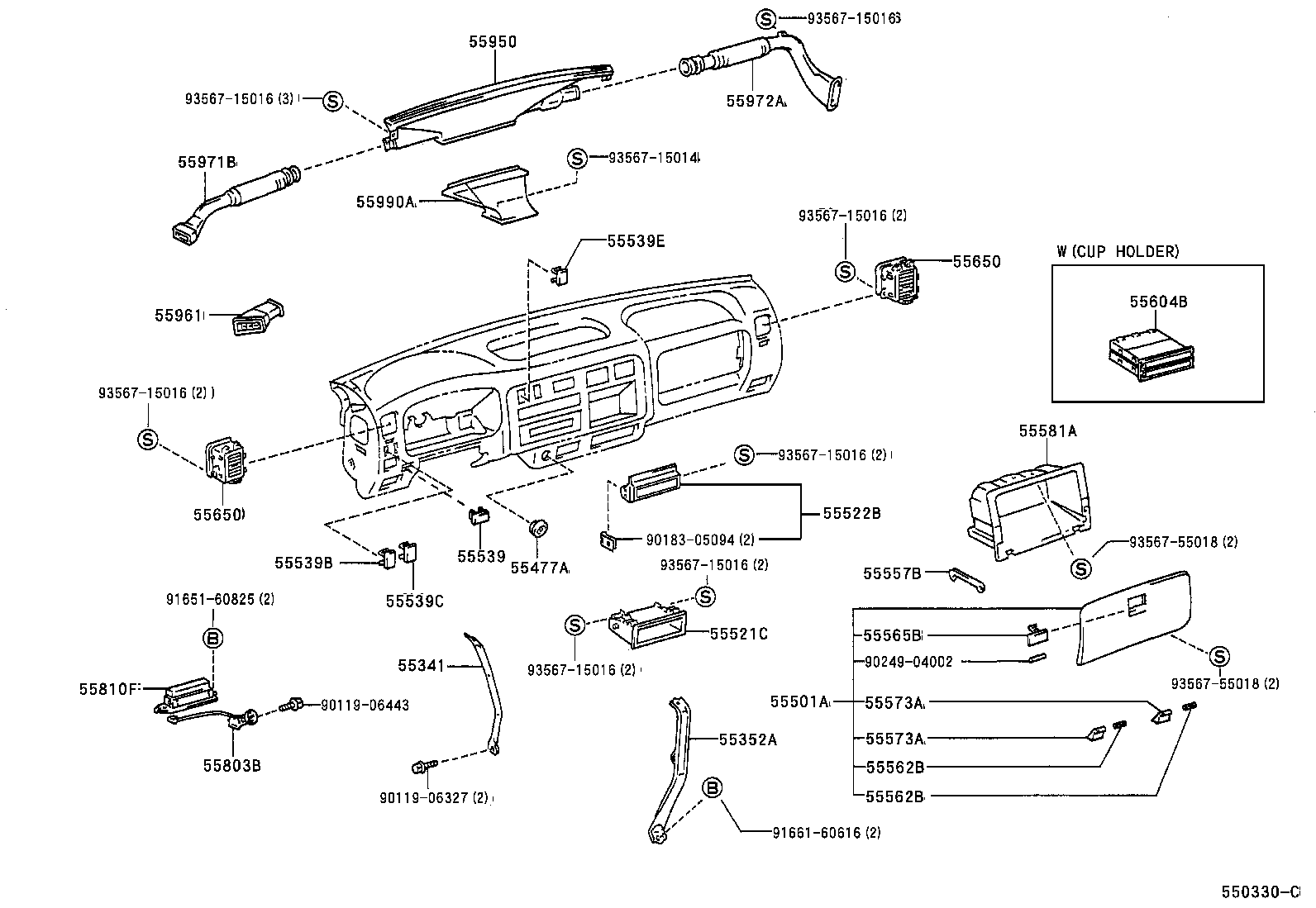

ILLUST NO. 2 OF 2(9505- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-37010B0 |
BU10#,11#,14#,21#,22#,RZU100,YU210 BLUISH GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
BU10#,11#,14#,21#,22#,RZU100,YU210..ARL,GEN,SA,TAIW |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
RZU100..RHD;BU10#,111,112,14#,211,212,221,222,YU210..GEN,SA,TAIW |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-95J00B0 |
BU212,222..DSL;BU212..(25T,30T)..TD;BU212,222..LHD..40T..TD;BU10#,11#,14#,211,221,YU210 GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-95J00B0 |
BU212..LHD..40T..TD;BU102,212,222,RZU100..RHD..(GEN,SA);BU100,101,111,14#,211,221,YU210..(DM1,T1,T3,TW1,TW2)..(GEN,SA) GRAY,TRIM1# |
1 | ||
| 55539-95J00B0 |
BU212..LHD..40T;BU212,222,RZU100..RHD..GEN;BU100,101,111,14#,211,221,YU210..(DM1,T1,T3,TW1,TW2)..(EUR,GEN,SA) GRAY,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-95J00C0 |
BU10#,11#,14#,21#,22#,RZU100,YU210..ARL,GEN,SA,TAIW BLACK,TRIM1# |
1 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-28010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-95J00 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-95J00 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 55565B - KNOB, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-37010B0 |
BU10#,11#,14#,21#,22#,RZU100,YU210 BLUISH GRAY,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37020B0 |
BU10#,11#,14#,21#,22#,RZU100,YU210 BLUISH GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37020B0 |
BU10#,11#,14#,21#,22#,RZU100,YU210 BLUISH GRAY,TRIM1# |
2 | ||
| 55803B - CABLE SUB-ASSY, FRONT SIDE VENTILATOR CONTROL | ||||
| 55803-37030 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)..GEN |
1 | ||
| 55810F - VENTILATOR ASSY, FRONT | ||||
| 55810-37030 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)..GEN |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-37020 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-37020B0 |
BU10#,111,112,14#,21#,22#,RZU100..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-37020 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-37020 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-37020 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| Common parts | ||||
| 90119-06327 | ||||
| 90119-06443 | ||||
| 90183-05094 | ||||
| 90249-04002 | ||||
| 91651-60825 | ||||
| 91661-60616 | ||||
| 93567-15014 | ||||
| 93567-15016 | ||||
| 93567-55018 | ||||

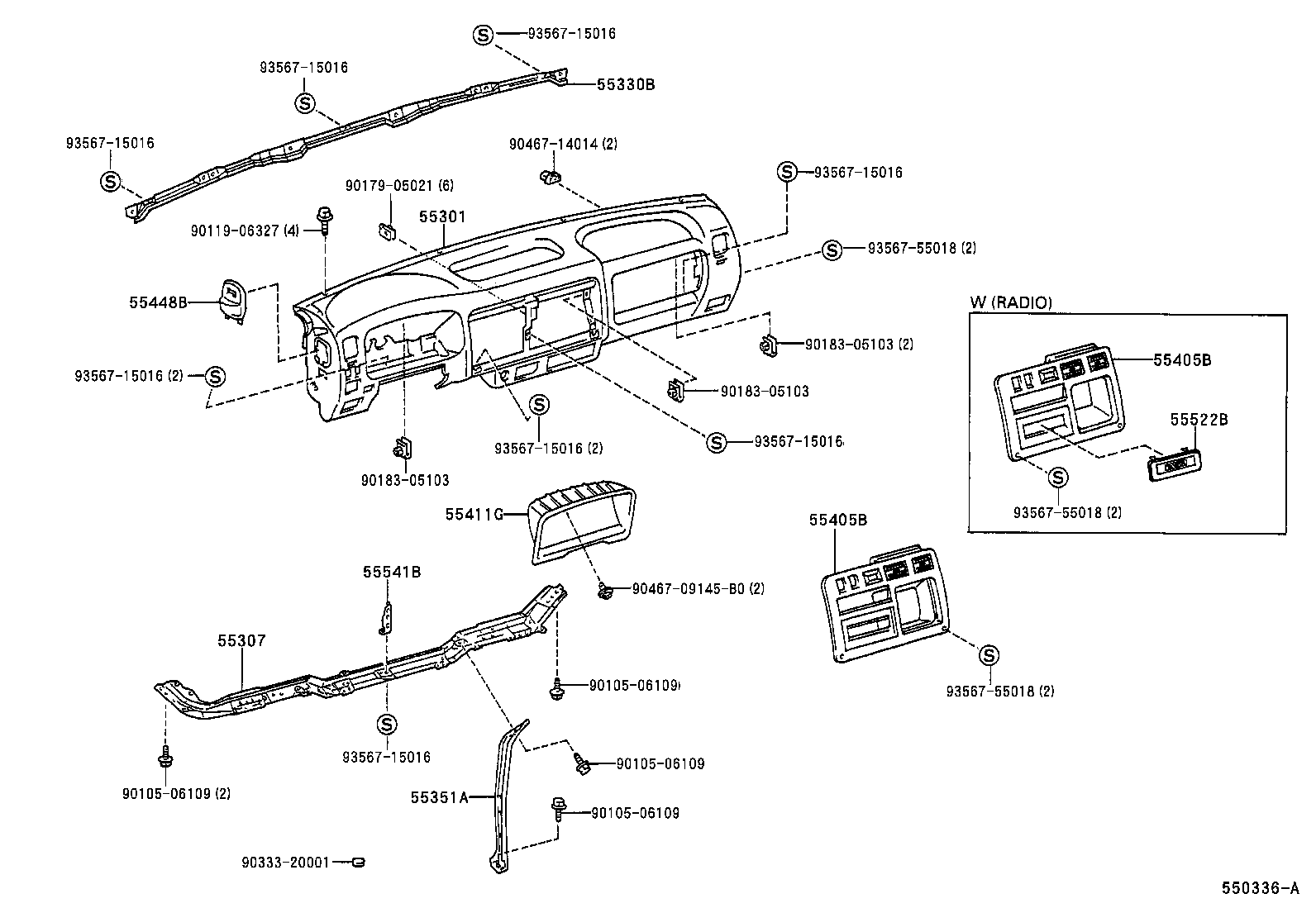

ILLUST NO. 1 OF 2(9505- )BU10#,111,112,14#,RZU100..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-37030B0 |
BU10#,111,112,14#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER | ||||
| 55307-37020 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-25010 |
BU10#,11#,14#,RZU100 |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-37020 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37060C0 |
BU10#,111,112,14#,21#,22#,RZU100..LHD..(GEN,TAIW) W(HEATER),BLACK,TRIM1# |
1 | ||
| 55405-37070C0 |
BU102,212..LHD..(15T,40T);BU100,101,111,14#,211,213,221,223,RZU100..LHD..(DM1,T3,T4,TW1,TW2)..GEN W(CLOCK & HEATER),BLACK,TRIM1# |
1 | ||
| 55405-37050C0 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)..GEN BLACK,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37060C0 |
BU10#,111,112,14#,21#,22#,RZU100..LHD..(GEN,TAIW) W(HEATER),BLACK,TRIM1# |
1 | ||
| 55405-37070C0 |
BU102,212..LHD..(15T,40T);BU100,101,111,14#,211,213,221,223,RZU100..LHD..(DM1,T3,T4,TW1,TW2)..GEN W(CLOCK & HEATER),BLACK,TRIM1# |
1 | ||
| 55405-37050C0 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)..GEN BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-37010C0 |
BU212,222..LHD;BU212..T3..ARL;BU10#,11#,14#,211,221,YU210 BLACK,TRIM1# |
1 | ||
| 55411-37010C0 |
BU10#,11#,14#,21#,22#,YU210 BLACK,TRIM1# |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-37010B0 |
BU10#,11#,14#,21#,22#,RZU100,YU210 BLUISH GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
RZU100..RHD;BU10#,111,112,14#,211,212,221,222,YU210..GEN,SA,TAIW |
1 | ||
| 55541B - RETAINER, RADIO TUNER OPENING, NO.1 | ||||
| 55541-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90119-06327 | ||||
| 90179-05021 | ||||
| 90183-05103 | ||||
| 90333-20001 | ||||
| 90467-09145B0 | ||||
| 90467-14014 | ||||
| 93567-15016 | ||||
| 93567-55018 | ||||
