BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,11#,14#,21#,22# ; (9703- )RZU100

Click highlighted areas on diagram

URETHANE

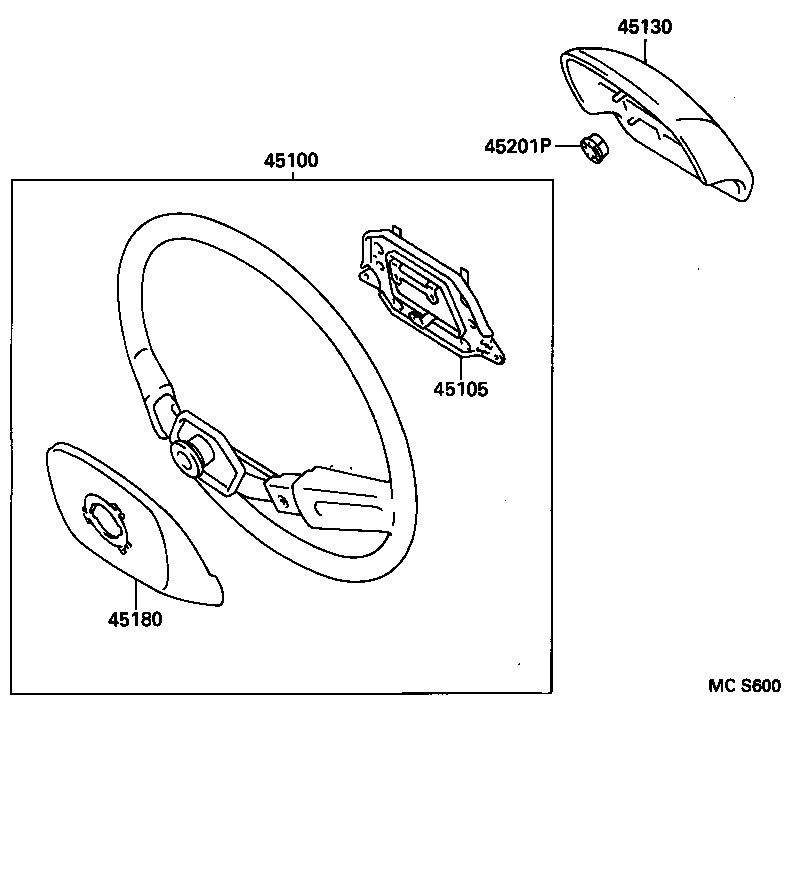

diagram 45100 45105 45130 45180 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36110B0

BU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA

2SPOKE,POLYPROPYLENE,GRAY,TRIM1#

 1
45100-36130B0

BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

2-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36010

BU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA

 1
45105-36020

BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

URETHANE

 1
45130 - BUTTON ASSY, HORN
45130-36090B0

BU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA

BLUISH GRAY,TRIM1#

 1
45130-36110B0

BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

URETHANE,BLUISH GRAY,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36020B0

BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

BU10#,11#,14#,21#,22#,RZU100,YU210

 1

(9505- )BU101..GEN,SA ; (9505- )BU100,102,111,14#,211,212,221,YU210 ; (9902-

Click highlighted areas on diagram

POLYPROPYLENE

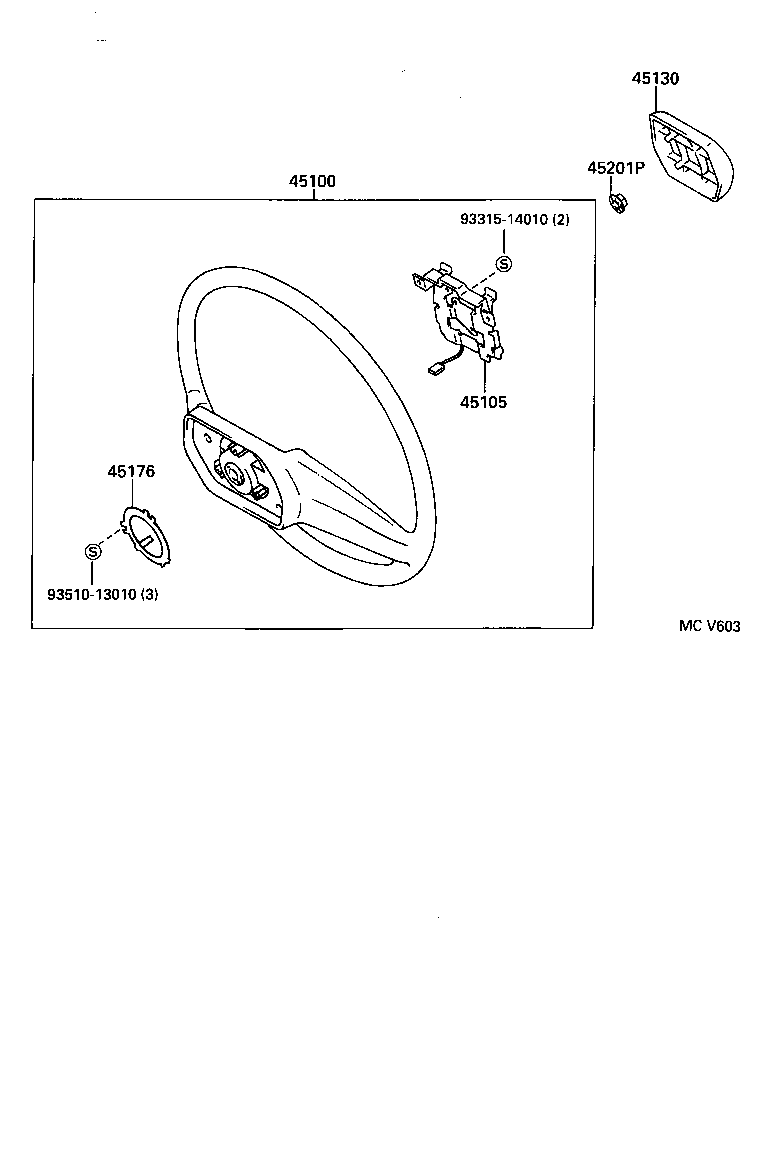

diagram 45100 45105 45130 45176 45201P 9331514010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36110B0

BU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA

2SPOKE,POLYPROPYLENE,GRAY,TRIM1#

 1
45100-36130B0

BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

2-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36010

BU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA

 1
45105-36020

BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

URETHANE

 1
45130 - BUTTON ASSY, HORN
45130-36090B0

BU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA

BLUISH GRAY,TRIM1#

 1
45130-36110B0

BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

URETHANE,BLUISH GRAY,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-36010

BU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
Common parts
93315-14010
93510-13010
