YY61R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ARL,GEN

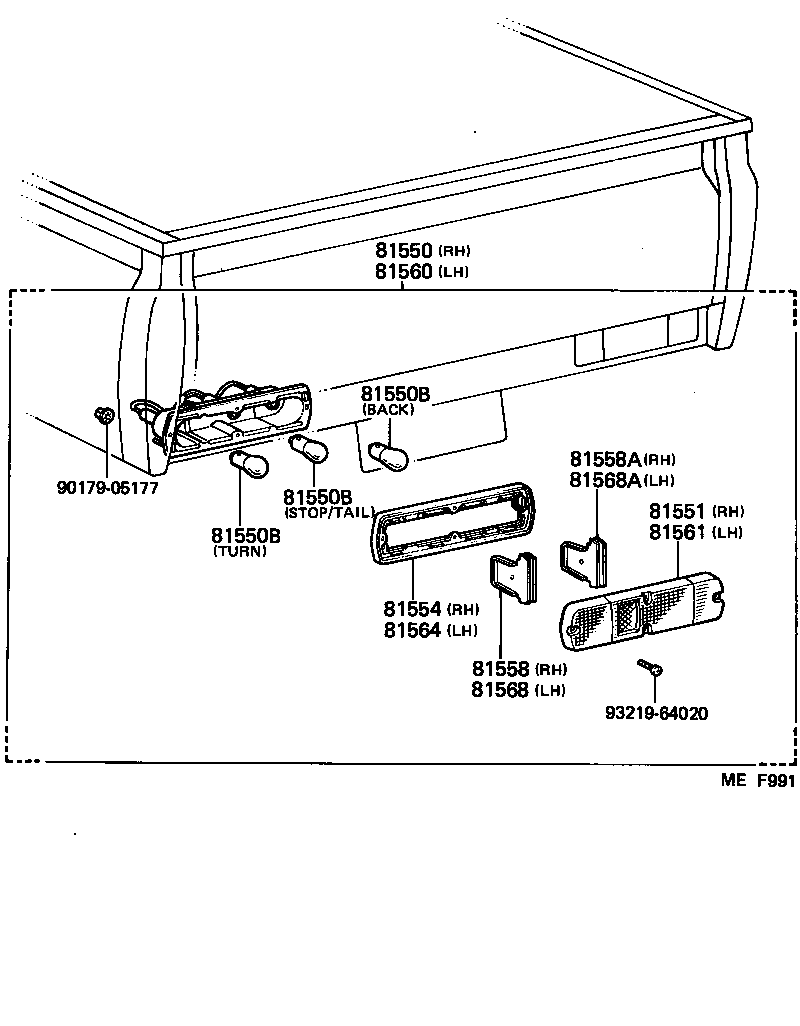

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81558 81558A 81560 81561 81564 81568 81568A 9017905177 9321964020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95012

LY60,YY5#,6#..ARL,GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LY60,YY5#,6#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
99132-11230

LY60,YY5#,6#..ARL,GEN

12V 23W,12V 23W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LY60,YY5#,6#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
99132-11230

LY60,YY5#,6#..ARL,GEN

12V 23W,12V 23W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LY60,YY5#,6#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
99132-11230

LY60,YY5#,6#..ARL,GEN

12V 23W,12V 23W(TURN OR BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060

LY60,YY5#,6#..ARL,GEN

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-25060

LY60,YY5#,6#..ARL,GEN

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

LY60,YY5#,6#..ARL,GEN

 1
81558A - SHADE, REAR COMBINATION LAMP, NO.2 RH
81557-25060

LY60,YY5#,6#..ARL,GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95012

LY60,YY5#,6#..ARL,GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040

LY60,YY5#,6#..ARL,GEN

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-25040

LY60,YY5#,6#..ARL,GEN

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

LY60,YY5#,6#..ARL,GEN

 1
81568A - SHADE, REAR COMBINATION LAMP, NO.2 LH
81557-25060

LY60,YY5#,6#..ARL,GEN

 1
Common parts
90179-05177
93219-64020
