YY61R-MDB (1985)
Toyota Dyna150

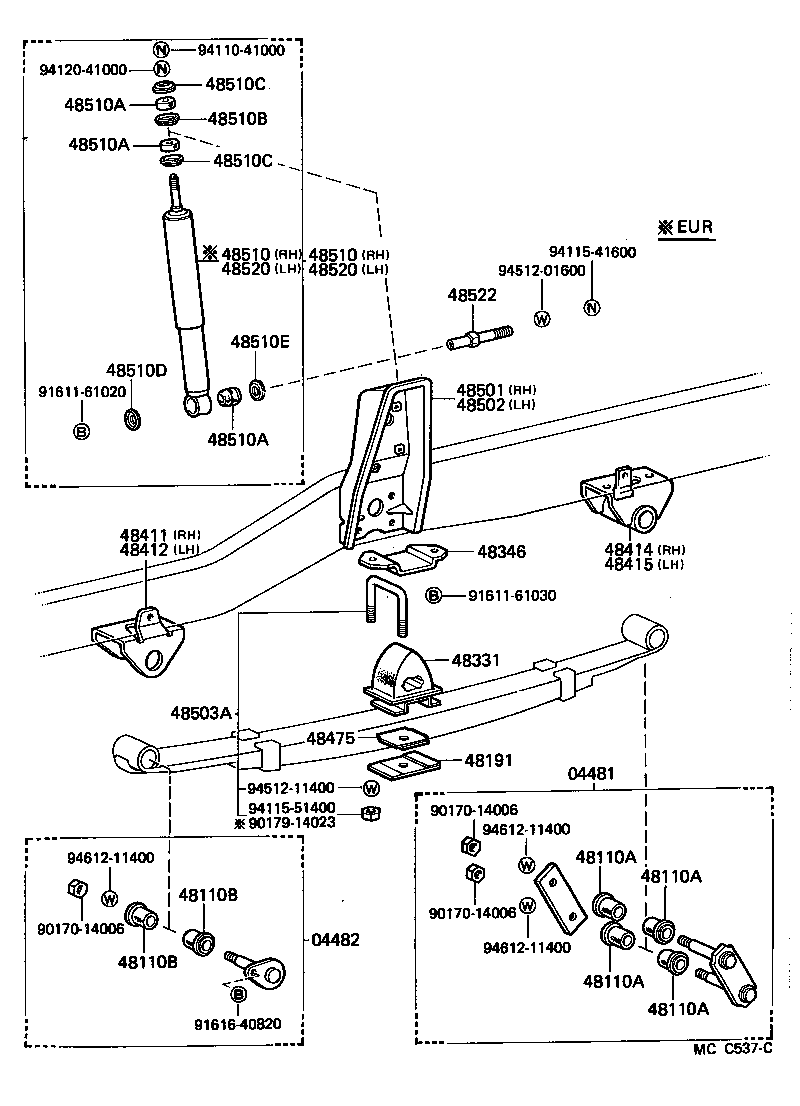

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-25031 |
LY60,YY5#,6# |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-25011 |
LY60,YY5#,6# |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY60,YY5#,6# |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY60,YY5#,6# |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY60,YY5#,6# |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY60,YY5#,6# |
8 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18005 |
LY60,YY5#,6# |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18005 |
LY60,YY5#,6# |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-25010 |
LY60,YY5#,6# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-36021 |
LY60,YY5#,6# |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-25090 |
YY5#,6# |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-25050 |
YY61..GEN;LY60,YY51,60 |
1 | ||
| 48411-25051 |
LY60,YY5#,6# |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48411-25051 |
LY60,YY5#,6# |
1 | ||
| 48411-25050 |
YY61..GEN;LY60,YY51,60 |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48433-25050 |
LY60,YY51,6# |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48434-25040 |
LY60,YY51,6# |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
LY60,YY5#,6# |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-25080 |
LY60,YY51,6# |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-25080 |
LY60,YY51,6# |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90118-14231 |
LY60,YY51,6#..ARL,GEN L=95 |
2 | ||
| 90117-14045 |
LY60,YY52,6#..ARL,GEN L=95,L=95 |
2 | ||
| 90117-14047 |
LY60,YY5#,6#..ARL,GEN L=90,L=90 |
6 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29125 |
LY60,YY5#,6#..ARL,GEN MARK 48511-25110 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29125 |
LY60,YY5#,6#..ARL,GEN MARK 48511-25110 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY60,YY5#,6# UPR |
4 | ||
| 90385-16004 |
LY60,YY5#,6# LWR |
2 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY60,YY5#,6# UPR |
4 | ||
| 90385-16004 |
LY60,YY5#,6# LWR |
2 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY60,YY5#,6# UPR |
4 | ||
| 90385-16004 |
LY60,YY5#,6# LWR |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
LY60,YY5#,6# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY60,YY5#,6# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY60,YY5#,6# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
LY60,YY5#,6# |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY60,YY51,6# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29125 |
LY60,YY5#,6#..ARL,GEN MARK 48511-25110 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29125 |
LY60,YY5#,6#..ARL,GEN MARK 48511-25110 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
LY60,YY5#,6# |
2 | ||
| Common parts | ||||
| 90170-14006 | ||||
| 90179-14023 | ||||
| 91611-61020 | ||||
| 91611-61030 | ||||
| 91616-40820 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94115-51400 | ||||
| 94120-41000 | ||||
| 94512-01600 | ||||
| 94512-11400 | ||||
| 94612-11400 | ||||

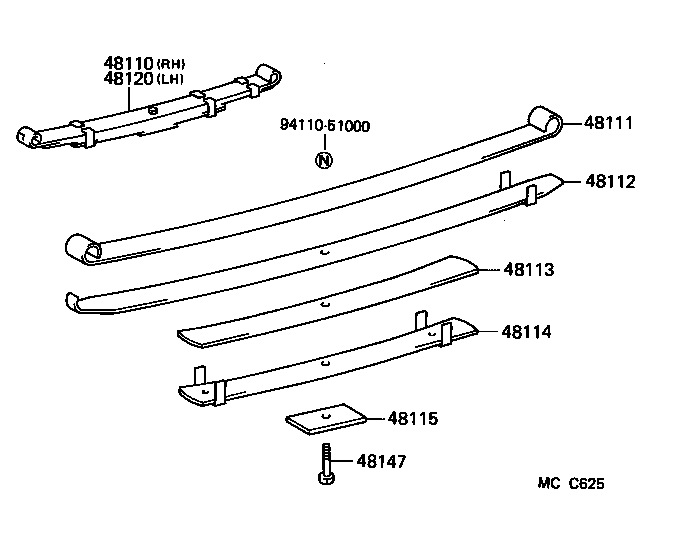

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-25520 |
YY5#,6#..GEN 5-LEAF |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-25510 |
YY5#,6#..GEN LH |
1 | ||
| 48111-25520 |
YY5#,6#..GEN RH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-25520 |
YY5#,6#..GEN RH |
1 | ||
| 48102-25510 |
YY5#,6#..GEN LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-25520 |
YY5#,6#..GEN RH |
1 | ||
| 48113-25510 |
YY5#,6#..GEN LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48103-25520 |
YY5#,6#..GEN RH |
1 | ||
| 48103-25510 |
YY5#,6#..GEN LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-25450 |
LY60,YY5#,6# |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-25510 |
YY5#,6#..GEN 5-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-25450 |
LY60,YY5#,6# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
