YY61R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )2Y,3Y

Click highlighted areas on diagram

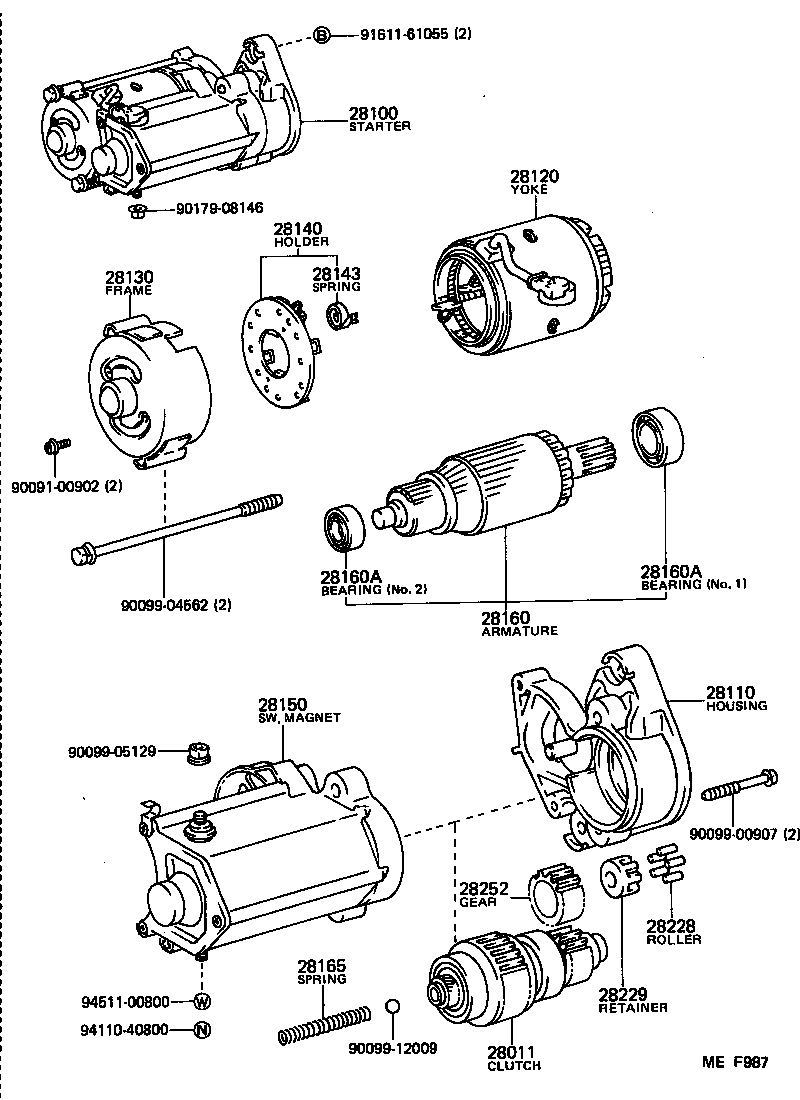

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28160 28160A 28160A 28165 28228 28229 28252 9009100902 9009900907 9009904562 9009905129 9009912009 9017908146 9161161055 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

2Y,3Y..YY5#,6#

12V 1.0KW

 1
28100 - STARTER ASSY
28100-72010

2Y,3Y..YY5#,6#

12V 1.0KW,12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-72010

2Y,3Y..YY5#,6#

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-26071

2Y,3Y..YY5#,6#

12V 1.0KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-72010

2Y,3Y..YY5#,6#

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

2Y,3Y..YY5#,6#

12V 1.0KW

 1
28143 - SPRING, STARTER BRUSH
90099-17112

2Y,3Y..YY5#,6#

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080

2Y,3Y..YY5#,6#

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-26070

2Y,3Y..YY5#,6#

12V 1.0KW

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

2Y,3Y..YY5#,6#

12V 1.0KW,NO.2

 1
90099-10113

2Y,3Y..YY5#,6#

12V 1.0KW,NO.1

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

2Y,3Y..YY5#,6#

12V 1.0KW,NO.2

 1
90099-10113

2Y,3Y..YY5#,6#

12V 1.0KW,NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

2L,2Y,3Y..LY60,YY5#,6#

12V 1.0KW,2.0KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

2L,2Y,3Y..LY60,YY5#,6#

12V 1.0KW,2.0KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

2L,2Y,3Y..LY60,YY5#,6#

12V 1.0KW,2.0KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

2Y,3Y..YY5#,6#

12V 1.0KW

 1
Common parts
90091-00902
90099-00907
90099-04562
90099-05129
90099-12009
90179-08146
91611-61055
94110-40800
94511-00800

(8708-8808)2L ; (8808- )

Click highlighted areas on diagram

12V 2.5KW,12V 2.7KW

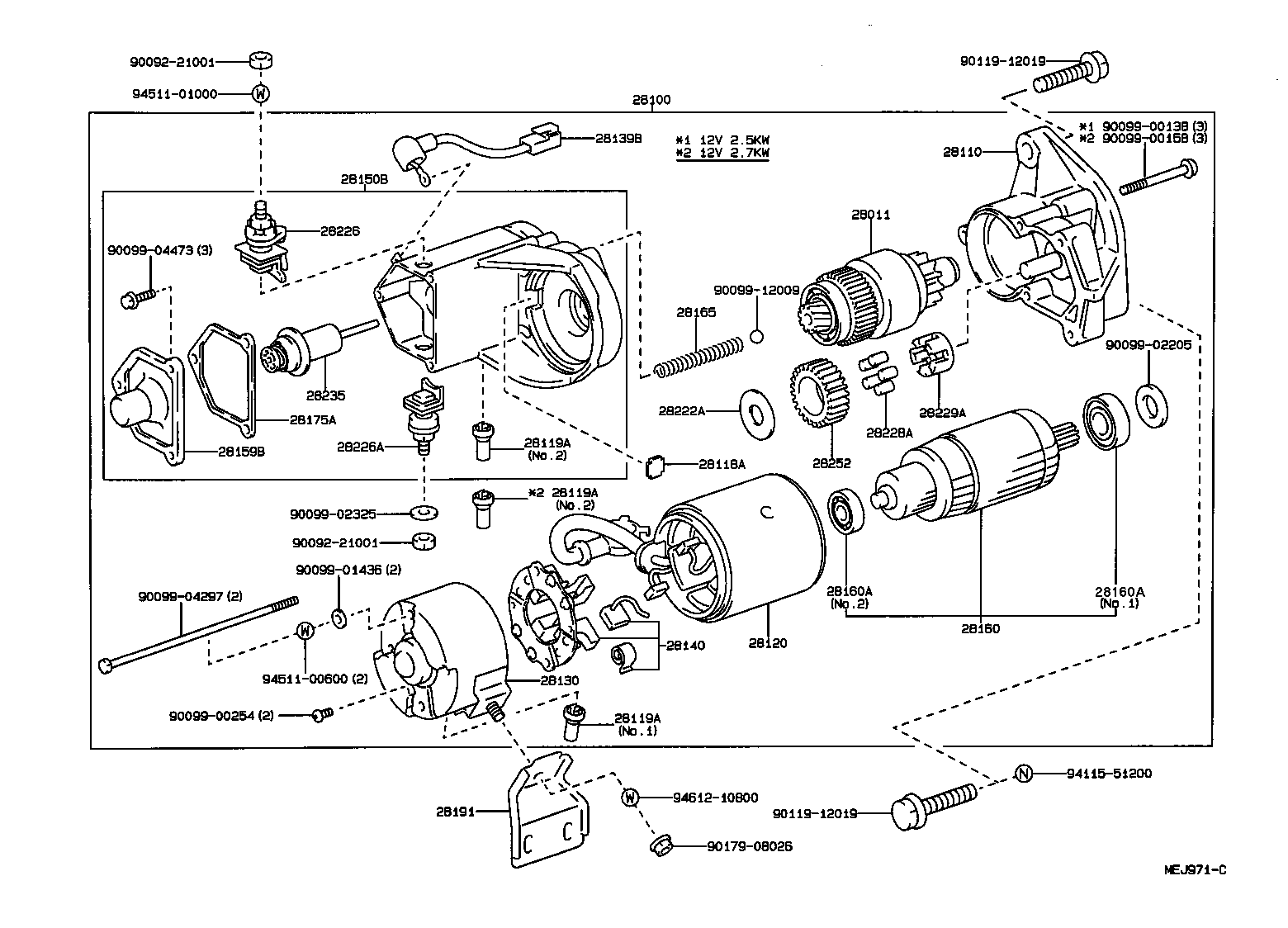

diagram 28011 28100 28110 28118A 28119A 28119A 28119A 28120 28130 28139B 28140 28150B 28159B 28160 28160A 28160A 28165 28175A 28191 28222A 28226 28226A 28228A 28229A 28235 28252 9009221001 9009221001 9009900138 9009900158 9009900254 9009901436 9009902205 9009902325 9009904297 9009904473 9009912009 9011912019 9011912019 9017908026 9411551200 9451100600 9451101000 9461210800
Part # Description Qty Price
Common parts
90092-21001
90099-00138
90099-00158
90099-00254
90099-01436
90099-02205
90099-02325
90099-04297
90099-04473
90099-12009
90119-12019
90179-08026
94115-51200
94511-00600
94511-01000
94612-10800

(8708-8808)3Y

Click highlighted areas on diagram

12V 1.0KW

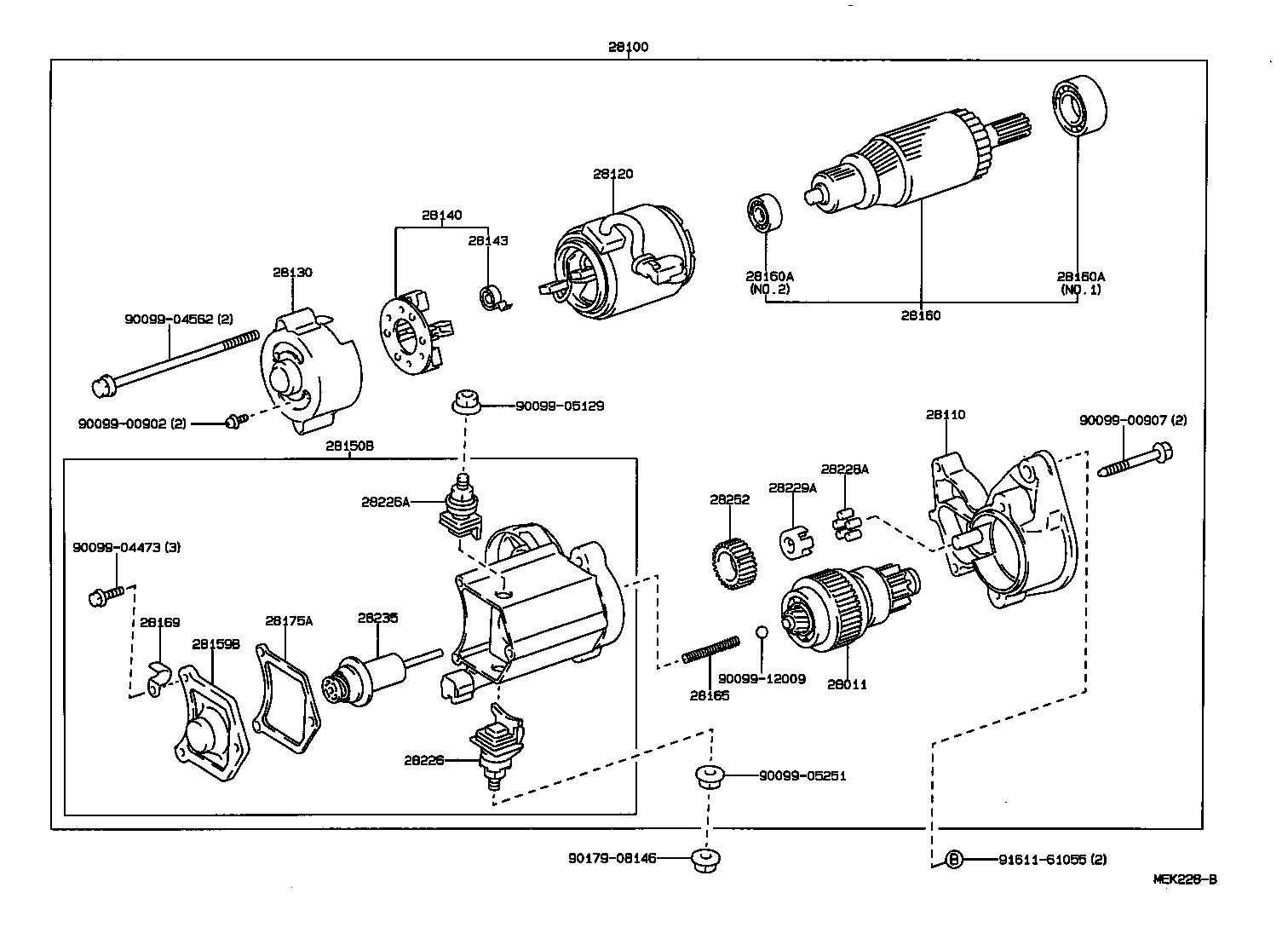

diagram 28011 28100 28110 28120 28130 28140 28143 28150B 28159B 28160 28160A 28160A 28165 28169 28175A 28226 28226A 28228A 28229A 28235 28252 9009900902 9009900907 9009904473 9009904562 9009905129 9009905251 9009912009 9017908146 9161161055
Part # Description Qty Price
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-05251
90099-12009
90179-08146
91611-61055
