YY61R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )2Y,3Y

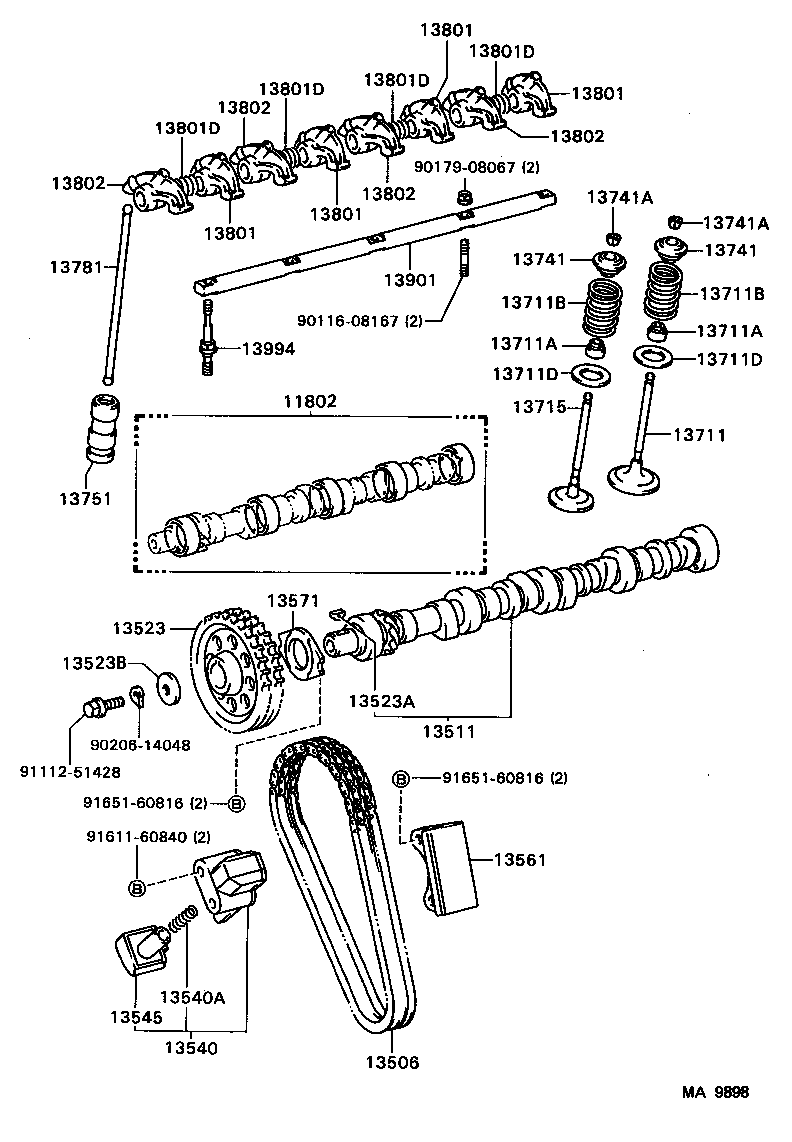

Click highlighted areas on diagram

diagram 11802 13506 13511 13523 13523A 13523B 13540 13540A 13545 13561 13571 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13994 9011608167 9017908067 9020614048 9111251428 9161160840 9165160816 9165160816
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-71010

2Y,3Y..YY5#,6#

STD

 1
13506 - CHAIN SUB-ASSY
13506-25010

2Y,3Y..YY5#,6#

 1
13511 - CAMSHAFT
13511-73900

2Y,3Y..YY5#,6#

 1
13511-73902

2Y,3Y..YY52,6#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13522-33010

2Y,3Y..YY5#,6#

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05010

2Y,3Y..YY5#,6#

 1
95161-10519

2Y,3Y..YY52,6#

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-14293

2Y,3Y..YY5#,6#

N=42

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-25010

2Y,3Y..YY5#,6#

 1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90501-10595

2Y,3Y..YY5#,6#

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-25010

2Y,3Y..YY5#,6#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-25010

2Y,3Y..YY5#,6#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-71010

2Y,3Y..YY5#,6#

 1
13711 - VALVE, INTAKE
13711-71010

2Y,3Y..YY5#,6#

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02073

2Y,3Y..YY52,6#

 8
90913-02065

2Y,3Y..YY5#,6#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02073

2Y,3Y..YY52,6#

 8
90913-02065

2Y,3Y..YY5#,6#

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-47005

2Y,3Y..YY5#,6#

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-47005

2Y,3Y..YY5#,6#

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-21002

2Y,3Y..YY5#,6#

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-21002

2Y,3Y..YY5#,6#

 8
13715 - VALVE, EXHAUST
13715-71010

2Y,3Y..YY5#,6#

 4
13741 - RETAINER, VALVE SPRING
13740-43010

2Y,3Y..YY5#,6#

EXHAUST

 4
13741-63010

2Y,3Y..YY5#,6#

INTAKE

 4
13741 - RETAINER, VALVE SPRING
13740-43010

2Y,3Y..YY5#,6#

EXHAUST

 4
13741-63010

2Y,3Y..YY5#,6#

INTAKE

 4
13741A - LOCK, VALVE SPRING RETAINER
90913-03014

2Y,3Y..YY5#,6#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03014

2Y,3Y..YY5#,6#

 16
13751 - LIFTER, VALVE
13750-71010

2Y,3Y..YY5#,6#

 8
13750-71020

2Y,3Y..YY52,6#

 8
13781 - ROD, VALVE PUSH
13781-73010

3Y..YY52,61

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-71010

2Y,3Y..YY5#,6#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-71010

2Y,3Y..YY5#,6#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-71010

2Y,3Y..YY5#,6#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-71010

2Y,3Y..YY5#,6#

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16068

2Y,3Y..YY5#,6#

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16068

2Y,3Y..YY5#,6#

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16068

2Y,3Y..YY5#,6#

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16068

2Y,3Y..YY5#,6#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-71010

2Y,3Y..YY5#,6#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-71010

2Y,3Y..YY5#,6#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-71010

2Y,3Y..YY5#,6#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-71010

2Y,3Y..YY5#,6#

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-71010

2Y,3Y..YY5#,6#

 1
13994 - BOLT, ROCKER SHAFT STUD
13994-71010

2Y,3Y..YY5#,6#

 3
Common parts
90116-08167
90179-08067
90206-14048
91112-51428
91611-60840
91651-60816

(8708-8808)3Y

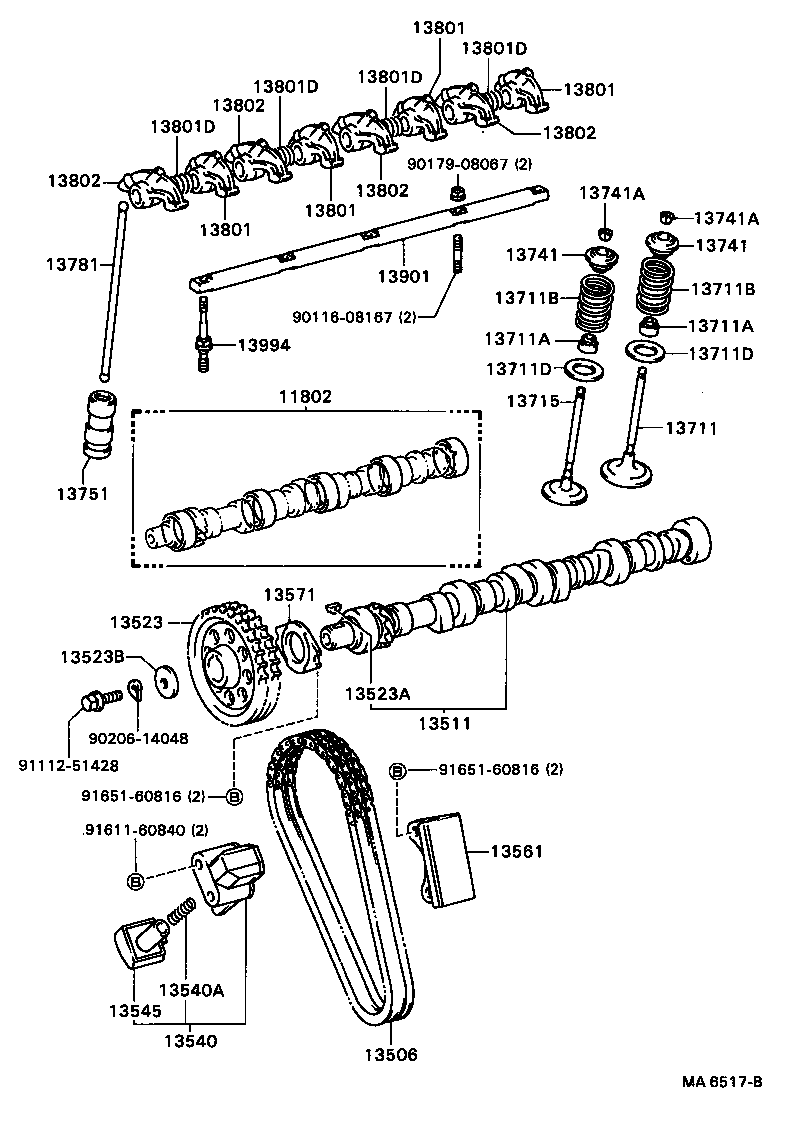

Click highlighted areas on diagram

diagram 11802 13506 13511 13523 13523A 13523B 13540 13540A 13545 13561 13571 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13994 9011608167 9017908067 9020614048 9111251428 9161160840 9165160816 9165160816
Part # Description Qty Price
Common parts
90116-08167
90179-08067
90206-14048
91112-51428
91611-60840
91651-60816
