YY61L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )EUR

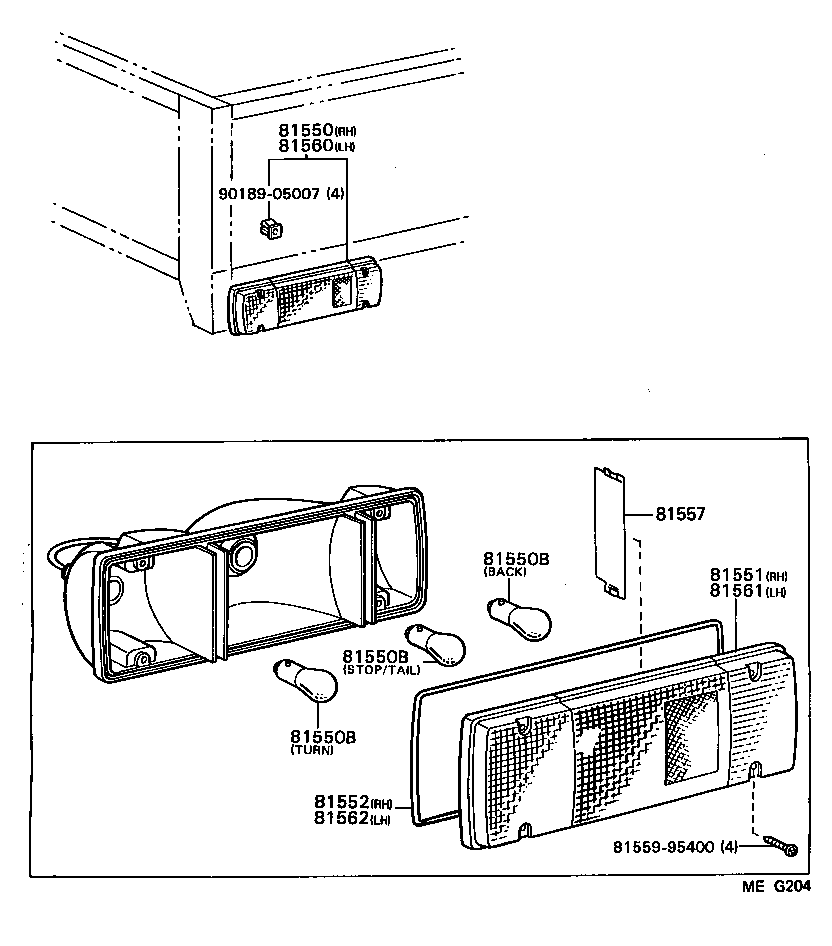

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81557 8155995400 81560 81561 81562 9018905007
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-39475

LY60,YY61..EUR

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LY60,YY61..EUR

12V 21W,12V 21W(TURN OR BACK)

 4
99132-21210

LY60,YY5#,6#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LY60,YY61..EUR

12V 21W,12V 21W(TURN OR BACK)

 4
99132-21210

LY60,YY5#,6#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LY60,YY61..EUR

12V 21W,12V 21W(TURN OR BACK)

 4
99132-21210

LY60,YY5#,6#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95403

LY60,YY61..EUR

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

LY60,YY61..EUR

 1
81557 - REFLECTOR, REAR COMBINATION LAMP REFLEX
81557-95403

LY60,YY61..EUR

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-39445

LY60,YY61..EUR

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95403

LY60,YY61..EUR

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

LY60,YY61..EUR

 1
Common parts
81559-95400
90189-05007
