YY61L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )TW

Click highlighted areas on diagram

diagram 77017 77017A 77018 77022A 77022A 77023 77031 77031B 77100 77100A 77100B 77205 77205 77241A 77241A 77241B 77241B 77277A 77277A 77277A 77277B 77277B 77513A 77611 77611A 77612 77651 77750 77750A 77750B 77751 8271122270 9017908143 9017908143 9017908146 9017910016 9046110616 9046712011 9046713007 9161140820 9161140820 9161140820 9161140820 9161140820 9161160820 9161160820 9161160820 9161160820 9161161030 9165140616 9166160820 9331914010 9411040800 9411040800 9411040800 9411040800 9411041000 9411041000 9613230400 9613230800
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-25110

YY6#..T2,T3

 1
77017-25060

YY6#..TW

 1
77017A - GASKET, FUEL TANK VENT
77169-14020

LY60,YY5#,6#

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-26140

LY60,YY61..EUR

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06030

LY60,YY61..EUR

*H,L=300

 1
95332-08020

LY60,YY61..EUR

*H,L=160,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06030

LY60,YY61..EUR

*H,L=300

 1
95332-08020

LY60,YY61..EUR

*H,L=160,ID=7.6

 2
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-14030

YY5#,6#

 1
77031 - CAP ASSY, FUEL TANK
77310-60051

YY5#,6#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

LY60,YY5#,6#

 1
77100 - TANK ASSY, FUEL
77001-25230

LY60,YY6#..T2,T3

 1
77001-25270

LY60,YY61..EUR

 1
77001-25250

LY60,YY6#..TW

 1
77100A - PLUG(FOR FUEL TANK)
90341-20003

LY60,YY5#,6#..TW

 1
90105-12116

LY60,YY6#..T2,T3

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LY60,YY6#..T2,T3

 1
90430-20006

LY60,YY5#,6#..TW

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-25050

YY5#,6#

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-25050

YY5#,6#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77259-25040

YY5#,6#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77259-25040

YY5#,6#

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-06020

YY52,6#

*H,L=200

 1
95332-06020

YY5#,6#

*H,L=200

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-06020

YY52,6#

*H,L=200

 1
95332-06020

YY5#,6#

*H,L=200

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-11004

YY5#,6#

L=280

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-11004

YY5#,6#

L=280

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-11004

YY5#,6#

L=280

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-04020

YY52,6#

L=200

 1
95332-04020

YY5#,6#

*H,L=200

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-04020

YY52,6#

L=200

 1
95332-04020

YY5#,6#

*H,L=200

 1
77513A - RETAINER, TANK BRACKET
77513-25020

LY60,YY6#

 1
77611 - BAND, FUEL TANK
77601-26050

LY60,YY6#..T2,T3

 2
77601-27011

LY60,YY5#,6#..TW

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

LY60,YY5#,6#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-25060

LY60,YY6#..TW

 2
77501-28011

LY60,YY6#..T2,T3

 2
77651 - PACKING, FUEL TANK BRACKET
77651-26040

LY60,YY6#..T2,T3

 2
77651-27110

LY60,YY5#,6#..TW

 2
77750 - CANISTER ASSY, CHARCOAL
77740-26060

YY5#,6#

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
90445-08169

YY5#,6#

L=1050

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90445-14136

YY5#,6#

L=150

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77705-26021

YY5#,6#

 1
Common parts
82711-22270
90179-08143
90179-08146
90179-10016
90461-10616
90467-12011
90467-13007
91611-40820
91611-60820
91611-61030
91651-40616
91661-60820
93319-14010
94110-40800
94110-41000
96132-30400
96132-30800

(8508- )EUR

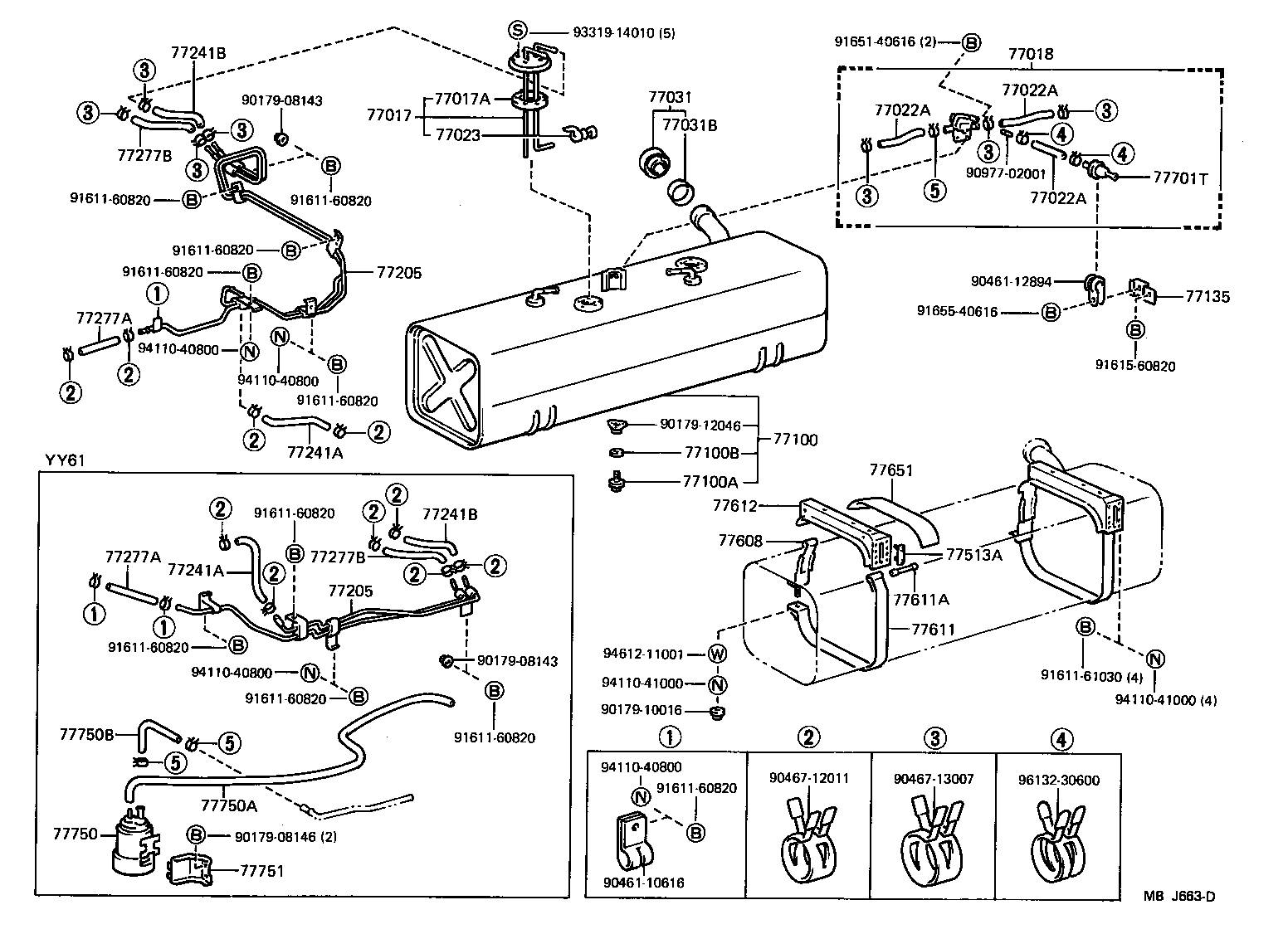

Click highlighted areas on diagram

diagram 77017 77017A 77018 77022A 77022A 77022A 77023 77031 77031B 77100 77100A 77100B 77135 77205 77205 77241A 77241A 77241B 77241B 77277A 77277A 77277B 77277B 77513A 77608 77611 77611A 77612 77651 77701T 77750 77750A 77750B 77751 9017908143 9017908143 9017908146 9017910016 9017912046 9046110616 9046112894 9046712011 9046713007 9097702001 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161161030 9161560820 9165140616 9165540616 9331914010 9411040800 9411040800 9411040800 9411040800 9411041000 9411041000 9461211001 9613230600
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-25110

YY6#..T2,T3

 1
77017-25060

YY6#..TW

 1
77017A - GASKET, FUEL TANK VENT
77169-14020

LY60,YY5#,6#

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-26140

LY60,YY61..EUR

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06030

LY60,YY61..EUR

*H,L=300

 1
95332-08020

LY60,YY61..EUR

*H,L=160,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06030

LY60,YY61..EUR

*H,L=300

 1
95332-08020

LY60,YY61..EUR

*H,L=160,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06030

LY60,YY61..EUR

*H,L=300

 1
95332-08020

LY60,YY61..EUR

*H,L=160,ID=7.6

 2
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-14030

YY5#,6#

 1
77031 - CAP ASSY, FUEL TANK
77310-60051

YY5#,6#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

LY60,YY5#,6#

 1
77100 - TANK ASSY, FUEL
77001-25230

LY60,YY6#..T2,T3

 1
77001-25270

LY60,YY61..EUR

 1
77001-25250

LY60,YY6#..TW

 1
77100A - PLUG(FOR FUEL TANK)
90341-20003

LY60,YY5#,6#..TW

 1
90105-12116

LY60,YY6#..T2,T3

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LY60,YY6#..T2,T3

 1
90430-20006

LY60,YY5#,6#..TW

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-25050

YY5#,6#

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-25050

YY5#,6#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77259-25040

YY5#,6#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77259-25040

YY5#,6#

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-06020

YY52,6#

*H,L=200

 1
95332-06020

YY5#,6#

*H,L=200

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-06020

YY52,6#

*H,L=200

 1
95332-06020

YY5#,6#

*H,L=200

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-11004

YY5#,6#

L=280

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-11004

YY5#,6#

L=280

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-04020

YY52,6#

L=200

 1
95332-04020

YY5#,6#

*H,L=200

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-04020

YY52,6#

L=200

 1
95332-04020

YY5#,6#

*H,L=200

 1
77513A - RETAINER, TANK BRACKET
77513-25020

LY60,YY6#

 1
77608 - BAND SUB-ASSY, FUEL TANK, NO.2
77603-28010

LY60,YY6#..T2,T3

 2
77611 - BAND, FUEL TANK
77601-26050

LY60,YY6#..T2,T3

 2
77601-27011

LY60,YY5#,6#..TW

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

LY60,YY5#,6#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-25060

LY60,YY6#..TW

 2
77501-28011

LY60,YY6#..T2,T3

 2
77651 - PACKING, FUEL TANK BRACKET
77651-26040

LY60,YY6#..T2,T3

 2
77651-27110

LY60,YY5#,6#..TW

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067

LY60,YY61..EUR

 1
77750 - CANISTER ASSY, CHARCOAL
77740-26060

YY5#,6#

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
90445-08169

YY5#,6#

L=1050

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90445-14136

YY5#,6#

L=150

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77705-26021

YY5#,6#

 1
Common parts
90179-08143
90179-08146
90179-10016
90179-12046
90461-10616
90461-12894
90467-12011
90467-13007
90977-02001
91611-60820
91611-61030
91615-60820
91651-40616
91655-40616
93319-14010
94110-40800
94110-41000
94612-11001
96132-30600
