YY61L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

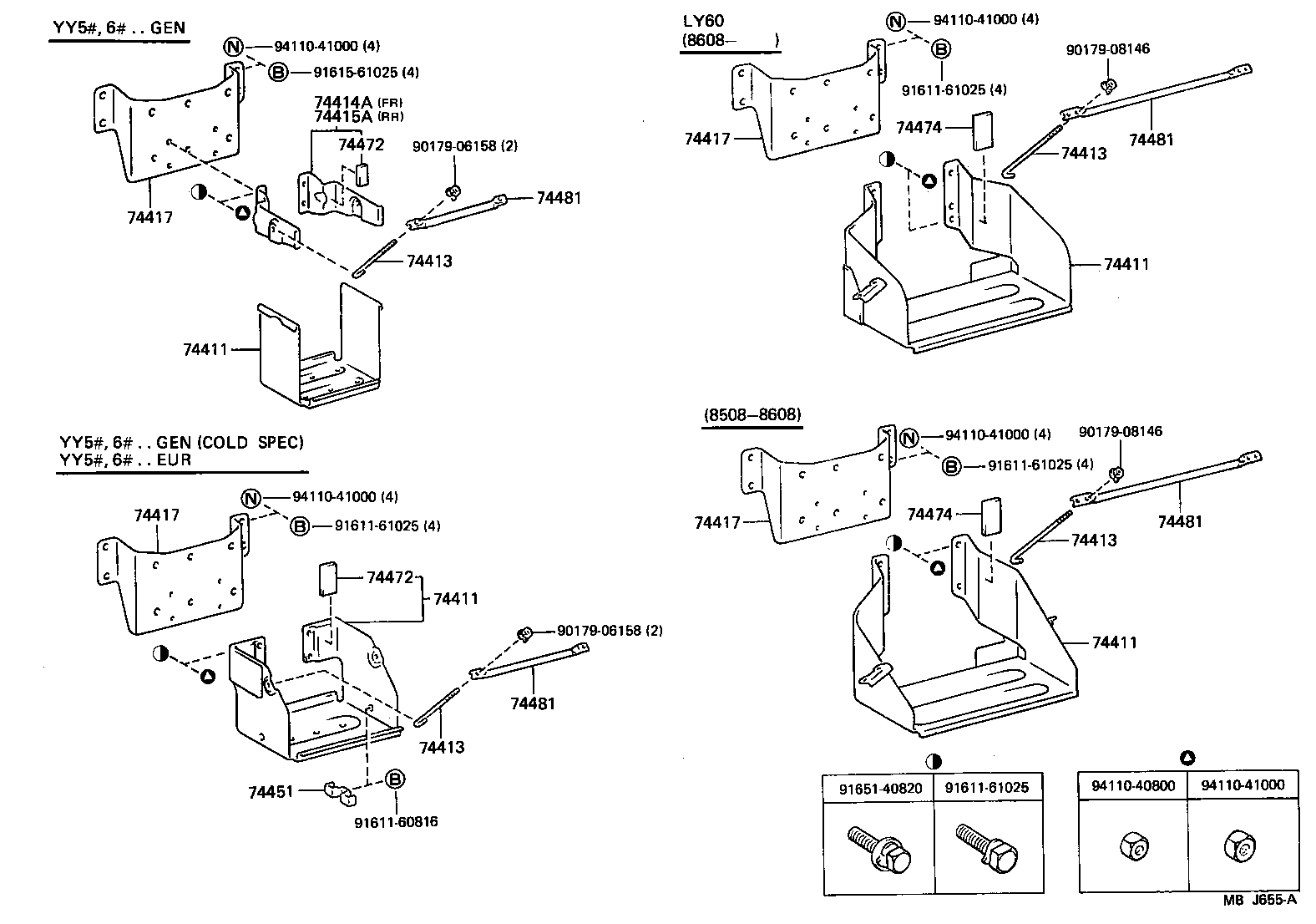

Click highlighted areas on diagram

diagram 74411 74411 74411 74411 74413 74413 74413 74413 74414A 74415A 74417 74417 74417 74417 74451 74472 74472 74474 74474 74481 74481 74481 74481 9017906158 9017906158 9017908146 9017908146 9161160816 9161161025 9161161025 9161161025 9161161025 9161561025 9165140820 9411040800 9411041000 9411041000 9411041000 9411041000 9411041000
Part # Description Qty Price
74411 - CARRIER, BATTERY
74421-25020

YY61..EUR

 1
74411 - CARRIER, BATTERY
74421-25020

YY61..EUR

 1
74411 - CARRIER, BATTERY
74421-25020

YY61..EUR

 1
74411 - CARRIER, BATTERY
74421-25020

YY61..EUR

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

YY5#,6#

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

YY5#,6#

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

YY5#,6#

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

YY5#,6#

 1
74417 - BRACKET, BATTERY CARRIER
74417-25020

YY6#..T2,T3

 1
74417 - BRACKET, BATTERY CARRIER
74417-25020

YY6#..T2,T3

 1
74417 - BRACKET, BATTERY CARRIER
74417-25020

YY6#..T2,T3

 1
74417 - BRACKET, BATTERY CARRIER
74417-25020

YY6#..T2,T3

 1
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-25050

YY51,6#

 1
74472 - PAD, BATTERY SIDE
74472-25020

YY61..EUR

 1
74472 - PAD, BATTERY SIDE
74472-25020

YY61..EUR

 1
74481 - CLAMP, BATTERY HOLD DOWN
74453-25090

YY61..EUR

 1
74481 - CLAMP, BATTERY HOLD DOWN
74453-25090

YY61..EUR

 1
74481 - CLAMP, BATTERY HOLD DOWN
74453-25090

YY61..EUR

 1
74481 - CLAMP, BATTERY HOLD DOWN
74453-25090

YY61..EUR

 1
Common parts
90179-06158
90179-08146
91611-60816
91611-61025
91615-61025
91651-40820
94110-40800
94110-41000
