YY61L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48220 48247 48252 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-25500

LY60,YY61..EUR

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
48299-25140

LY60,YY51,6#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-25500

LY60,YY61..EUR

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25500

LY60,YY61..EUR

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25500

LY60,YY61..EUR

 2
48214 - LEAF, REAR SPRING, NO.4
48214-25500

LY60,YY61..EUR

 2
48215 - LEAF, REAR SPRING, NO.5
48215-25140

LY60,YY61..EUR

 2
48220 - SPRING ASSY, REAR LH
48210-25500

LY60,YY61..EUR

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-36140

LY60,YY61..WT

 2
48252 - SILENCER, REAR SPRING
48252-26070

LY60,YY61..WT

 2
Common parts
94110-51000

(8508- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48220 48220 48246 48247 48247 48252 48256 9411040800 9411051000 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-25500

LY60,YY61..EUR

5-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-25500

LY60,YY61..EUR

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
48299-25140

LY60,YY51,6#

 4
48210C - BUSH(FOR REAR SPRING LEAF)
48299-25140

LY60,YY51,6#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-25500

LY60,YY61..EUR

 2
48211 - LEAF, REAR SPRING, NO.1
48201-25500

LY60,YY61..EUR

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25500

LY60,YY61..EUR

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25500

LY60,YY61..EUR

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25500

LY60,YY61..EUR

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25500

LY60,YY61..EUR

 2
48214 - LEAF, REAR SPRING, NO.4
48214-25500

LY60,YY61..EUR

 2
48214 - LEAF, REAR SPRING, NO.4
48214-25500

LY60,YY61..EUR

 2
48215 - LEAF, REAR SPRING, NO.5
48215-25140

LY60,YY61..EUR

 2
48220 - SPRING ASSY, REAR LH
48210-25500

LY60,YY61..EUR

5-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-25500

LY60,YY61..EUR

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-36140

LY60,YY61..WT

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36140

LY60,YY61..WT

 2
48252 - SILENCER, REAR SPRING
48252-26070

LY60,YY61..WT

 2
Common parts
94110-40800
94110-51000

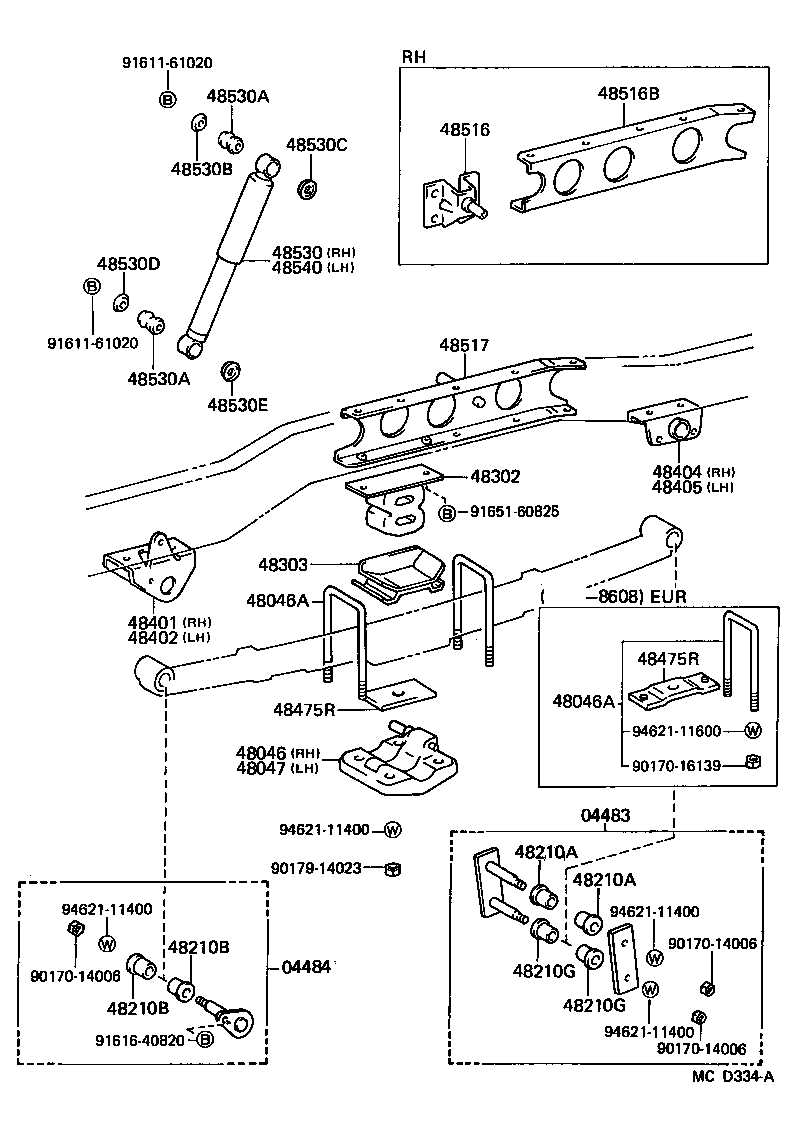

(8508- )WT

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48302 48303 48401 48402 48404 48405 48475R 48475R 48516 48516B 48517 48530 48530A 48530A 48530B 48530C 48530D 48530E 48540 9017014006 9017014006 9017014006 9017016139 9017914023 9161161020 9161161020 9161640820 9165160825 9462111400 9462111400 9462111400 9462111400 9462111600
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-25011

LY60,YY5#,6#

 1
04484 - PIN KIT, REAR SPRING
04482-25011

LY60,YY5#,6#

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-25070

LY60,YY61..EUR

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16062

LY60,YY61..EUR

L=190,L=190

 4
90118-16241

LY60,YY61..EUR

L=200,L=200

 2
90117-16031

LY60,YY61..EUR

L=200,L=200

 2
48046A - BOLT, U(FOR REAR SPRING)
90117-16062

LY60,YY61..EUR

L=190,L=190

 4
90118-16241

LY60,YY61..EUR

L=200,L=200

 2
90117-16031

LY60,YY61..EUR

L=200,L=200

 2
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-25070

LY60,YY61..EUR

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18005

LY60,YY5#,6#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18005

LY60,YY5#,6#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18005

LY60,YY5#,6#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18005

LY60,YY5#,6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18005

LY60,YY5#,6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18005

LY60,YY5#,6#

 4
48302 - SPRING SUB-ASSY, HOLLOW
48302-25050

LY60,YY61..WT

 2
48303 - SEAT SUB-ASSY, HOLLOW SPRING
48303-25060

LY60,YY61..EUR

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-25050

LY60,YY61..WT

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48415-25020

LY60,YY61..WT

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-25080

LY60,YY61..WT

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48417-25060

LY60,YY61..WT

 1
48475R - PLATE, DISTANCE(FOR REAR)
48475-36051

LY60,YY61..EUR

 1
48475R - PLATE, DISTANCE(FOR REAR)
48475-36051

LY60,YY61..EUR

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-25040

LY60,YY61..WT

 1
48516B - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-25050

LY60,YY61..WT

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-25040

LY60,YY61..WT

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-25090

LY60,YY61..EUR

MARK 48531-25090

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

LY60,YY5#,6#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

LY60,YY5#,6#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

LY60,YY5#,6#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LY60,YY5#,6#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

LY60,YY61..WT

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LY60,YY61..WT

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-25090

LY60,YY61..EUR

MARK 48531-25090

 1
Common parts
90170-14006
90170-16139
90179-14023
91611-61020
91616-40820
91651-60825
94621-11400
94621-11600
