YY61L-MDBTW3 (1985)
Toyota Dyna150
(8508- )EUR

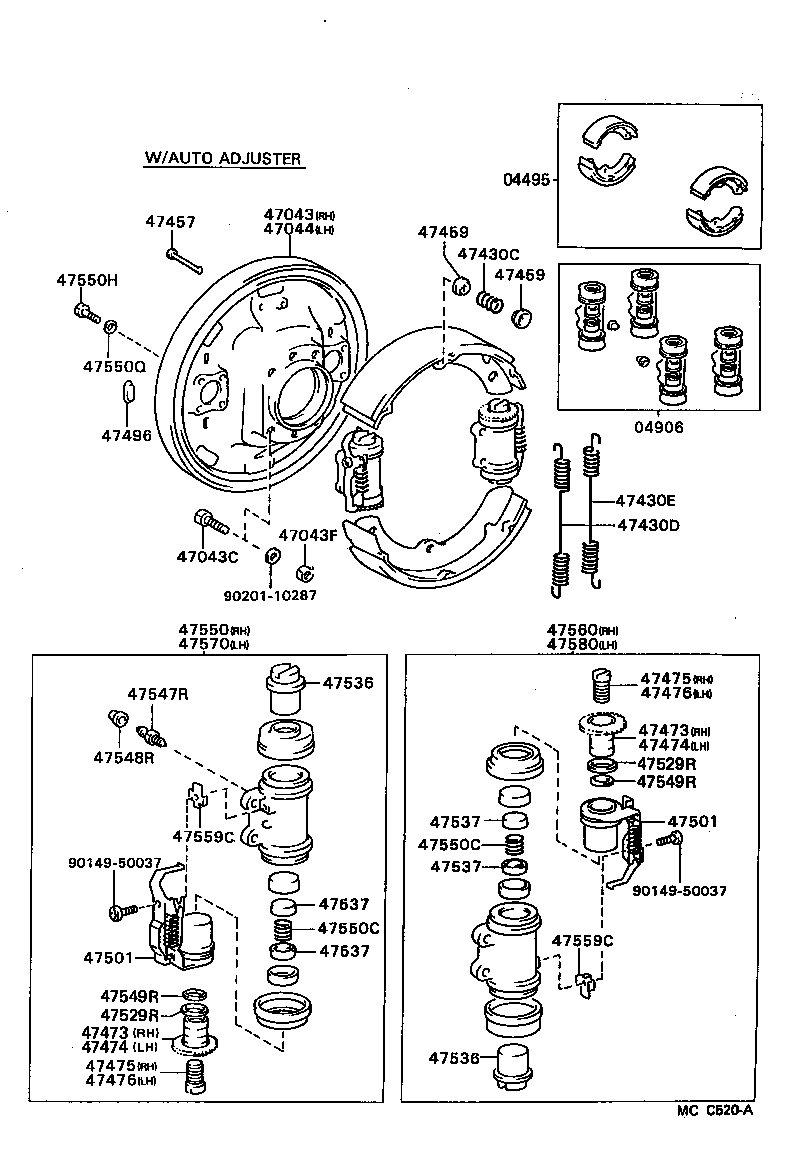

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36090 |
LY60,YY61..EUR |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36130 |
LY60,YY61..EUR |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36100 |
LY60,YY61..EUR |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
LY60,YY61..EUR *10-1.25PX31-21.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
LY60,YY61..EUR |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36100 |
LY60,YY61..EUR |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
LY60,YY61..WT |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
LY60,YY61..EUR |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
LY60,YY61..EUR |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LY60,YY5#,6# |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY60,YY5#,6# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY60,YY5#,6# |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
LY60,YY61..EUR |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
LY60,YY61..EUR |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
LY60,YY61..EUR |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
LY60,YY61..EUR |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
LY60,YY61..EUR |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
LY60,YY61..EUR |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
LY60,YY61..EUR |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
LY60,YY61..EUR |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
LY60,YY5#,6# |
4 | ||
| 47501 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER | ||||
| 47502-36031 |
LY60,YY61..EUR LH |
2 | ||
| 47501-36031 |
LY60,YY61..EUR RH |
2 | ||
| 47501 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER | ||||
| 47502-36031 |
LY60,YY61..EUR LH |
2 | ||
| 47501-36031 |
LY60,YY61..EUR RH |
2 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
LY60,YY61..EUR |
4 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
LY60,YY61..EUR |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
LY60,YY61..EUR |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
LY60,YY61..EUR |
4 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
LY60,YY61..EUR |
8 | ||
| 47533-60011 |
LY60,YY61..WT |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
LY60,YY61..EUR |
8 | ||
| 47533-60011 |
LY60,YY61..WT |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
LY60,YY61..EUR |
8 | ||
| 47533-60011 |
LY60,YY61..WT |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
LY60,YY61..EUR |
8 | ||
| 47533-60011 |
LY60,YY61..WT |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
LY60,YY5#,6# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LY60,YY5#,6# |
2 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
LY60,YY61..EUR |
4 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
LY60,YY61..EUR |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36130 |
LY60,YY61..EUR |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
LY60,YY5#,6# |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
LY60,YY5#,6# |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
LY60,YY61..EUR |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
LY60,YY61..EUR |
16 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
LY60,YY61..EUR |
4 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
LY60,YY61..EUR |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36130 |
LY60,YY61..EUR |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36130 |
LY60,YY61..EUR |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36130 |
LY60,YY61..EUR |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
