YY61L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

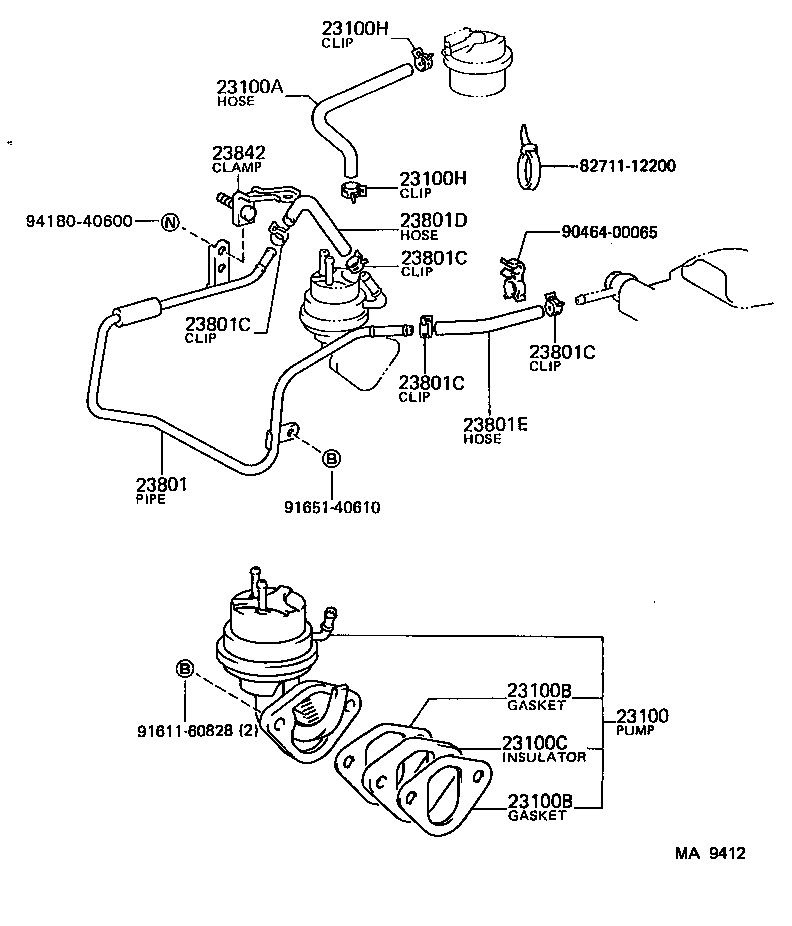

(8508- )2Y,3Y

Click highlighted areas on diagram

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23842 8271112200 9046400065 9161160828 9165140610 9418040600
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-79015

2Y,3Y..YY5#,6#

 1
23100A - HOSE, FUEL
90447-12022

2Y,3Y..YY5#,6#

 1
23100B - GASKET, FUEL PUMP
90923-05005

2Y,3Y..YY5#,6#

 2
23100B - GASKET, FUEL PUMP
90923-05005

2Y,3Y..YY5#,6#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

2Y,3Y..YY5#,6#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2Y,3Y..YY5#,6#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2Y,3Y..YY5#,6#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-71011

2Y,3Y..YY5#,6#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y,3Y..YY5#,6#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y,3Y..YY5#,6#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y,3Y..YY5#,6#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y,3Y..YY5#,6#

 4
23801D - HOSE, FUEL PIPE, NO.1
95332-06010

2Y,3Y..YY5#,6#

*H,L=100

 1
95333-06010

2Y,3Y..YY52,6#

*H,L=100

 1
23801E - HOSE, FUEL PIPE, NO.2
95333-06010

2Y,3Y..YY52,6#

 1
95332-06010

2Y,3Y..YY5#,6#

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-71011

2Y,3Y..YY5#,6#

 1
Common parts
82711-12200
90464-00065
91611-60828
91651-40610
94180-40600

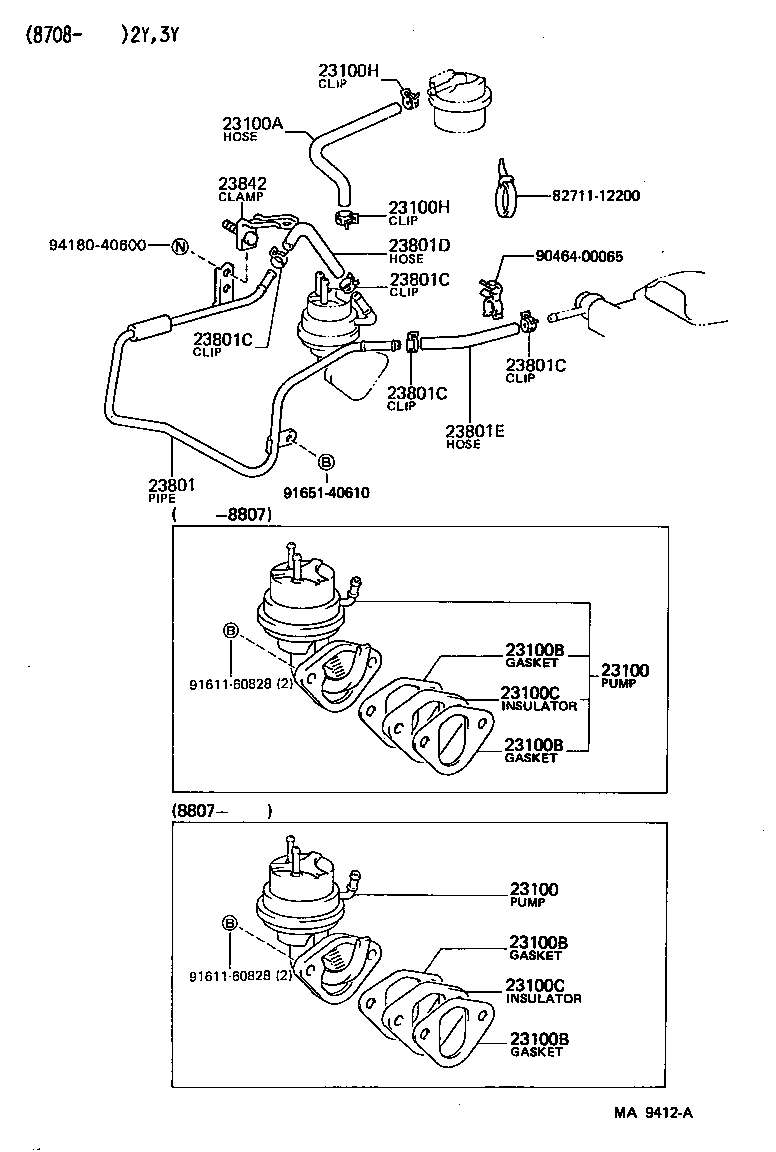

(8708-8808)3Y

Click highlighted areas on diagram

diagram 23100 23100 23100A 23100B 23100B 23100B 23100B 23100C 23100C 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23842 8271112200 9046400065 9161160828 9161160828 9165140610 9418040600
Part # Description Qty Price
Common parts
82711-12200
90464-00065
91611-60828
91651-40610
94180-40600
