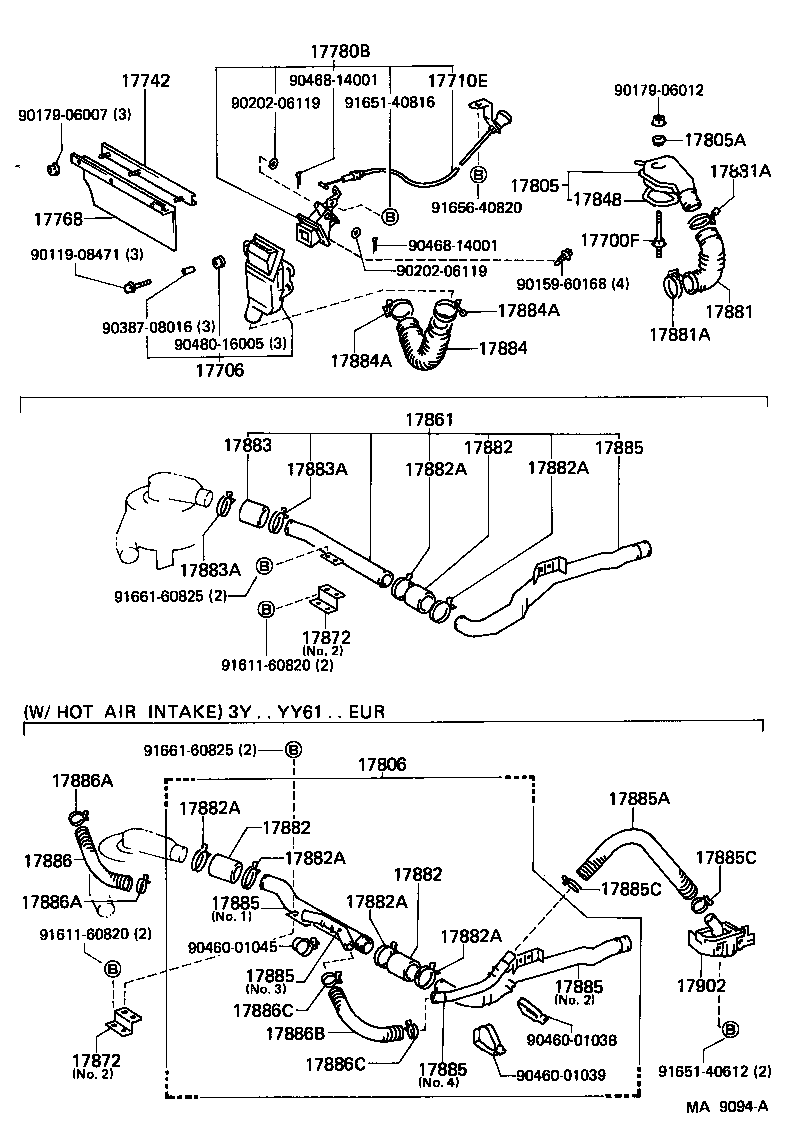

YY61L-MDBTW3 (1985)
Toyota Dyna150
(8508- )2Y,3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73160 |
3Y..YY61..EUR |
1 | ||
| 17700-73160 |
3Y..YY61..EUR |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2Y,3Y..YY5#,6# |
1 | ||
| 90175-08008 |
2Y,3Y..YY5#,6# |
1 | ||
| 17700X - BRACKET, AIR CLEANER | ||||
| 17771-71010 |
2Y,3Y..YY5#,6# |
1 | ||
| 17771-71010 |
2Y,3Y..YY5#,6# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-54200 |
2Y,3Y..YY5#,6# |
1 | ||
| 17701-54200 |
2Y,3Y..YY5#,6# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-73070 |
3Y..YY61..EUR |
1 | ||
| 17705-73070 |
3Y..YY61..EUR |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2Y,3Y..YY5#,6# |
1 | ||
| 90175-06003 |
2Y,3Y..YY5#,6# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54070 |
2Y,3Y..YY51,6# |
1 | ||
| 17801-54070 |
2Y,3Y..YY51,6# |
1 | ||
| 17801-31060 |
3Y..YY61..EUR |
1 | ||
| 17801-31060 |
3Y..YY61..EUR |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-54010 |
2Y,3Y..YY5#,6# |
1 | ||
| 17807-54010 |
2Y,3Y..YY5#,6# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
2Y,3Y..YY5#,6# |
2 | ||
| 17841-54010 |
2Y,3Y..YY5#,6# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
2Y,3Y..YY5#,6# |
2 | ||
| 17841-54010 |
2Y,3Y..YY5#,6# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
2Y,3Y..YY5#,6# |
1 | ||
| 17845-54010 |
2Y,3Y..YY5#,6# |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

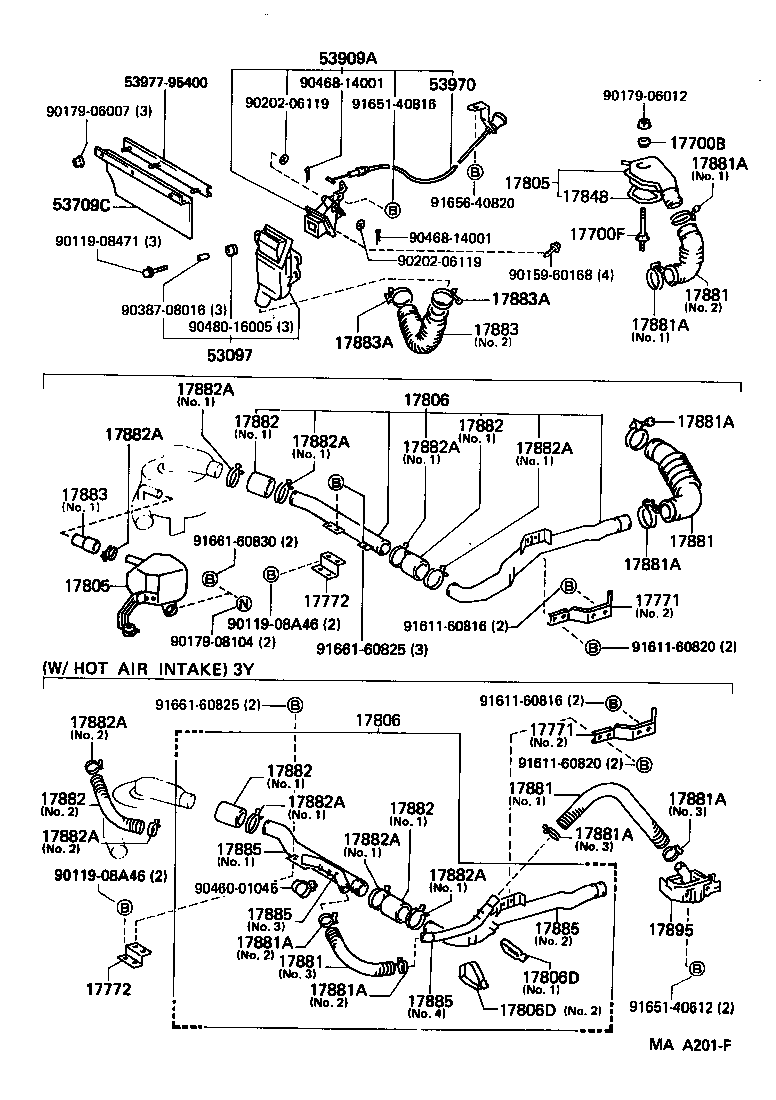

(8508- )2Y,3Y..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
2Y,3Y..YY5#,6# |
1 | ||
| 90116-06143 |
2Y,3Y..YY5#,6# |
1 | ||
| 17742 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95400 |
2Y,3Y..YY51,6# |
1 | ||
| 53977-95400 |
2Y,3Y..YY51,6# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71020 |
2Y,3Y..YY5#,6# |
1 | ||
| 17805-71020 |
2Y,3Y..YY5#,6# |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
2Y,3Y..YY5#,6# |
1 | ||
| 90210-09026 |
2Y,3Y..YY5#,6# |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-73030 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17806-73030 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
2Y,3Y..YY5#,6# |
1 | ||
| 17848-35010 |
2Y,3Y..YY5#,6# |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17771-54010 |
2Y,3Y..YY5#,6# NO.1 |
1 | ||
| 17771-54010 |
2Y,3Y..YY5#,6# NO.1 |
1 | ||
| 17772-54010 |
2Y,3Y..YY5#,6#..LHD NO.2 |
1 | ||
| 17772-54010 |
2Y,3Y..YY5#,6#..LHD NO.2 |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17771-54010 |
2Y,3Y..YY5#,6# NO.1 |
1 | ||
| 17771-54010 |
2Y,3Y..YY5#,6# NO.1 |
1 | ||
| 17772-54010 |
2Y,3Y..YY5#,6#..LHD NO.2 |
1 | ||
| 17772-54010 |
2Y,3Y..YY5#,6#..LHD NO.2 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
2Y,3Y..YY5#,6# |
1 | ||
| 17881-71070 |
2Y,3Y..YY5#,6# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# CARBURETOR SIDE |
1 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY5#,6# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY5#,6# AIR CLEANER SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# CARBURETOR SIDE |
1 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY5#,6# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY5#,6# AIR CLEANER SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31070 |
2Y,3Y..YY51,6# |
1 | ||
| 17882-31070 |
2Y,3Y..YY51,6# |
1 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31070 |
2Y,3Y..YY51,6# |
1 | ||
| 17882-31070 |
2Y,3Y..YY51,6# |
1 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31070 |
2Y,3Y..YY51,6# |
1 | ||
| 17882-31070 |
2Y,3Y..YY51,6# |
1 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10690 |
2Y,3Y..YY51,6# AIR INLET SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY51,6# AIR INLET SIDE |
1 | ||
| 96111-10750 |
2Y,3Y..YY51,6# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2Y,3Y..YY51,6# AIR CLEANER SIDE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10690 |
2Y,3Y..YY51,6# AIR INLET SIDE |
1 | ||
| 96111-10690 |
2Y,3Y..YY51,6# AIR INLET SIDE |
1 | ||
| 96111-10750 |
2Y,3Y..YY51,6# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2Y,3Y..YY51,6# AIR CLEANER SIDE |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17886-73020 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.4 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73070 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.2 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73060 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.3 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885-73050 |
3Y..YY61..EUR W/HOT AIR INTAKE,NO.1 |
1 | ||
| 17885A - HOSE, AIR CLEANER, NO.5 | ||||
| 17881-13120 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17881-13120 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-47036 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-47036 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17886 - HOSE, AIR CLEANER, NO.6 | ||||
| 17882-71040 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17882-71040 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17886B - HOSE, AIR CLEANER, NO.7 | ||||
| 17881-73090 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17881-73090 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17886C - CLAMP(FOR AIR CLEANER HOSE, NO.7) | ||||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17886C - CLAMP(FOR AIR CLEANER HOSE, NO.7) | ||||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-71040 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| 17895-71040 |
3Y..YY61..EUR W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90179-06007 | ||||
| 90179-06012 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90460-01038 | ||||
| 90460-01039 | ||||
| 90460-01045 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60820 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91656-40820 | ||||
| 91661-60825 | ||||
(8701- )2Y,3Y..LHD
W/FRONT SCHNORKEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31070 |
2Y,3Y..YY51,6# |
1 | ||
| 17882-31070 |
2Y,3Y..YY51,6# |
1 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882-31070 |
3Y..YY61..EUR W/HOT AIR INTAKE |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
2Y,3Y..YY5#,6# |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| 96111-10750 |
3Y..YY61..EUR W/HOT AIR INTAKE |
4 | ||
| Common parts | ||||
| 90101-08106 | ||||
| 90119-08198 | ||||
| 90119-08471 | ||||
| 90149-80016 | ||||
| 90170-08026 | ||||
| 90176-08015 | ||||
| 90201-08055 | ||||
| 94613-10800 | ||||
ILLUST NO. 2 OF 2(8708-8808)3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 53977-95400 | ||||
| 90119-08471 | ||||
| 90119-08A46 | ||||
| 90159-60168 | ||||
| 90179-06007 | ||||
| 90179-06012 | ||||
| 90179-08104 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90460-01045 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91656-40820 | ||||
| 91661-60825 | ||||
| 91661-60830 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
