YY61L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )2Y,3Y

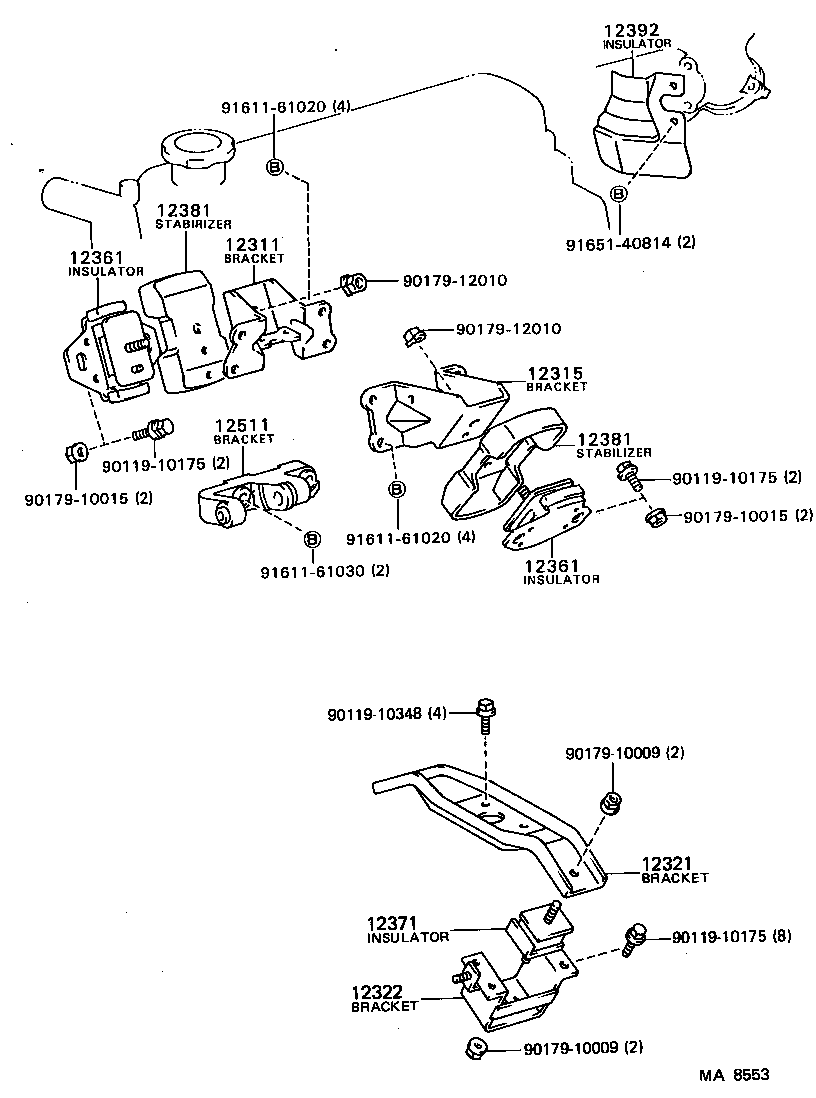

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12371 12381 12381 12392 12511 9011910175 9011910175 9011910175 9011910348 9017910009 9017910009 9017910015 9017910015 9017912010 9017912010 9161161020 9161161020 9161161030 9165140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

2Y,3Y..YY5#,6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

2Y,3Y..YY5#,6#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-73010

2Y,3Y..YY5#,6#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-71070

2Y,3Y..YY5#,6#

RH

 2
12326-71010

2Y,3Y..YY5#,6#

LH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

2Y,3Y..YY5#,6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

2Y,3Y..YY5#,6#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

2Y,3Y..YY5#,6#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

2Y,3Y..YY5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

2Y,3Y..YY5#,6#

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

2Y,3Y..YY5#,6#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

2Y,3Y..YY5#,6#

 1
Common parts
90119-10175
90119-10348
90179-10009
90179-10015
90179-12010
91611-61020
91611-61030
91651-40814

(8708-8808)3Y

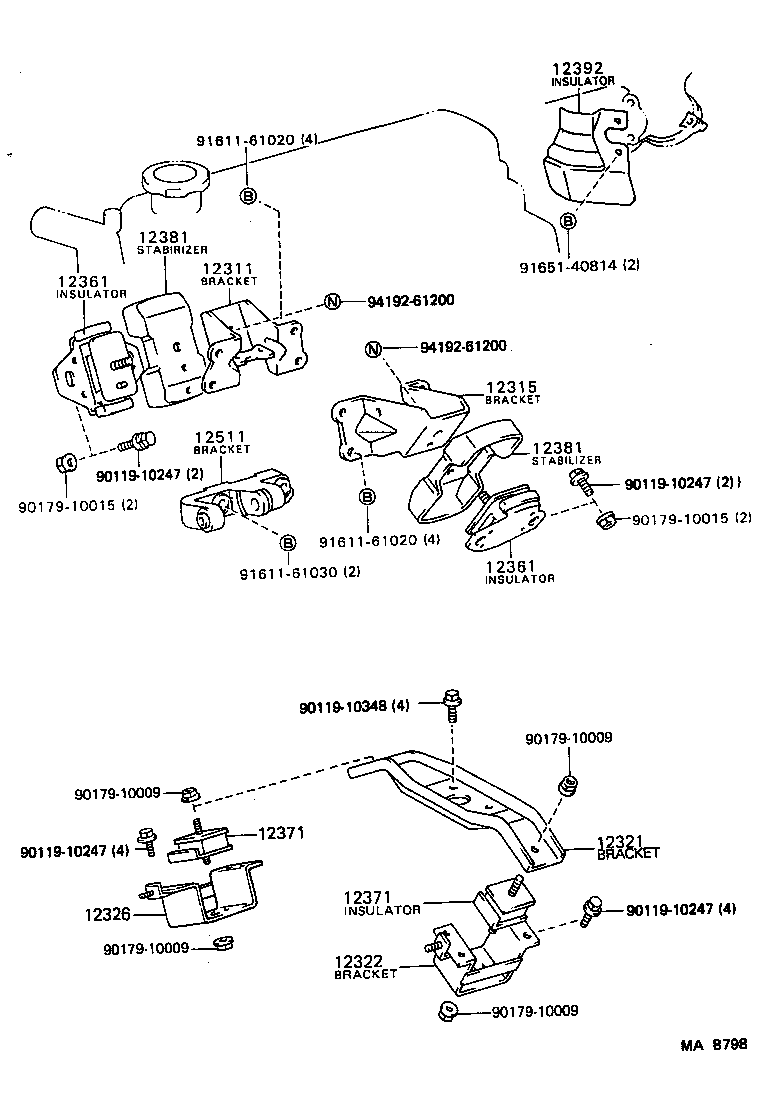

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12326 12361 12361 12371 12371 12381 12381 12392 12511 9011910247 9011910247 9011910247 9011910247 9011910348 9017910009 9017910009 9017910009 9017910009 9017910015 9017910015 9161161020 9161161020 9161161030 9185140814 9419261200 9419261200
Part # Description Qty Price
Common parts
90119-10247
90119-10348
90179-10009
90179-10015
91611-61020
91611-61030
91851-40814
94192-61200
