YY61L-MDBTW3 (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

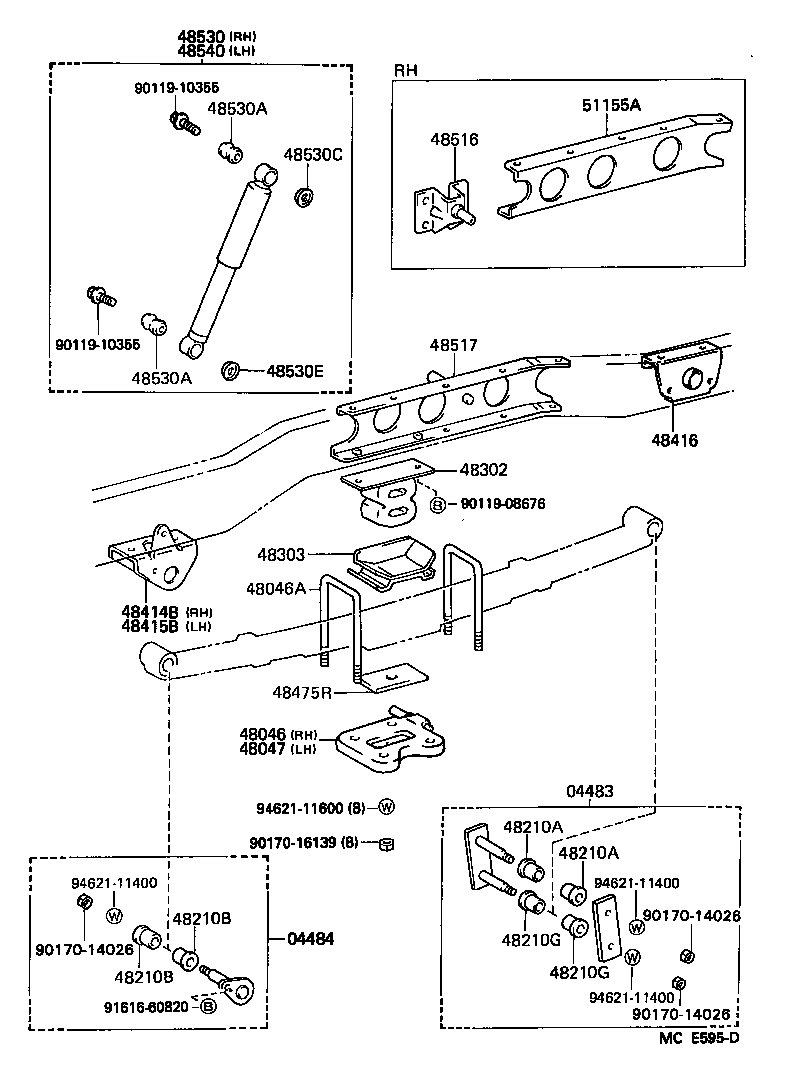

ILLUST NO. 1 OF 2(8708- )WT

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48302 48303 48414B 48415B 48416 48475R 48516 48517 48530 48530A 48530A 48530C 48530E 48540 51155A 9011908676 9011910355 9011910355 9017014026 9017014026 9017014026 9017016139 9161660820 9462111400 9462111400 9462111400 9462111600
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-25011

LY6#,YY61

 2
04484 - PIN KIT, REAR SPRING
04482-25011

LY6#,YY61

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-25070

LY6#,YY61..WT

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16031

LY6#,YY61..WT

L=200

 2
90117-16062

LY6#,YY61..WT

L=190

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-25070

LY6#,YY61..WT

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18005

LY6#,YY61

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18005

LY6#,YY61

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18005

LY6#,YY61

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18005

LY6#,YY61

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18005

LY6#,YY61

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18005

LY6#,YY61

 4
48302 - SPRING SUB-ASSY, HOLLOW
48302-25051

LY6#,YY61..WT

 2
48303 - SEAT SUB-ASSY, HOLLOW SPRING
48303-25060

LY6#,YY61..WT

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-25050

LY6#,YY61..WT

 1
48415B - BRACKET, SPRING, NO.3 LH
48415-25020

LY6#,YY61..WT

 1
48416 - BRACKET, SPRING, NO.4
48416-25080

LY6#,YY61..WT

RH

 1
48417-25060

LY6#,YY61..WT

LH

 1
48475R - PLATE, DISTANCE(FOR REAR)
48475-36051

LY6#,YY61..WT

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-25041

LY6#,YY61..WT

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-25040

LY6#,YY61..WT

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80070

LY6#,YY61..WT

MARK 48531-25090

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

LY6#,YY61..WT

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

LY6#,YY61..WT

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LY6#,YY61

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LY6#,YY61..WT

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80070

LY6#,YY61..WT

MARK 48531-25090

 1
51155A - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-25050

LY6#,YY61..WT

 1
Common parts
90119-08676
90119-10355
90170-14026
90170-16139
91616-60820
94621-11400
94621-11600

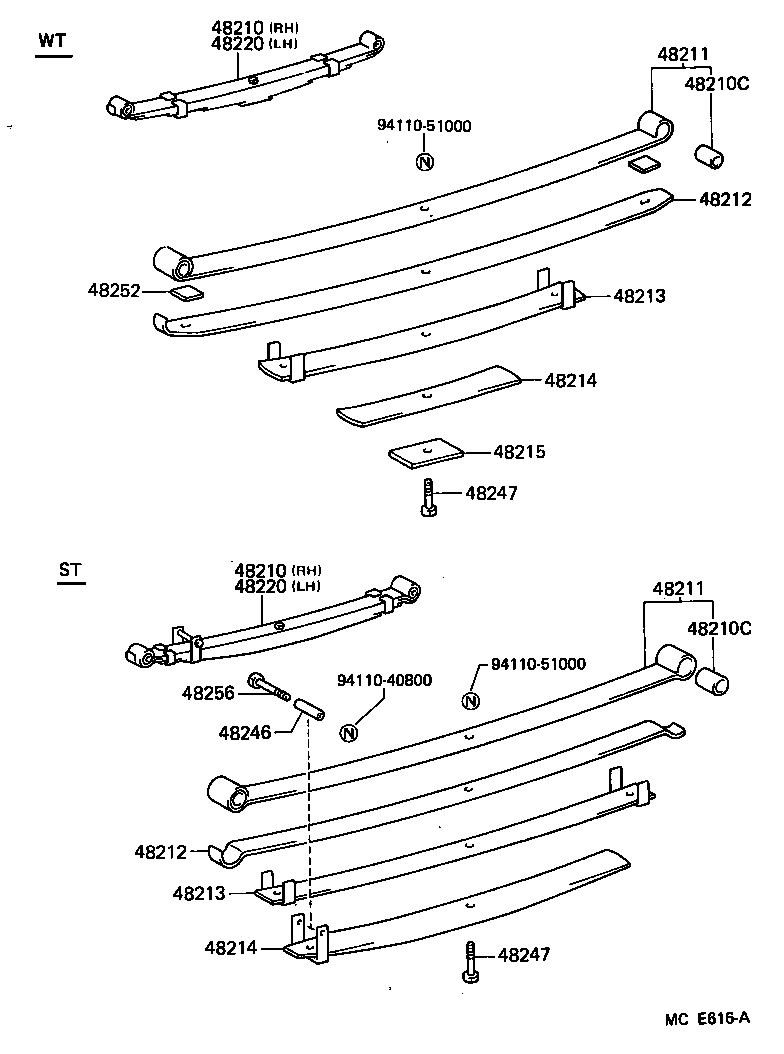

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48220 48220 48246 48247 48247 48252 48256 9411040800 9411051000 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-25500

LY6#,YY61..WT

5-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-25500

LY6#,YY61..WT

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
48299-25140

LY6#,YY61

 4
48210C - BUSH(FOR REAR SPRING LEAF)
48299-25140

LY6#,YY61

 4
48211 - LEAF, REAR SPRING, NO.1
48201-25500

LY6#,YY61..WT

 2
48211 - LEAF, REAR SPRING, NO.1
48201-25500

LY6#,YY61..WT

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25500

LY6#,YY61..WT

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25500

LY6#,YY61..WT

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25500

LY6#,YY61..WT

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25500

LY6#,YY61..WT

 2
48214 - LEAF, REAR SPRING, NO.4
48214-25500

LY6#,YY61..WT

 2
48214 - LEAF, REAR SPRING, NO.4
48214-25500

LY6#,YY61..WT

 2
48215 - LEAF, REAR SPRING, NO.5
48215-25140

LY6#,YY61..WT

 2
48220 - SPRING ASSY, REAR LH
48210-25500

LY6#,YY61..WT

5-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-25500

LY6#,YY61..WT

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-36020

LY6#,YY61..WT

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36020

LY6#,YY61..WT

 2
48252 - SILENCER, REAR SPRING
48252-26020

LY6#,YY61..WT

 4
Common parts
94110-40800
94110-51000
