YY61L-MDBTW (1985)
Toyota Dyna150
Production
Aug 1985
-
Aug 1987
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|

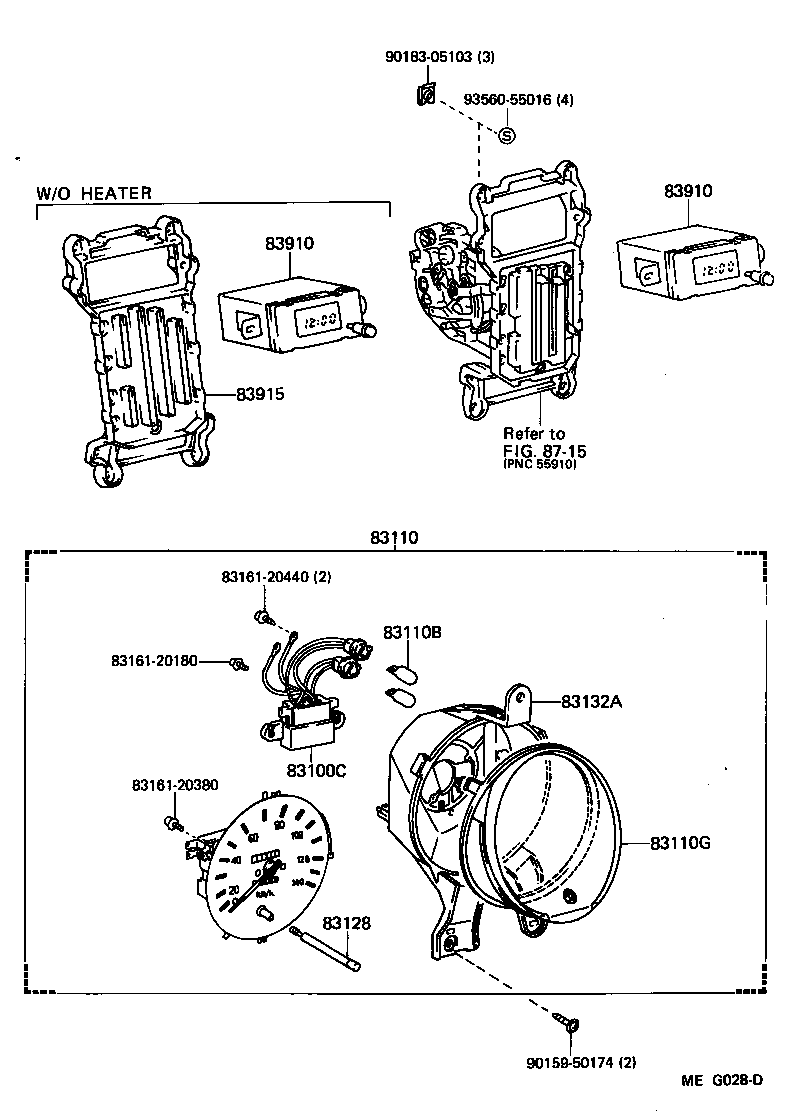

(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 83101-95409 |
YY5#,6# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95441 |
YY5#,6# KM |
1 | ||
| 83110B - BULB, SPEEDOMETER | ||||
| 99132-12034 |
LY60,YY5#,6# |
2 | ||
| 83110G - GLASS, SPEEDOMETER | ||||
| 83134-95406 |
LY60,YY5#,6# |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89300 |
LY60,YY5#,6# |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-95403 |
LY60,YY5#,6# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95403 |
LY60,YY5#,6# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95403 |
LY60,YY5#,6# |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 55912-95404 |
LY60,YY5#,6#..EUR,GEN W/O HEATER |
1 | ||
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

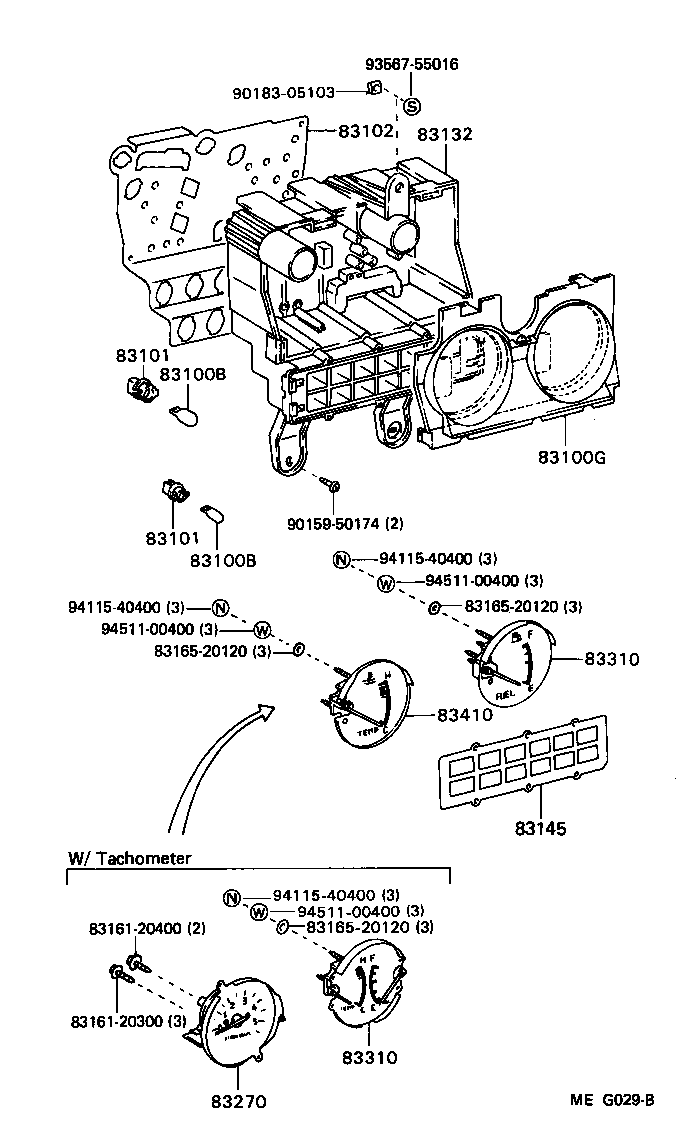

(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LY60,YY5#,6# 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LY60,YY5#,6# 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-95405 |
LY60,YY5#,6# |
1 | ||
| 83134-92600 |
LY60,YY5#,6# W/TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY60,YY5#,6# 12V 3.4W |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LY60,YY5#,6# 12V 3.4W |
10 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95K01 |
YY5#,6# W/TACHOMETER |
1 | ||
| 83247-95K00 |
YY5#,6# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-92602 |
LY60,YY5#,6# W/TACHOMETER |
1 | ||
| 83132-95402 |
LY60,YY5#,6# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95K00 |
YY61..EUR |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-95404 |
YY5#,6# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95405 |
LY60,YY5#,6#..EUR,GEN |
1 | ||
| 83243-95406 |
LY60,YY5#,6#..EUR,GEN W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95405 |
LY60,YY5#,6#..EUR,GEN |
1 | ||
| 83243-95406 |
LY60,YY5#,6#..EUR,GEN W/TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95404 |
LY60,YY5#,6#..EUR,GEN |
1 | ||
| Common parts | ||||
| 83161-20300 | ||||
| 83161-20400 | ||||
| 83165-20120 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

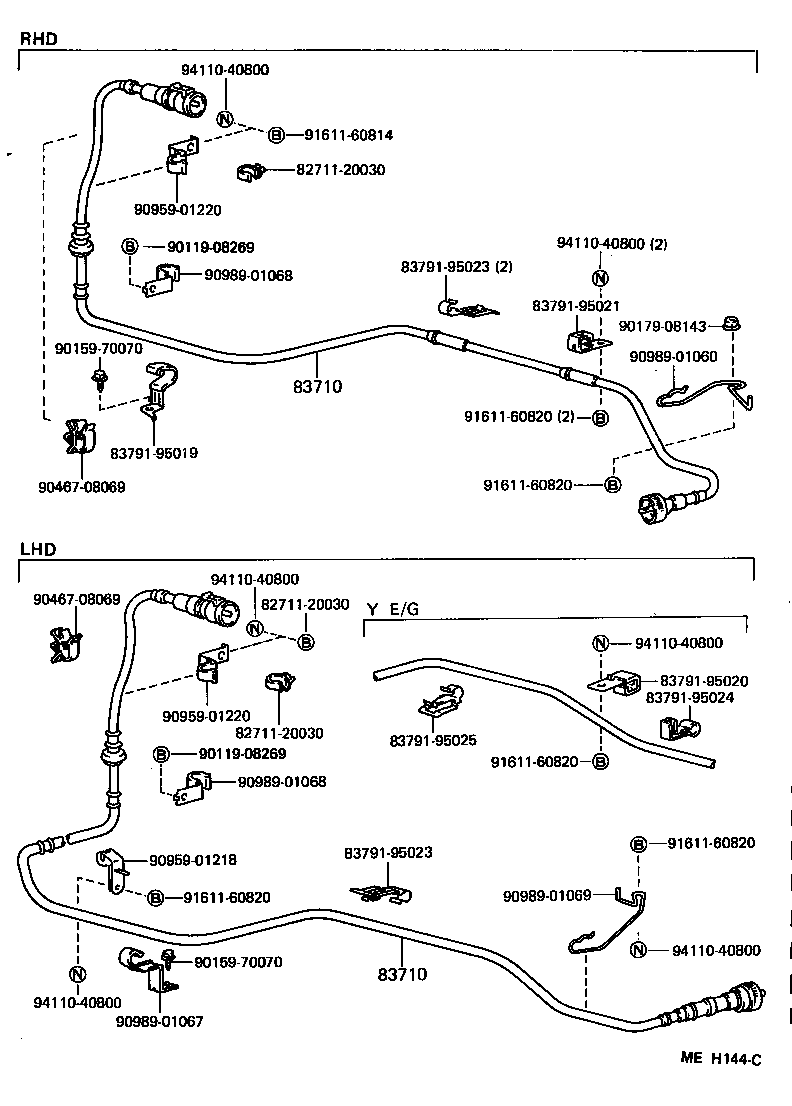

(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95021 |
LY60,YY5#,6#..LHD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95021 |
LY60,YY5#,6#..LHD |
1 | ||
| Common parts | ||||
| 82711-20030 | ||||
| 83791-95019 | ||||
| 83791-95020 | ||||
| 83791-95021 | ||||
| 83791-95023 | ||||
| 83791-95024 | ||||
| 83791-95025 | ||||
| 90119-08269 | ||||
| 90159-70070 | ||||
| 90179-08143 | ||||
| 90467-08069 | ||||
| 90959-01218 | ||||
| 90959-01220 | ||||
| 90989-01060 | ||||
| 90989-01067 | ||||
| 90989-01068 | ||||
| 90989-01069 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
