YY61L-MDBTW (1985)
Toyota Dyna150
Production
Aug 1985
-
Aug 1987
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

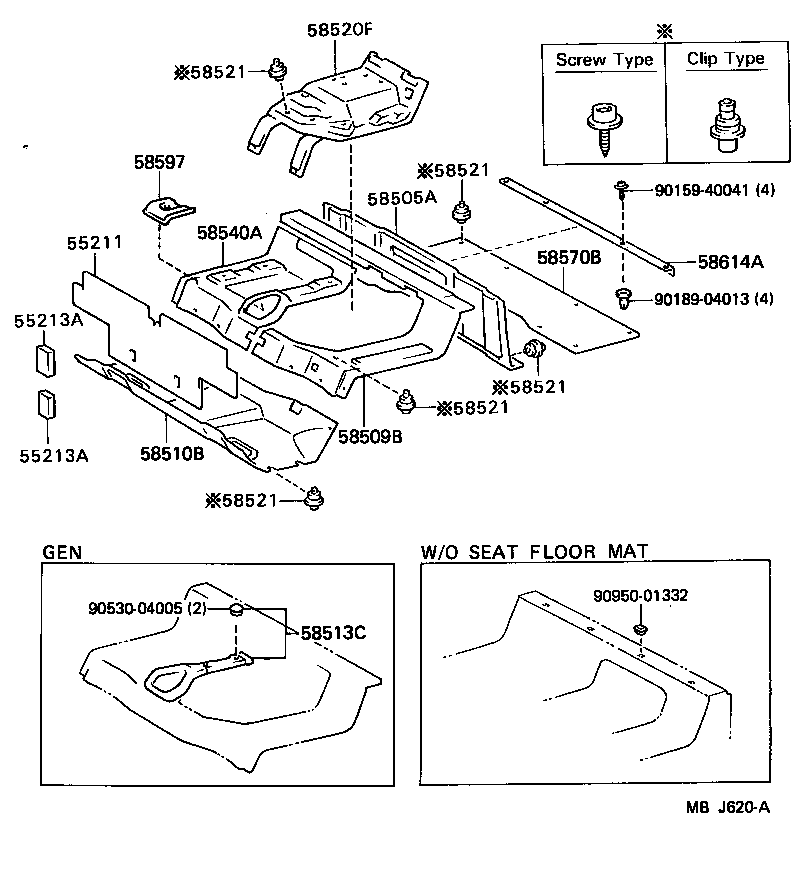

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55211 - SILENCER, FRONT PANEL | ||||
| 55211-95404 |
LY60,YY61..EUR |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-95401 |
LY60,YY5#,6# LWR |
1 | ||
| 55213-95400 |
LY60,YY5#,6# UPR |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-95401 |
LY60,YY5#,6# LWR |
1 | ||
| 55213-95400 |
LY60,YY5#,6# UPR |
1 | ||
| 58509B - MAT SUB-ASSY, SEAT FLOOR | ||||
| 58509-9501903 |
LY60,YY61..EUR SHADOW GRAY,SHADOW GRAY |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-9503703 |
LY60,YY61..EUR SHADOW GRAY,SHADOW GRAY |
1 | ||
| 58510-9503903 |
LY60,YY61..EUR W/*ACIS,SHADOW GRAY,SHADOW GRAY |
1 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-9501303 |
LY60,YY61..EUR SHADOW GRAY,SHADOW GRAY |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
LY60,YY5#,6# CLIP TYPE |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
LY60,YY5#,6# CLIP TYPE |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
LY60,YY5#,6# CLIP TYPE |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
LY60,YY5#,6# CLIP TYPE |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
LY60,YY5#,6# CLIP TYPE |
1 | ||
| 58540A - MAT ASSY, FRONT FLOOR, REAR NO.1 | ||||
| 58540-9501503 |
YY61..EUR SHADOW GRAY,SHADOW GRAY |
1 | ||
| Common parts | ||||
| 90159-40041 | ||||
| 90189-04013 | ||||
| 90530-04005 | ||||
| 90950-01332 | ||||
