YY61L-MDBTW (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

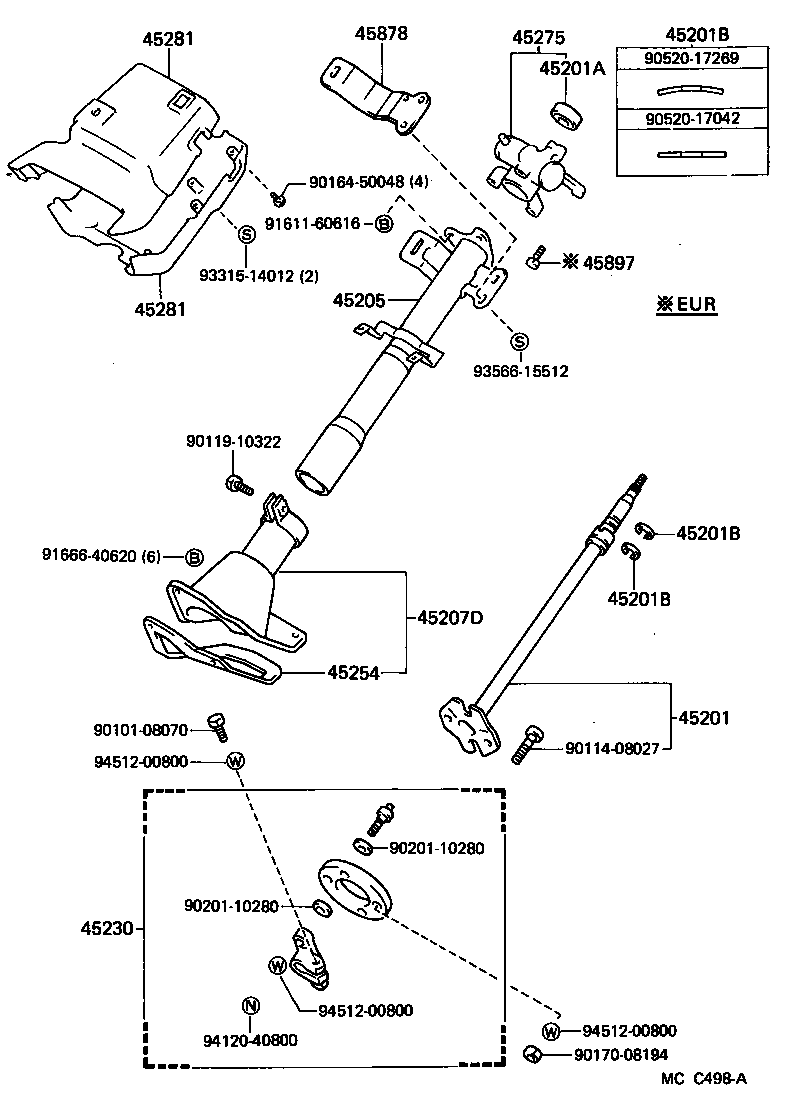

Click highlighted areas on diagram

diagram 45201 45201A 45201B 45201B 45201B 45205 45207D 45230 45254 45275 45281 45281 45878 45897 9010108070 9011408027 9011910322 9016450048 9017008194 9020110280 9020110280 9052017042 9052017269 9161160616 9166640620 9331514012 9356615512 9412040800 9451200800 9451200800 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45201-25090

LY60,YY5#,6#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

LY60,YY5#,6#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

LY60,YY5#,6#

T=1.20,UPR

 1
90520-17269

LY60,YY5#,6#

T=1.20,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

LY60,YY5#,6#

T=1.20,UPR

 1
90520-17269

LY60,YY5#,6#

T=1.20,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

LY60,YY5#,6#

T=1.20,UPR

 1
90520-17269

LY60,YY5#,6#

T=1.20,LWR

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-25121

LY60,YY52,6#

 1
45205-25120

LY60,YY5#,6#

 1
45207D - COVER SUB-ASSY, MAIN SHAFT JOINT
45207-25030

LY60,YY5#,6#..LHD

 1
45207-25031

LY60,YY52,6#..LHD

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-25011

LY60,YY5#,6#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-36100

LY60,YY5#,6#..LHD

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36160

LY60,YY5#,6#

 1
45281 - HOUSING, STEERING COLUMN
45286-3669003

LY60,YY5#,6#..LHD

UPR,SHADOW GRAY,SHADOW GRAY

 1
45287-3628003

LY60,YY5#,6#..LHD

LWR,SHADOW GRAY,SHADOW GRAY

 1
45281 - HOUSING, STEERING COLUMN
45286-3669003

LY60,YY5#,6#..LHD

UPR,SHADOW GRAY,SHADOW GRAY

 1
45287-3628003

LY60,YY5#,6#..LHD

LWR,SHADOW GRAY,SHADOW GRAY

 1
45878 - BRACKET, STEERING COLUMN UPPER SUPPORT
45879-25011

LY60,YY52,6#

 1
Common parts
90101-08070
90114-08027
90119-10322
90164-50048
90170-08194
90201-10280
90520-17042
90520-17269
91611-60616
91666-40620
93315-14012
93566-15512
94120-40800
94512-00800
