YY61L-MDBTW (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )EUR

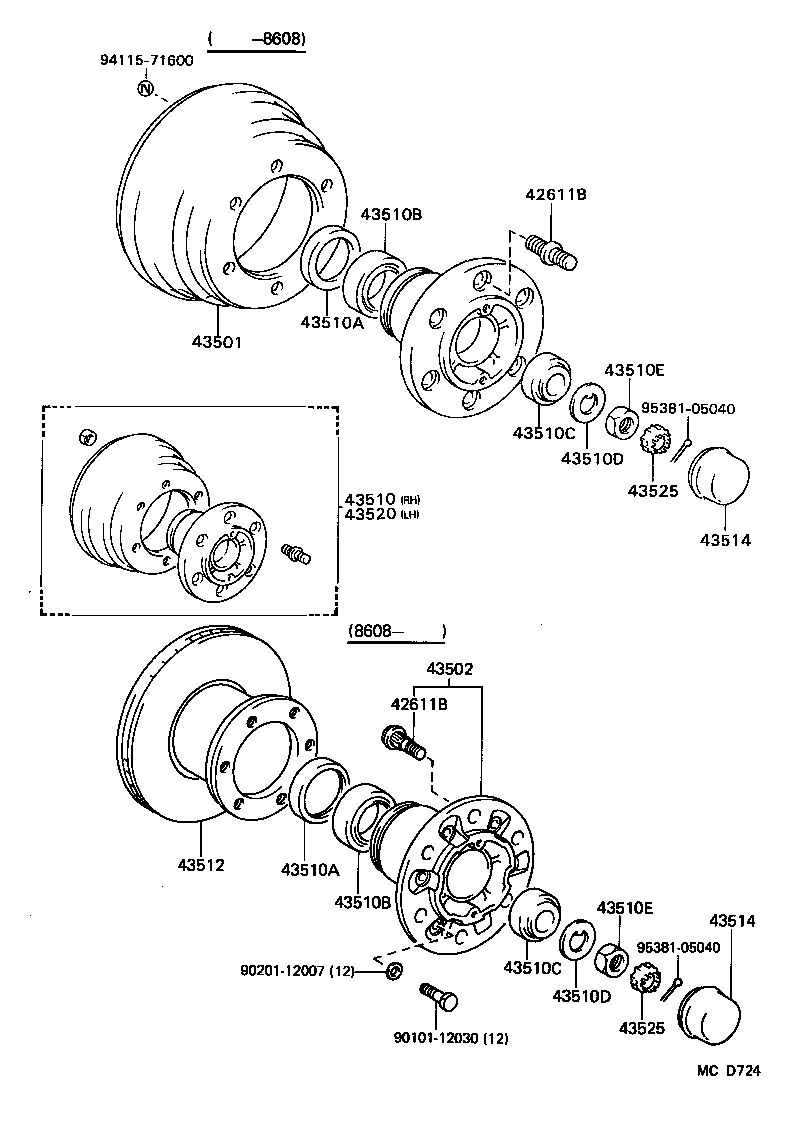

Click highlighted areas on diagram

diagram 42611B 42611B 43501 43502 43510 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43512 43514 43514 43520 43525 43525 9010112030 9020112007 9411571600 9538105040 9538105040
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02061

LY60,YY61..EUR

RH

 6
90942-02062

LY60,YY61..EUR

LH

 6
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02061

LY60,YY61..EUR

RH

 6
90942-02062

LY60,YY61..EUR

LH

 6
43502 - HUB SUB-ASSY, FRONT AXLE
43501-25010

LY60,YY61..EUR

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

LY60,YY61..EUR

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

LY60,YY61..EUR

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

LY60,YY61..EUR

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

LY60,YY61..EUR

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

LY60,YY61..EUR

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

LY60,YY61..EUR

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

LY60,YY61..EUR

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

LY60,YY61..EUR

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001

LY60,YY61..EUR

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001

LY60,YY61..EUR

 2
43512 - DISC, FRONT
43512-25050

LY60,YY61..EUR

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

LY60,YY61..EUR

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

LY60,YY61..EUR

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010

LY60,YY61..EUR

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010

LY60,YY61..EUR

 2
Common parts
90101-12030
90201-12007
94115-71600
95381-05040
