YY61L-MDBTW (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

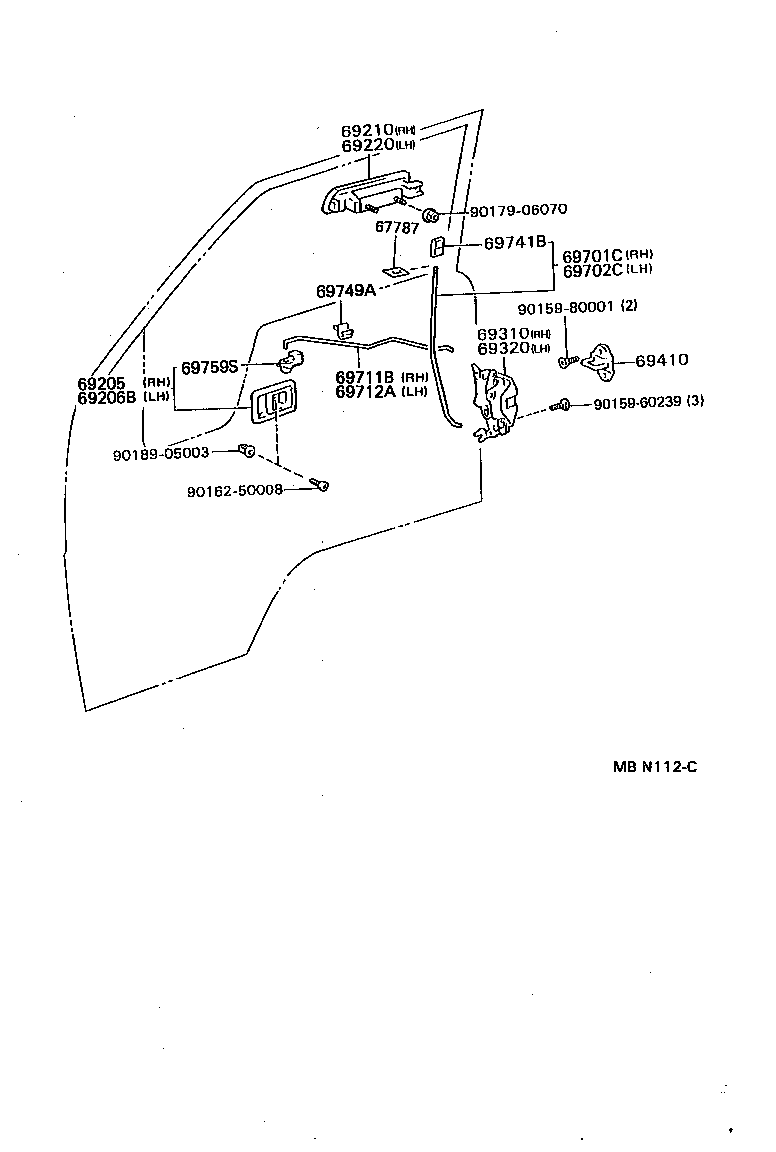

Click highlighted areas on diagram

diagram 67787 69205 69206B 69210 69220 69310 69320 69410 69701C 69702C 69711B 69712A 69741B 69749A 69759S 9015960239 9015980001 9016250008 9017906070 9018905003
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1004016

LY6#,YY61

BROWN,TRIM4#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1004016

LY6#,YY61

BROWN,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-95400

LY6#,YY61

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95400

LY6#,YY61

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95409

LY6#,YY61

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-95408

LY6#,YY61

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-89103

LY6#,YY61

 2
69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69701-9540001

LY6#,YY61

BLACK,TRIM4#

 1
69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69702-9540001

LY6#,YY61

BLACK,TRIM4#

 1
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-95403

LY6#,YY61

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-95401

LY6#,YY61

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-2002001

LY6#,YY61

BLACK,TRIM4#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-20010

LY6#,YY61

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-20070

LY6#,YY61

LH

 1
69759-20060

LY6#,YY61

RH

 1
Common parts
90159-60239
90159-80001
90162-50008
90179-06070
90189-05003
