YY61L-MDBTW (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

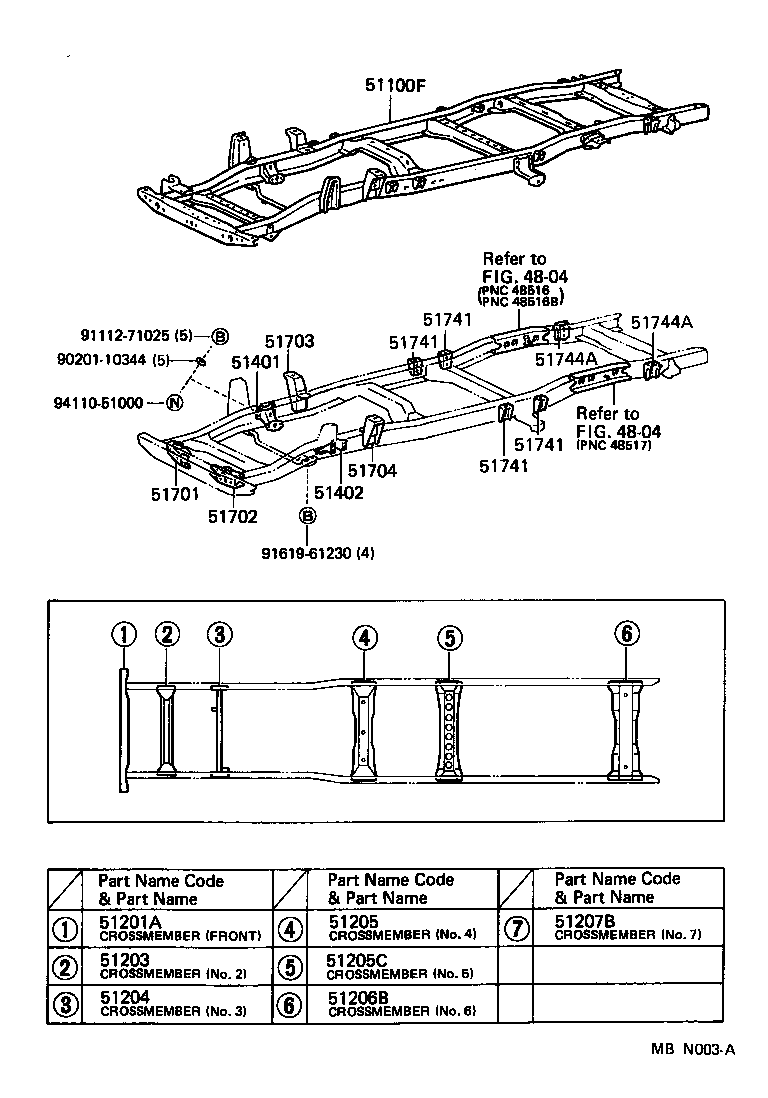

Click highlighted areas on diagram

diagram 4804 4804 51100F 51201A 51203 51204 51205 51205C 51206B 51207B 51401 51402 51701 51702 51703 51704 51741 51741 51741 51741 51744A 51744A 9020110344 9111271025 9161961230 9411051000
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51002-25790

LY6#,YY61..WT

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-25090

LY6#,YY61

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-25130

LY6#,YY61

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-25110

LY60,YY61

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-25060

LY6#,YY61

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-25050

LY6#,YY61

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51206-25090

LY6#,YY61..WT

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25150

LY6#,YY61

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-25150

LY6#,YY61

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-25050

LY6#,YY61

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-25010

LY6#,YY61

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-25090

LY6#,YY61

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-25030

LY6#,YY61

 1
Common parts
90201-10344
91112-71025
91619-61230
94110-51000
Linked diagrams
4804
