YY61L-MDBTW (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 48110 48111 48112 48113 48114 48115 48120 48147 9411051000
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-25601

LY6#,YY61..WT

5-LEAF

 1
48111 - LEAF, FRONT SPRING, NO.1
48111-25601

LY6#,YY61..WT

DRIVER SEAT SIDE

 1
48111-25591

LY6#,YY61..WT

PASSENGER SEAT SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48102-25591

LY6#,YY61..WT

PASSENGER SEAT SIDE

 1
48102-25601

LY6#,YY61..WT

DRIVER SEAT SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-25591

LY6#,YY61..WT

PASSENGER SEAT SIDE

 1
48113-25601

LY6#,YY61..WT

DRIVER SEAT SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48103-25601

LY6#,YY61..WT

DRIVER SEAT SIDE

 1
48103-25591

LY6#,YY61..WT

PASSENGER SEAT SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48227-36850

LY6#,YY61..WT

 2
48120 - SPRING ASSY, FRONT, LH
48110-25591

LY6#,YY61..WT

5-LEAF

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-25450

LY6#,YY61

 2
Common parts
94110-51000

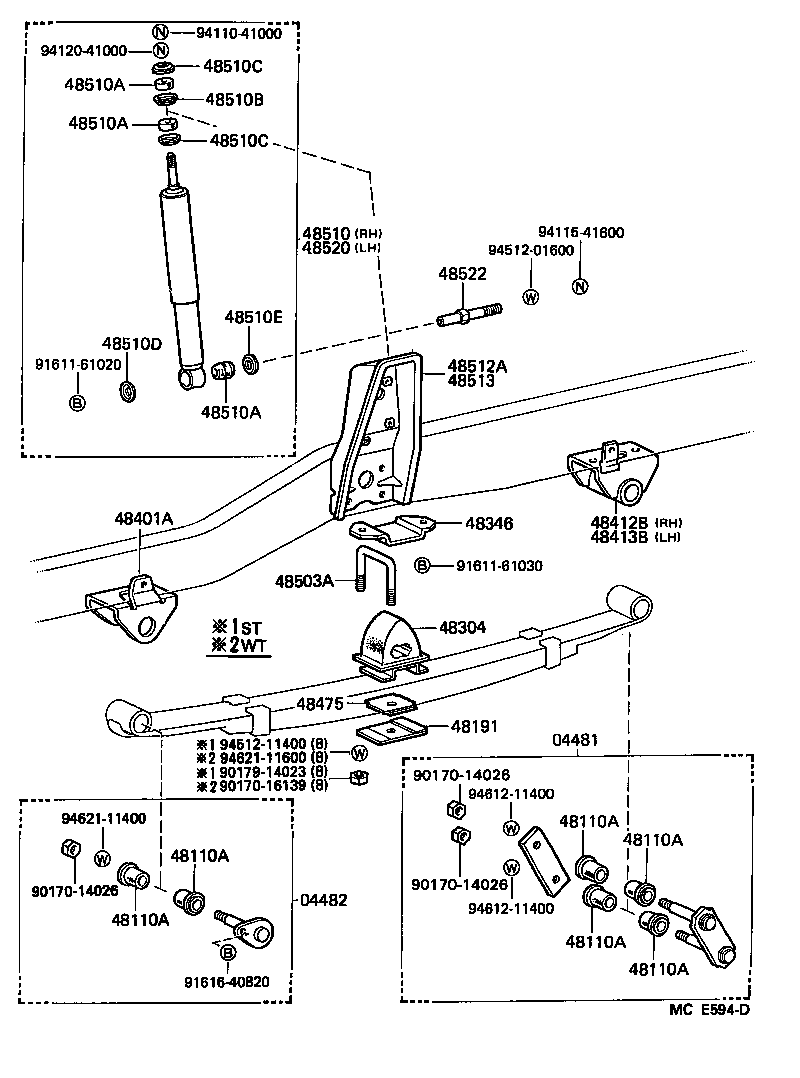

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04481 04482 48110A 48110A 48110A 48110A 48110A 48110A 48191 48304 48346 48401A 48412B 48413B 48475 48503A 48510 48510A 48510A 48510A 48510B 48510C 48510C 48510D 48510E 48512A 48513 48520 48522 9017014026 9017014026 9017014026 9017016139 9017914023 9161161020 9161161030 9161640820 9411041000 9411541600 9412041000 9451201600 9451211400 9461211400 9461211400 9462111400 9462111600
Part # Description Qty Price
04481 - SHACKLE KIT, FRONT SPRING
04481-25031

LY6#,YY61

 2
04482 - PIN KIT, FRONT SPRING
04482-25011

LY6#,YY61

 2
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18005

LY6#,YY61

 12
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18005

LY6#,YY61

 12
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18005

LY6#,YY61

 12
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18005

LY6#,YY61

 12
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18005

LY6#,YY61

 12
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18005

LY6#,YY61

 12
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-35020

LY6#,YY61

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-36021

LY6#,YY61

 2
48346 - STOPPER, BUMPER, FRONT
48346-25140

LY6#,YY61..WT

 2
48401A - BRACKET SUB-ASSY, SPRING, NO.1
48411-25160

LY6#,YY61..WT

 2
48412B - BRACKET, SPRING, NO.2 RH
48433-25060

LY6#,YY61

 1
48413B - BRACKET, SPRING, NO.2 LH
48434-25050

LY6#,YY61

 1
48475 - PLATE, DISTANCE(FOR FRONT)
48475-36070

LY6#,YY61

 1
48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
90117-16032

LY6#,YY61..WT

L=85

 4
90117-16020

LY6#,YY61..WT

L=95

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-29345

LY6#,YY61..WT

MARK 48511-25152

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16004

LY6#,YY61

LWR

 2
90948-01003

LY6#,YY61

UPR

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16004

LY6#,YY61

LWR

 2
90948-01003

LY6#,YY61

UPR

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16004

LY6#,YY61

LWR

 2
90948-01003

LY6#,YY61

UPR

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

LY6#,YY61

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LY6#,YY61

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LY6#,YY61

 4
48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
90948-03007

LY6#,YY61

 2
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03004

LY6#,YY61

 2
48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-25080

LY6#,YY61

 1
48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-25080

LY6#,YY61

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-29345

LY6#,YY61..WT

MARK 48511-25152

 1
48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48522-25010

LY6#,YY61

 2
Common parts
90170-14026
90170-16139
90179-14023
91611-61020
91611-61030
91616-40820
94110-41000
94115-41600
94120-41000
94512-01600
94512-11400
94612-11400
94621-11400
94621-11600
