YY61L-MDBTW (1987)
Toyota Dyna150
Production
Aug 1987
-
Aug 1988
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-26090 |
LY6#,YY61 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35004 |
LY6#,YY61 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
LY6#,YY61 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY6#,YY61 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY6#,YY61 |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
LY6#,YY61 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
LY6#,YY61 |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
LY6#,YY61 |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
LY6#,YY61 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
LY6#,YY61 L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
LY6#,YY61 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| 94613-11001 | ||||

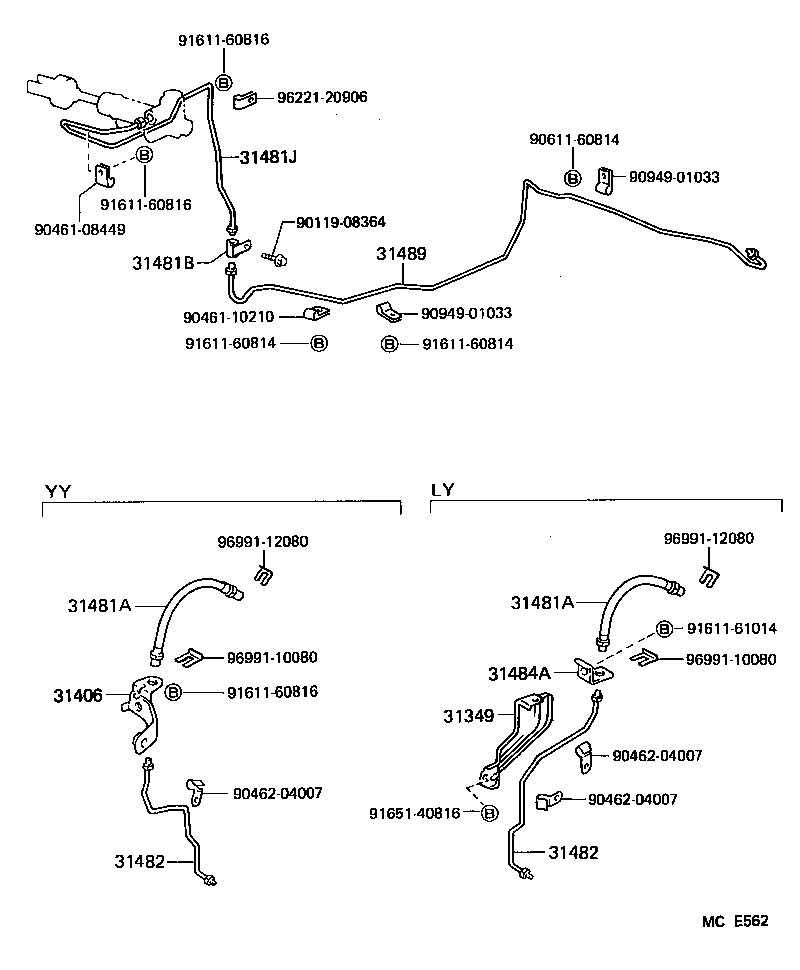

ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26021 |
YY61 |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96815-50370 |
YY61 |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96815-50370 |
YY61 |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12019 |
LY6#,YY61 |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-25120 |
LY60,YY61 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-25090 |
YY61 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-25090 |
YY61 |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-25090 |
LY6#,YY61 |
1 | ||
| Common parts | ||||
| 90119-08364 | ||||
| 90461-08449 | ||||
| 90461-10210 | ||||
| 90462-04007 | ||||
| 90611-60814 | ||||
| 90949-01033 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-61014 | ||||
| 91651-40816 | ||||
| 96221-20906 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
