YY60R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )T3..GEN

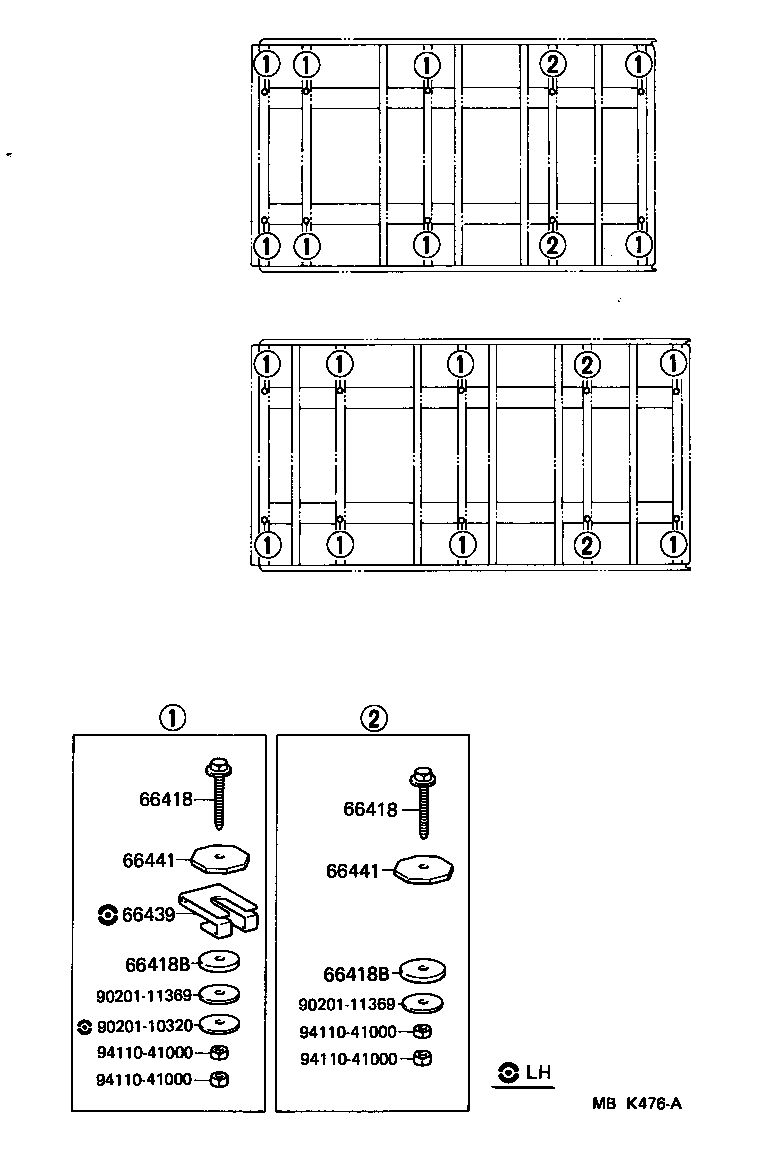

Click highlighted areas on diagram

diagram 66418 66418 66418B 66418B 66439 66441 66441 9020110320 9020111369 9020111369 9411041000 9411041000 9411041000 9411041000
Part # Description Qty Price
66418 - BOLT, MOUNTING
90119-10091

LY60,YY6#..T3

 10
66418 - BOLT, MOUNTING
90119-10091

LY60,YY6#..T3

 10
66418B - SHIM, MOUNTING
90564-12013

LY60,YY5#,6#..ARL,GEN

 10
66418B - SHIM, MOUNTING
90564-12013

LY60,YY5#,6#..ARL,GEN

 10
66439 - SHIM, SUPPORT
66439-95400

LY60,YY5#,6#..ARL,GEN

 3
66441 - SHIM, MOUNTING, NO.1
66441-95A01

LY60,YY5#,6#..ARL,GEN

 10
66441 - SHIM, MOUNTING, NO.1
66441-95A01

LY60,YY5#,6#..ARL,GEN

 10
Common parts
90201-10320
90201-11369
94110-41000
