YY60R-MDB (1985)
Toyota Dyna150
Production
Aug 1985
-
Aug 1987
Engine
2Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

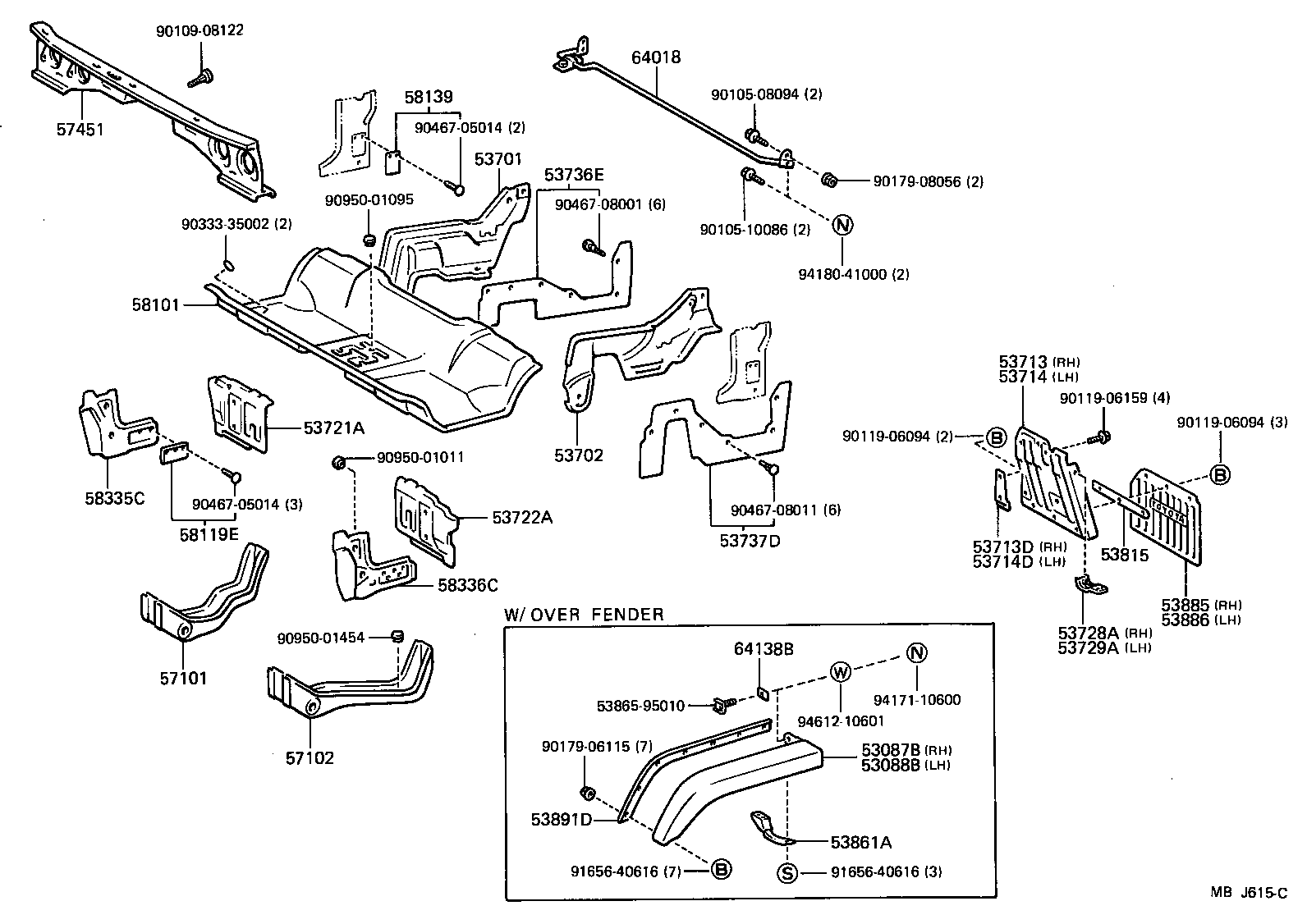

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53707-95011 |
YY5#,6# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53708-95011 |
LY60,YY5#,6# |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53715-95A01 |
LY60,YY6#..T2,T3 |
1 | ||
| 53713D - EXTENSION, FRONT FENDER APRON, RH | ||||
| 53747-95010 |
LY60,YY6#..T2,T3 |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53716-95A02 |
LY60,YY6#..T2,T3 |
1 | ||
| 53714D - EXTENSION, FRONT FENDER APRON, LH | ||||
| 53748-95010 |
LY60,YY6#..T2,T3 |
1 | ||
| 53721A - APRON, FRONT FENDER, NO.2 RH | ||||
| 53721-95402 |
LY60,YY6#..RHD |
1 | ||
| 53722A - APRON, FRONT FENDER, NO.2 LH | ||||
| 53722-95403 |
LY60,YY6#..RHD |
1 | ||
| 53736E - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-95010 |
LY60,YY5#,6# |
1 | ||
| 53737D - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-95010 |
LY60,YY5#,6# |
1 | ||
| 53815 - PLATE, MUDGUARD RUBBER SET, FRONT | ||||
| 53887-95010 |
LY60,YY60..T2,T3 |
2 | ||
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95A03 |
LY60,YY6#..T2,T3 |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53881-95A03 |
LY60,YY6#..T2,T3 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57011-95010 |
LY60,YY5#,6# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57012-95010 |
LY60,YY5#,6# |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-95014 |
LY60,YY6#..RHD |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95051 |
LY60,YY6#..RHD |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
LY60,YY5#,6# |
2 | ||
| 58139 - COVER, FRONT FLOOR SIDE, REAR | ||||
| 58139-95400 |
LY60,YY6#..T2,T3 LH |
1 | ||
| 58139-95401 |
LY60,YY6#..T2,T3 RH |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-95401 |
LY60,YY5#,6# |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-95401 |
LY60,YY5#,6# |
1 | ||
| Common parts | ||||
| 53865-95010 | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90109-08122 | ||||
| 90119-06094 | ||||
| 90119-06159 | ||||
| 90179-06115 | ||||
| 90179-08056 | ||||
| 90333-35002 | ||||
| 90467-05014 | ||||
| 90467-08001 | ||||
| 90467-08011 | ||||
| 90950-01011 | ||||
| 90950-01095 | ||||
| 90950-01454 | ||||
| 91656-40616 | ||||
| 94171-10600 | ||||
| 94180-41000 | ||||
| 94612-10601 | ||||
(8508- )

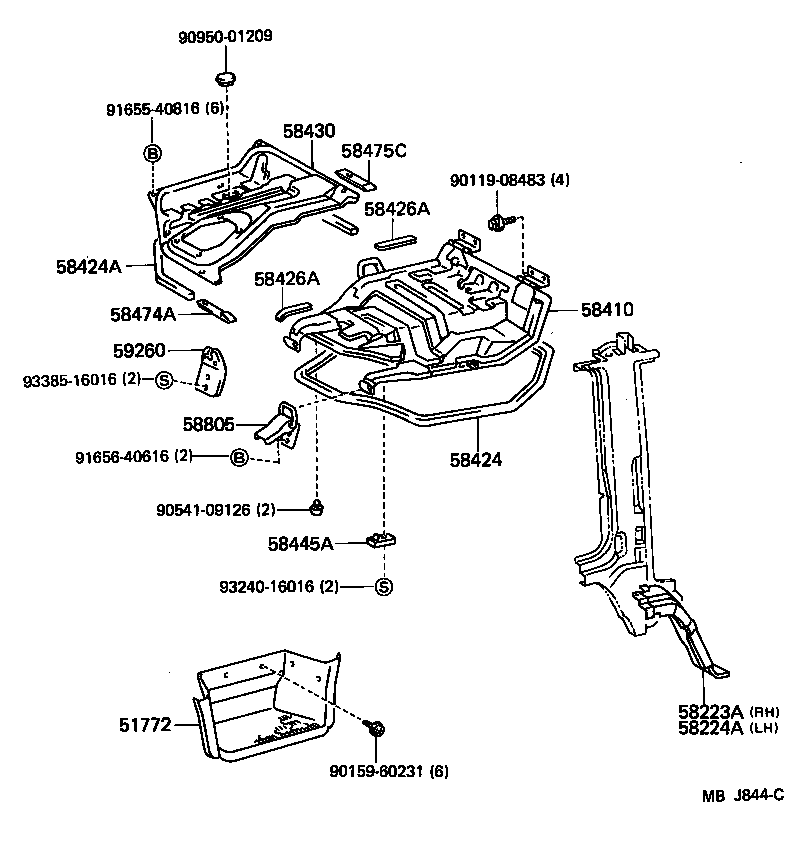

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51771-95406 |
LY60,YY5#,6# RH |
1 | ||
| 51772-95406 |
LY60,YY5#,6# LH |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-9540303 |
LY60,YY6#..RHD..GEN GRAY,GRAY |
1 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58424-95405 |
LY60,YY5#,6# |
1 | ||
| 58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58444-95402 |
LY60,YY5#,6# |
1 | ||
| 58426A - PROTECTOR, ENGINE SERVICE HOLE | ||||
| 58426-95405 |
LY60,YY5#,6# |
1 | ||
| 58426A - PROTECTOR, ENGINE SERVICE HOLE | ||||
| 58426-95405 |
LY60,YY5#,6# |
1 | ||
| 58430 - COVER ASSY, SUB-FLOOR SERVICE HOLE | ||||
| 58407-95A10 |
LY60,YY6#..RHD |
1 | ||
| 58445A - CUSHION, ENGINE SERVICE HOLE COVER | ||||
| 58445-95400 |
YY61..GEN;LY60,YY51,60 |
85 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
LY60,YY5#,6# |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95A01 |
LY60,YY5#,6# |
1 | ||
| 58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 71901-9570403 |
LY60,YY5#,6# GRAY,SHADOW GRAY |
2 | ||
| Common parts | ||||
| 90119-08483 | ||||
| 90159-60231 | ||||
| 90541-09126 | ||||
| 90950-01209 | ||||
| 91655-40816 | ||||
| 91656-40616 | ||||
| 93240-16016 | ||||
| 93385-16016 | ||||
