YY60L-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

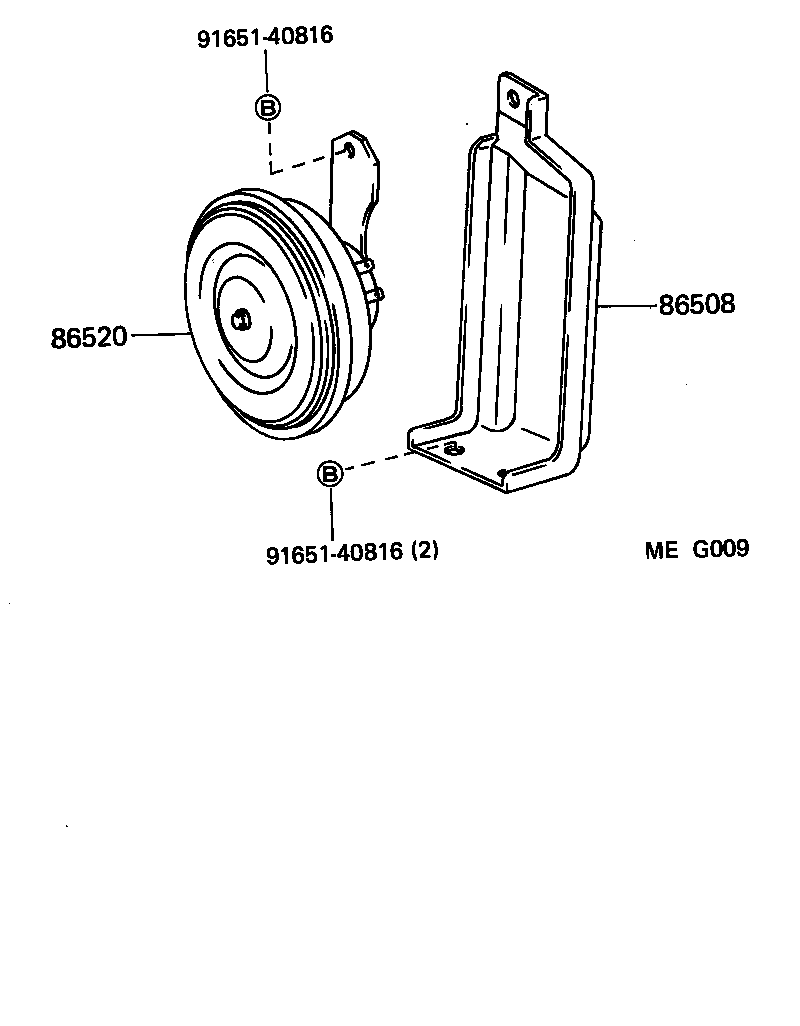

Click highlighted areas on diagram

diagram 86508 86520 9165140816 9165140816
Part # Description Qty Price
86508 - BRACKET SUB-ASSY, HORN
86591-95011

LY60,YY5#,6#

 1
86520 - HORN ASSY, LOW PITCHED
86520-95J07

LY60,YY5#,6#..GEN

CHINA SPEC

 1
86520-22110

LY60,YY6#..ARL,GEN

MARUKO

 1
86520-22100

LY60,YY6#..ARL,GEN

DENSO

 1
86520-22140

LY60,YY6#..GEN

W/RADIO:MW/SW

 1
Common parts
91651-40816
