YY60L-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

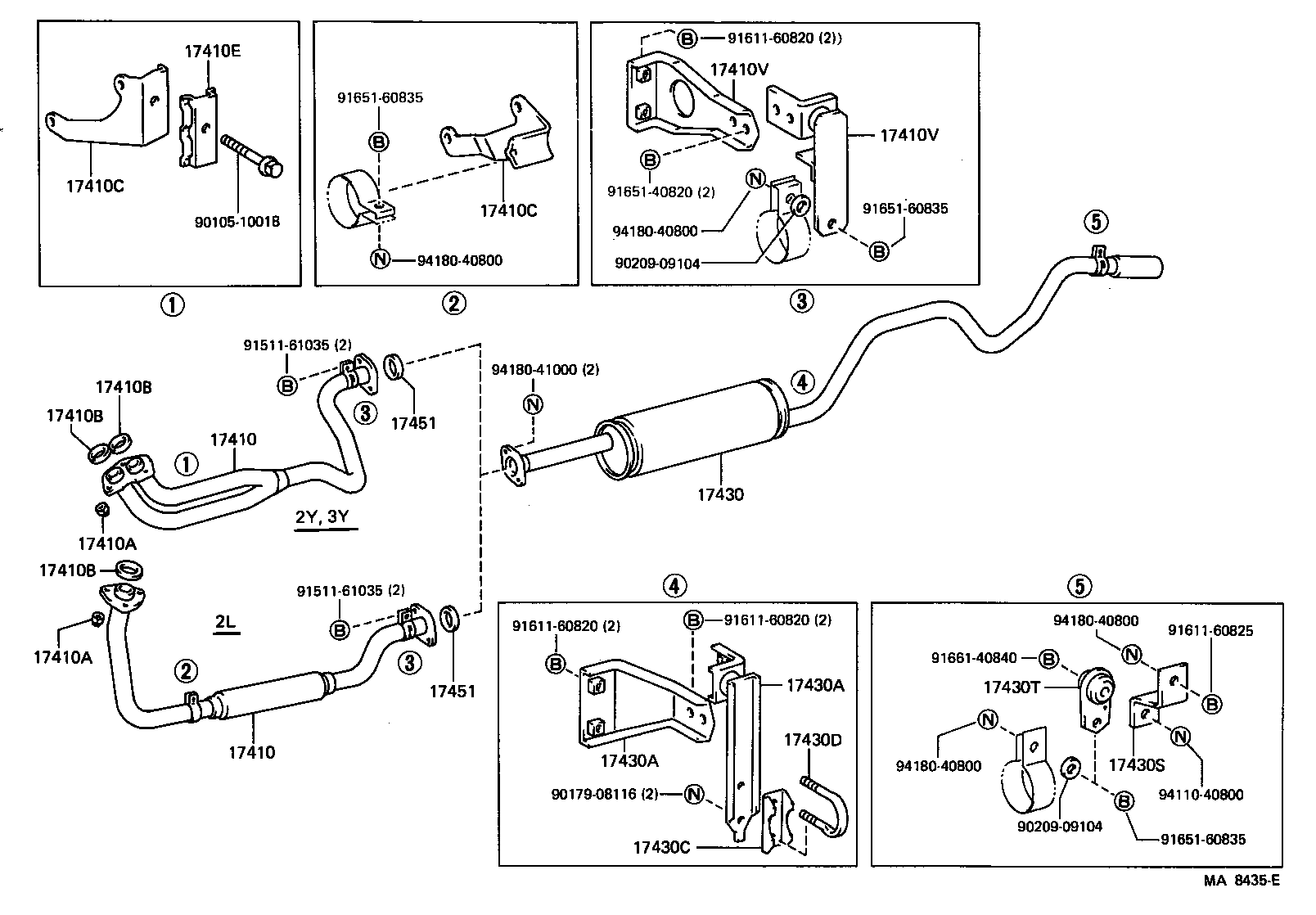

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410B 17410C 17410C 17410E 17410V 17410V 17430 17430A 17430A 17430C 17430D 17430S 17430T 17451 17451 9010510018 9017908116 9020909104 9020909104 9151161035 9151161035 9161160820 9161160820 9161160820 9161160825 9165140820 9165160835 9165160835 9165160835 9166140840 9411040800 9418040800 9418040800 9418040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-71100

2Y..YY51,60

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-71100

2Y..YY51,60

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,2Y,3Y..LY60,YY5#,6#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,2Y,3Y..LY60,YY5#,6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

2Y,3Y..YY5#,6#

 2
90917-06026

2Y,3Y..YY51,6#..GEN

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

2Y,3Y..YY5#,6#

 2
90917-06026

2Y,3Y..YY51,6#..GEN

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

2Y,3Y..YY5#,6#

 2
90917-06026

2Y,3Y..YY51,6#..GEN

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-71040

2Y..YY51,60

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-71040

2Y..YY51,60

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17589-27010

2Y,3Y..YY5#,6#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54140

2L,2Y,3Y..LY60,YY5#,6#

BODY SIDE

 1
17562-54140

2L,2Y,3Y..LY60,YY5#,6#

PIPE SIDE

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54140

2L,2Y,3Y..LY60,YY5#,6#

BODY SIDE

 1
17562-54140

2L,2Y,3Y..LY60,YY5#,6#

PIPE SIDE

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-73080

2L,2Y,3Y..LY60,YY6#..ARL,GEN

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17563-54060

2L,2Y,3Y..LY60,YY5#,6#

PIPE SIDE

 1
17573-54050

2L,2Y,3Y..LY60,YY5#,6#

BODY SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17563-54060

2L,2Y,3Y..LY60,YY5#,6#

PIPE SIDE

 1
17573-54050

2L,2Y,3Y..LY60,YY5#,6#

BODY SIDE

 1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
90917-04021

2L,2Y,3Y..LY60,YY5#,6#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90117-08205

2L,2Y,3Y..LY60,YY5#,6#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-44020

2L,2Y,3Y..LY60,YY5#,6#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08009

2L,2Y,3Y..LY60,YY5#,6#

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

2L,2Y,3Y..LY60,YY5#,6#

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

2L,2Y,3Y..LY60,YY5#,6#

 1
Common parts
90105-10018
90179-08116
90209-09104
91511-61035
91611-60820
91611-60825
91651-40820
91651-60835
91661-40840
94110-40800
94180-40800
94180-41000
