YY52L-MDP (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

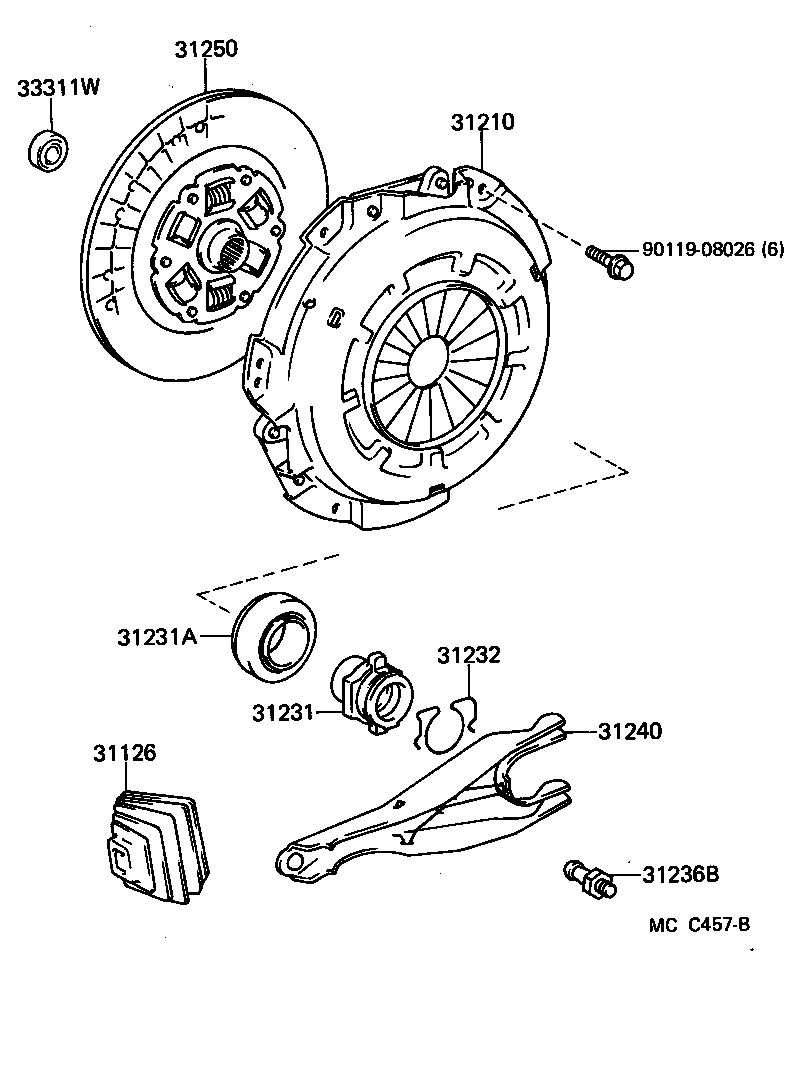

Click highlighted areas on diagram

diagram 31126 31210 31231 31231A 31232 31236B 31240 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

LY60,YY5#,6#

 1
31210 - COVER ASSY, CLUTCH
31210-14130

LY60,YY5#,6#

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-35030

LY60,YY5#,6#

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

LY60,YY5#,6#

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-35010

LY60,YY5#,6#

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

LY60,YY5#,6#

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-35030

LY60,YY5#,6#

 1
31250 - DISC ASSY, CLUTCH
31250-25121

YY52,6#

 1
31250-25120

YY5#,6#

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LY60,YY5#,6#

 1
Common parts
90119-08026
