LY61L-MDBW3 (1988)

Toyota Dyna150

Production Aug 1988 - May 1995
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

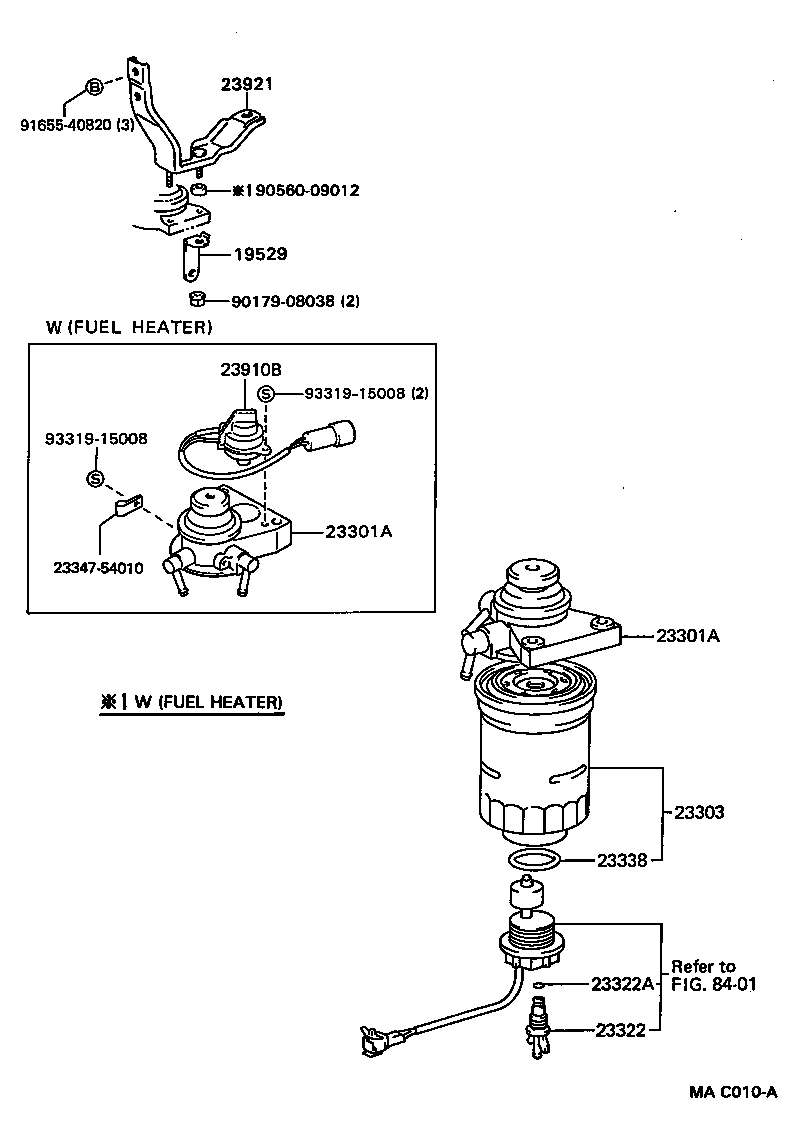

Click highlighted areas on diagram

diagram 19529 23301A 23301A 23303 23322 23322A 23338 2334754010 23910B 23921 8401 9017908038 9056009012 9165540820 9331915008 9331915008
Part # Description Qty Price
19529 - CLAMP
19529-54010

3L..LY61

 1
23301A - CAP ASSY, FUEL FILTER
23301-54330

2L,3L..LY6#

 1
23301A - CAP ASSY, FUEL FILTER
23301-54330

2L,3L..LY6#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2L,3L..LY6#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2L,3L..LY6#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2L,3L..LY6#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2L,3L..LY6#

 1
Common parts
23347-54010
90179-08038
90560-09012
91655-40820
93319-15008
Linked diagrams
8401
