LY61L-MDBTW3 (1988)
Toyota Dyna150
Production
Aug 1988
-
May 1995
Engine
3L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

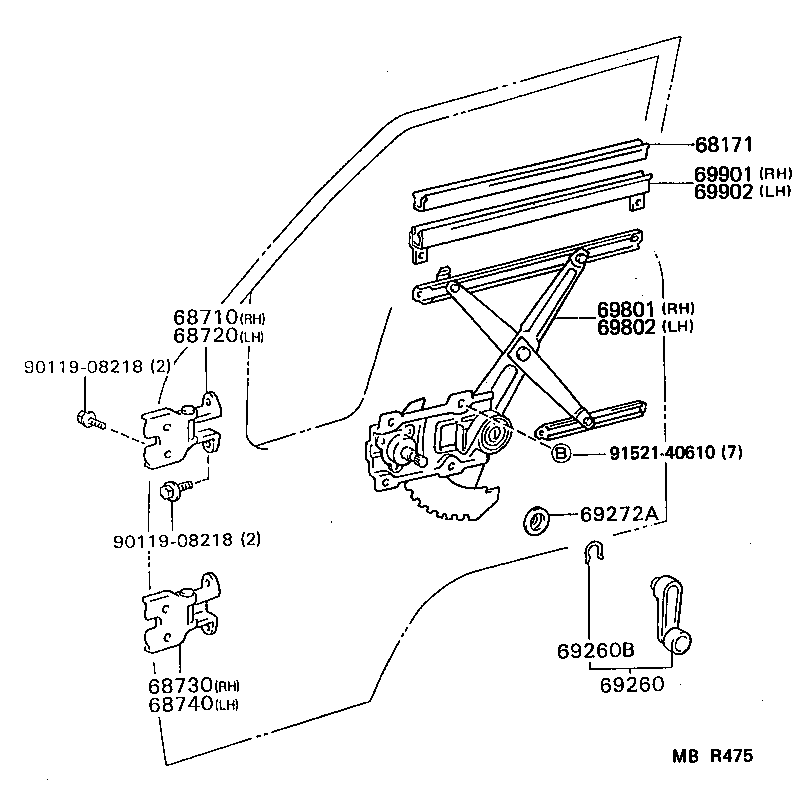

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL | ||||
| 68173-22010 |
LY61 |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-95702 |
LY6#,YY61 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68710-95702 |
LY6#,YY61 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68710-95702 |
LY6#,YY61 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68710-95702 |
LY6#,YY61 |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-1004008 |
LY61 BLUISH GRAY,TRIM1# |
2 | ||
| 69260-1004006 |
LY6#,YY61 BROWN,TRIM4# |
2 | ||
| 69260-10040B1 |
LY61 BLUISH GRAY,TRIM1# |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01002 |
LY6#,YY61 |
2 | ||
| 69272A - PLATE, DOOR WINDOW REGULATOR HANDLE | ||||
| 69272-3001008 |
LY6#,YY61 NATURAL WHITE,TRIM4# |
2 | ||
| 69272-3001008 |
LY61 NATURAL WHITE,TRIM1# |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-95407 |
LY61 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-95409 |
LY61 |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-95404 |
LY61 |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69901-95404 |
LY61 |
1 | ||
| Common parts | ||||
| 90119-08218 | ||||
| 91521-40610 | ||||
